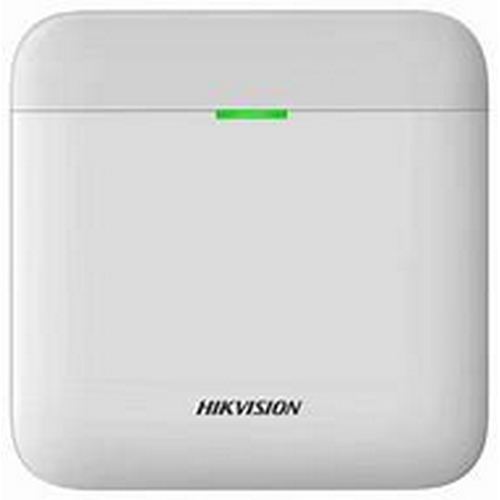

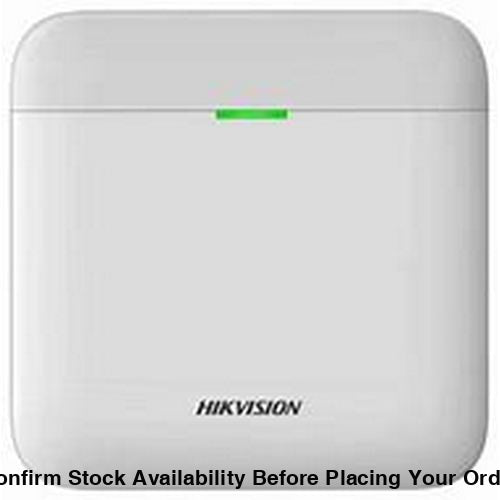

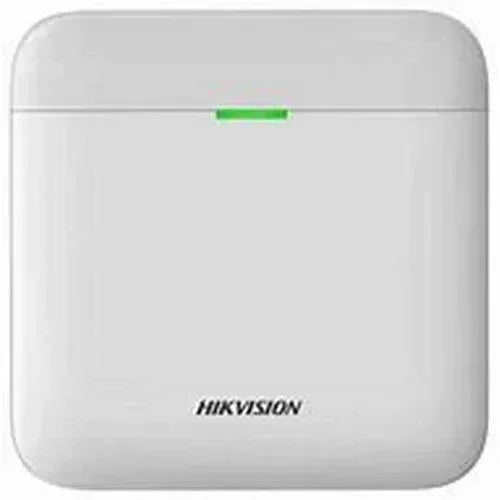

Hikvision AX PRO (868MHz)
Hikvision AX PRO (868MHz)
Regular price
R 3,689.00 ZAR
Regular price
Sale price
R 3,689.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:DS-PWA64-L-WE_C
Hikvision AX PRO (868MHz)
- TCP/IP, Wi-Fi, and GPRS network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless key fobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
- Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-Pro Connect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
-
- Software features
- Diagnostics via the APP or Web Supported
- Installer1
- Installer APP for programming Supported
- Web server for maintenance (offline configuration)Supported
- Wi-Fi standard Supported
- Arm modes Away/Stay
- Firmware upgrade APP/Web Portal
- Admin1
- Wired network Supported
- Programming tools Hik-Connect/Hik-Pro Connect/Web Portal/ IVMS4200/ Convergence Cloud
- Forced arming with open zones Supported
- Memory log stored5000
- User30
- User APP for operating Supported
- Voice prompt Supported
- Area16
- Automatic arm/disarm timers Supported
- Hardware features
- RS232 output Supported
- SIM slot Single
- GPRS on board Supported
- Loudspeaker built in Supported
- Electrical characteristics
- Battery type Built in on board Battery Li
- Power supply Built in power supply
- Operation temperature-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
- Battery life span Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- RF frequency868 Mhz
- Wireless security Frequency Hoping 128 AES Encryption
- Display
- LEDs status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- General
- Dimension(WxHxD)170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
- Shell material Plastic
- Color White
- Weight557.5 g (19.7 oz)
- Device management
- Tag32
- PIR cam Supported
- Zones64 (up to 48 PIRCAMs)
- Keypad8 (including tag reader)
- Wireless sounder4(2 internal+2 external)
- Wireless repeater2
- Keyfob32
- Report method
-
ARC protocol
SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Adem co 685)
Supports video verification and remote control
