DS-PWA96-M-WE_C

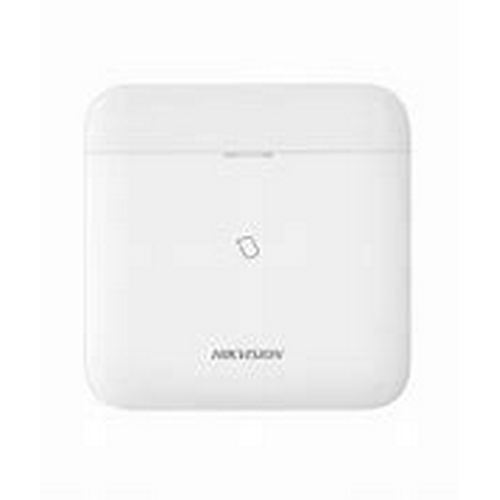

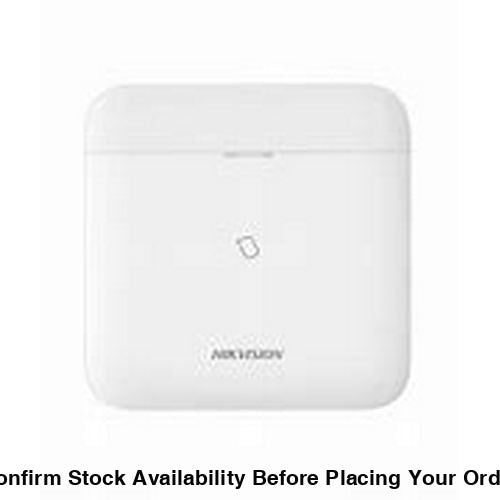

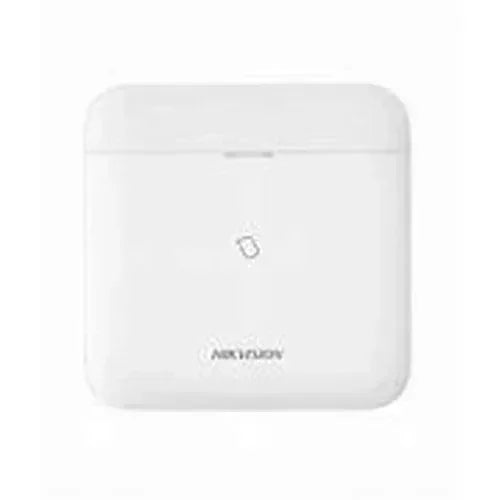

Hikvision AX PRO (868MHz)

  • TCP/IP, Wi-Fi, and 3/4G network
  • New generation wireless protocol: Tri-X/Cam-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless key fobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers and keypads
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-Pro Connect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views live videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Supports LED indicator to indicates system status
  • 4520 mAh lithium backup battery
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
    • Software features
    • Diagnostics via the APP or Web Supported
    • Installer1
    • Installer APP for programming Supported
    • Onboard video clips4
    • Web server for maintenance (offline configuration)Supported
    • Wi-Fi standard Supported
    • Arm modes Away/Stay
    • Firmware upgrade APP/Web Portal
    • Admin1
    • Wired network Supported
    • Programming tools Hik-Connect/Hik-Pro Connect/Web Portal/ IVMS4200/ Convergence Cloud
    • Forced arming with open zones Supported
    • Memory log stored5000
    • User46
    • User APP for operating Supported
    • Voice prompt Supported
    • Area32
    • Automatic arm/disarm timers Supported
    • Hardware features
    • RS232 output Supported
    • SIM slot Dual
    • 3/4G on board Supported
    • Tag reader built in Supported
    • Loudspeaker built in Supported
    • Electrical characteristics
    • Battery type Built in on board Battery Li
    • Power supply Built in power supply
    • Operation temperature-10 °C to +55 °C (please make sure the adapter is connected)
    • Battery life span Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
    • Wireless transmission
    • RF frequency868 Mhz
    • RF method Support
    • Wireless security Frequency Hoping 128 AES Encryption
    • Display
    • LEDs status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
    • General
    • Dimension(WxHxD)170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
    • Shell material Plastic
    • Color White
    • Weight557.5 g (19.7 oz)
    • Device management
    • Tag48
    • PIR cam Supported
    • Zones96 (up to 48 PIRCAMs)
    • Keypad8 (including tag reader)
    • Wireless sounder6 (3 internal+3 external)
    • Wireless repeater4
    • Keyfob48
    • Multi Transmitter6
    • Report method
    • ARC protocol

      SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)

      Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

      Supports video verification and remote control
