IDS-7208HQHI-M1/XT

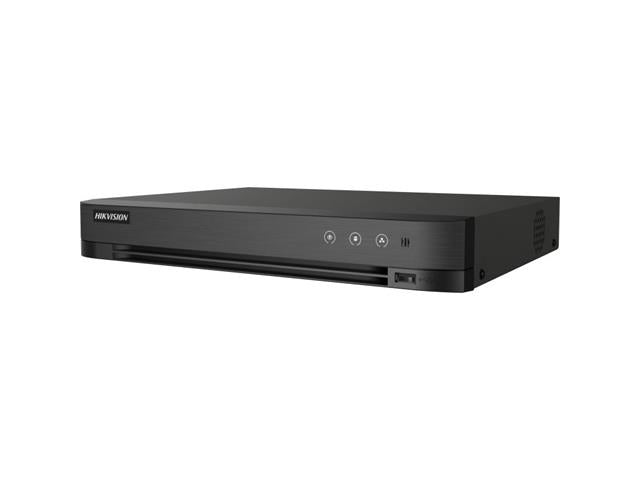

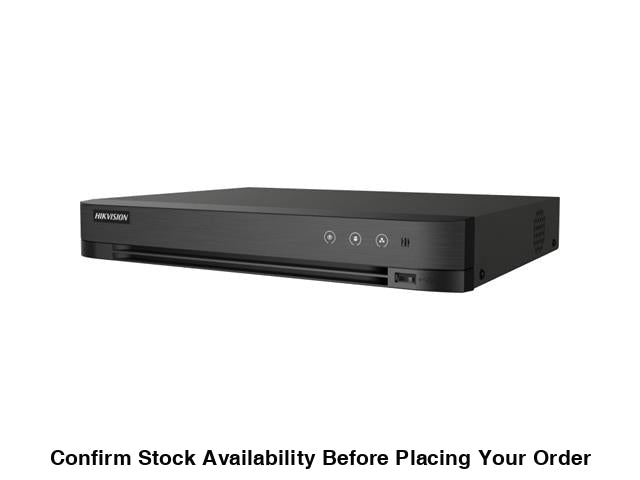

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR

  • 8 channels and 1 HDD 1U Acu Sense DVR
  • Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 4-ch Acu Search Technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K/5M Lite @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 -ch network cameras can be connected
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology
    • Facial Recognition
    • Face Picture Library Up to 16 face picture libraries
    • Face Picture Comparison (Captured from Camera)Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
    • Motion Detection 2.0
    • Human/Vehicle Analysis

      Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

      Quick search by object or event type is supported;

    • Perimeter Protection
    • Human/Vehicle Analysis

      Up to 4-ch

      Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

    • Video and Audio
    • IP Video Input4-ch (up to 12-ch), Up to 6 MP resolution
    • Analog Video Input

      8-ch

      BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

    • HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
    • AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
    • HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
    • CVBS Input PAL/NTSC
    • HDMI Output

      1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

      HDMI/VGA simultaneous output

    • VGA Output

      1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

      HDMI/VGA simultaneous output

    • CVBS Output

      1-ch, BNC (1.0 Vp-p, 75 Ω),

      resolution: PAL: 704 × 576, NTSC: 704 × 480

    • Audio Input

      1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

      8-ch via coaxial cable

      Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.

    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    • Synchronous playback8-ch
    • Recording
    • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding Resolution

      When 1080p Lite mode is not enabled:

      3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

      When 1080p Lite mode is enabled:

      3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

    • Frame Rate

      Main stream:

      When 1080p Lite mode not enabled:

      For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

      For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

      For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

      For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

      For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

      When 1080p Lite mode enabled:

      3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

      Sub-stream:

      WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

    • Video Bitrate32 Kbps to 6 Mbps
    • Dual-stream Support main stream or sub stream
    • Stream Type Video, Video & Audio
    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    • Network
    • Remote Connection64
    • Total Bandwidth96 Mbps
    • Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    • Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
    • Auxiliary Interface
    • Serial InterfaceRS-485 (half-duplex)
    • SATA1 SATA interface, up to 10 TB capacity for each disk
    • Alarm In/Out N/A (optional to support)
    • USB Interface

      Front panel: 1 × USB 2.0;

      Rear panel: 1 × USB 2.0

    • General
    • Power Supply12 VDC, 1.5 A
    • Consumption≤ 18 W (without HDD)
    • Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
    • Weight≤ 1.78 kg (3.9 lb) (without HDD)
View full details
