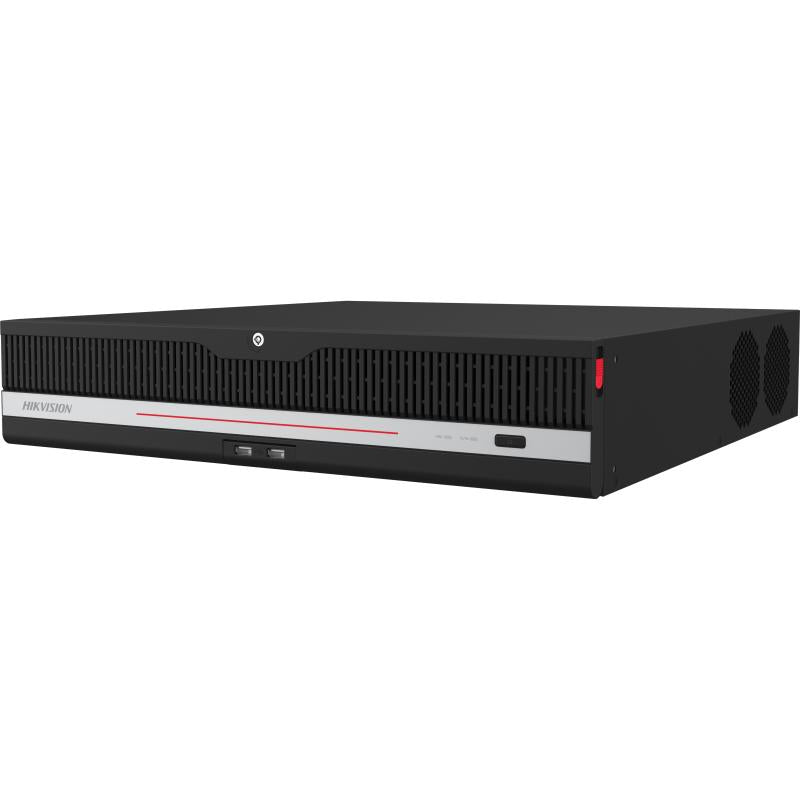

Hikvision 64-Channel 2U 8K Deep in Mind NVR

Name: Hikvision 64-Channel 2U 8K Deep in Mind NVR
Brand: Sensor Security
SKU: iDS-9664NXI-M8/X(STD)
Price: 99995.00 ZAR
Availability: InStock

R 99,995.00 ZAR

Sale Sold out

Shipping calculated at checkout.

Quantity

Master Card
Visa Card
Visa Electron

Maestro Card
Instant Eft
MobiCred

SKU:iDS-9664NXI-M8/X(STD)

Hikvision 64-ch 2U 8K Deep in Mind NVR

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 64-ch IP cameras can be connected
Intelligent analytics based on deep learning algorithm
Up to 24-ch perimeter protection
Up to 16-ch facial recognition for video stream, or up to 48-ch facial recognition for face picture
Up to 12-ch video structuralization
Up to 8-ch IP speakers can be connected
- Intelligent Analytics
- AI by NVR Facial recognition, perimeter protection, video structuralization, Acu Search
- AI by Camera Facial recognition, perimeter protection, video structuralization, Acu Search, motion detection2.0, ANPR, people counting, VCA
- Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Recognition
- Facial Detection and Analytics Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison (Captured from Camera)
  48-ch (24-ch for each engine);

  Comparison speed: 48 pictures per second
- Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
- Acu Search
- By Camera
  All channels ,up to 691,200 targets/day

  The camera should enable Acu Search function
- By NVRup to 8-ch,up to 691,200 targets/day
- Perimeter Protection
- By NVR
  perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP

  perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
- By Camera peri meter protection powered by Large Model with Acu Sense cameras: All channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Face Picture Library Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison
  16-ch;

  Comparison speed: 32 pictures per second
- ANPR
- By Camera All channels
- Plate Attributes Plate number, license plate color, license plate type
- Vehicle Attributes Vehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input
  64-ch

  Up to 32 MP resolution
- Incoming Bandwidth400 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output
  4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- Incoming Bandwidth (RAID Mode)400 Mbps
- Outgoing Bandwidth (RAID mode)400 Mbps
- VGA 1 Output1920 × 1080/60Hz
- VGA 2 Output1920 × 1080/60Hz
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
- Synchronous Playback16-ch
- Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Remote Connection128
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access Protocol ONVIF(Version 2.5), RTSP
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
- Auxiliary Interface
- Ctrl 12V
  Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- SATA8 SATA interfaces; 3.5-inch HDD
- eSATA1 eSATA interface
- Capacity Up to 16 TB capacity for each HDD
- Serial Interface1 RS-232, 1 RS-485 (full-duplex)
- USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/9
- General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 50 W (without HDD)
- Working Temperature-10 to 55°C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)442 × 458 × 93 mm ( 17.4"× 18.0" × 3.7")
- Weight≤ 10 kg (without HDD, 28.7 lb.)
- Certification
- Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CE
  EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
