DS-KH6320-WTE1_C

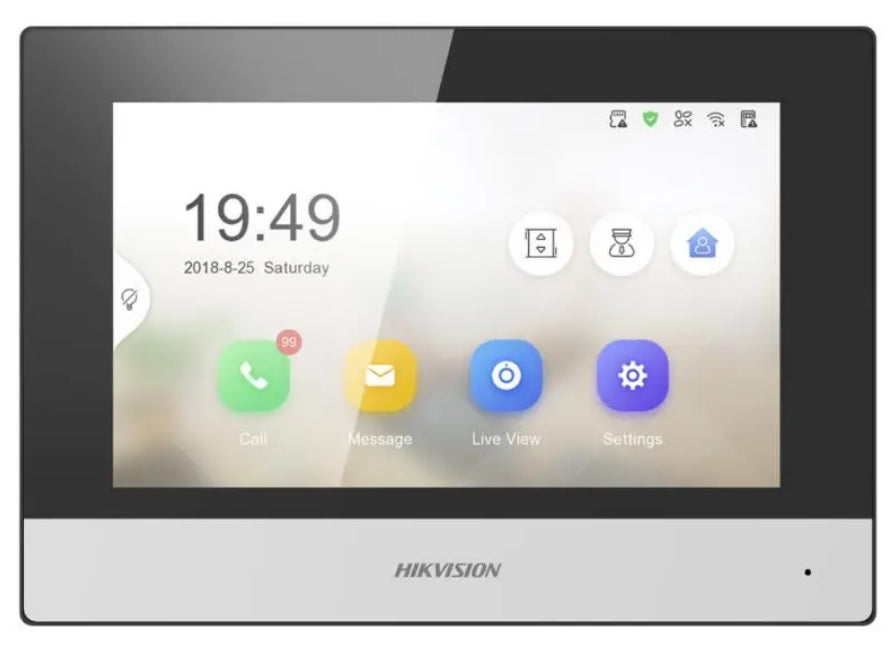

Hikvision 7-Inch intercom monitor  WiFi  12VDC/POE

  • 7-inch TFT touch screen with 1024 × 600 resolution
  • Convenient Hik-Connect APP Mobile Control
  • Receive calls, open the door and live view remotely
  • Easy to use without PC
  • Easy wizard for quick set up
  • Configure the whole system on one touch screen
  • Live view of the door station and cameras in public areas
  • Support voice messages when no response from the indoor station
  • Receive alarms by linkage with a alarm system and notify the center to handle in time
  • Elevator access control
    • System parameters
    • Operation system Linux
    • ROM32 MB
    • RAM128 MB
    • Processor Embeded high performance processor
    • Display parameters
    • Screen size7-inch
    • Operation method Capacitive touch screen
    • Type Colorful TFT
    • Resolution1024 × 600
    • Video parameters
    • Lens/
    • Resolution/
    • FOV/
    • Wide dynamic range (WDR)/
    • Video compression standard/
    • Focal length/
    • Audio parameters
    • Audio input1 built-in omnidirectional microphone
    • Audio compression standardG.711 U、G.711 A、G.722.1
    • Audio output1 built-in loudspeaker
    • Audio compression bitrate64 Kbps
    • Audio quality Noise suppression and echo cancellation
    • Volume adjustment Adjustable
    • Capacity
    • Message capacity

      TF card insert

      ted: 200 captured pictures, 200 alarm records

      Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

    • Notice capacity200
    • Linked indoor extensions capacity16
    • Linked door phone capacity17
    • Linked network camera capacity16
    • Network parameters
    • Network protocol TCP/IP, SIP, RTSP
    • Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
    • Bluetooth/
    • 3G/4G/
    • Zigbee/
    • Device interfaces
    • Alarm input8
    • Network interface1 RJ-45 10/100 Mbps self-adaptive
    • TAMPER/
    • RS-4851 RS-485 (Half duplex)
    • USB/
    • TF card Support TF card, up to 128 G
    • Alarm output2
    • Lock control2 relays, Max. 30 VDC 0.3 A
    • General
    • Button/
    • Installation Surface mounting
    • Indicator/
    • Weight

      Net weight: 355 g (0.8 lb)

      Gross weight: 683 g (1.5 lb)

    • Protective level/
    • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working humidity10% to 90% (no-condensing)
    • Dimension (W × H × D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
    • Battery/
    • Application environment Indoor
    • Power consumption≤ 5 W
    • Language English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
