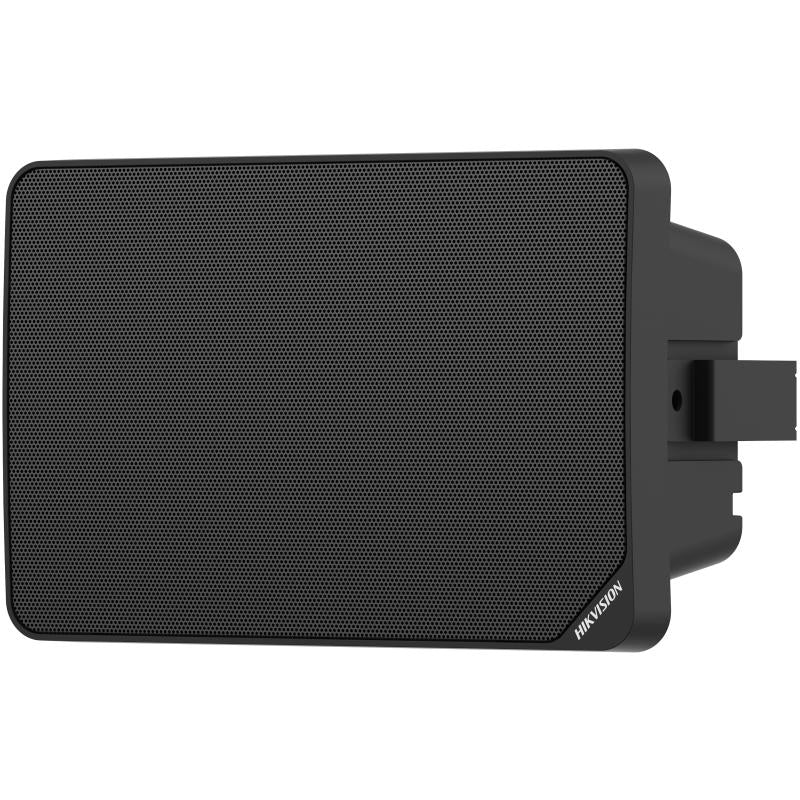

Hikvision 20W analogue cabinet speaker

Hikvision 20W analogue cabinet speaker

R 1,418.00 ZAR
R 1,418.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-QAE0120G1R
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 20W analogue cabinet speaker

Hikvision DS-QAE0120G1R: Hikvision 20W analogue cabinet speaker.

Key Features

  • 5.25′′ × 1
  • Rated Power: 70 V: 5 W/10 W/15 W/20 W, 100 V: 5 W/10 W/15 W/20 W
  • Sensitivity(1 m, 1 W): 90 dB ± 3 dB
  • Max. SPL: 103 dB
  • Frequency Response: 130 Hz to 17.5 kHz

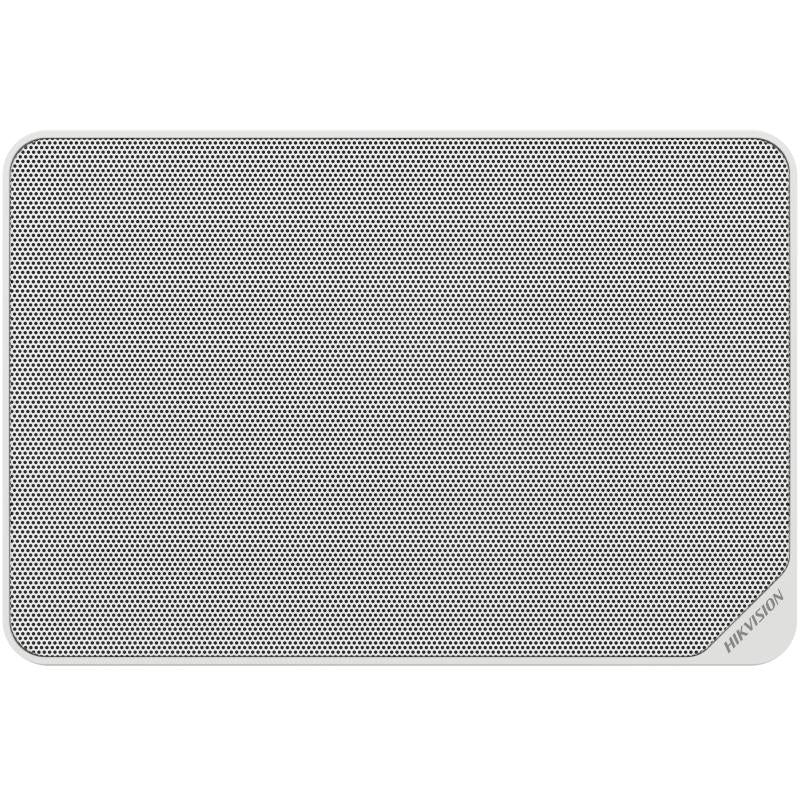

  • White or black appearance optional

Specifications

Speaker
Rated Power 70 V: 5 W/10 W/15 W/20 W 100 V: 5 W/10 W/15 W/20 W
Impedance 8 Ω
Max. Acoustic Pressure 103 dBSPL
Sensitivity(1 m, 1 W) 90 dB ± 3dB
Direction All directions
Frequency Response 130 Hz to 17.5 kHz
Speaker Unit 5.25′′ × 1
Coverage Angle Horizontal: 135° Vertical: 130°
Audio In Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 Ω × 1
Material Main body&Front cover：plastic, bracket: metal
Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity ＜90% (No condensation)
Dimension 268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
Package Dimension 340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
Color White or black appearance optional
With Package Weight Approx. 2 kg (4.4 lb.)
Packing List Device × 1 U-shaped bracket × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1

Product Details

  • Model: DS-QAE0120G1R
  • Brand: Hikvision
  • Hikvision model reference: DS-QAE0120G1R
