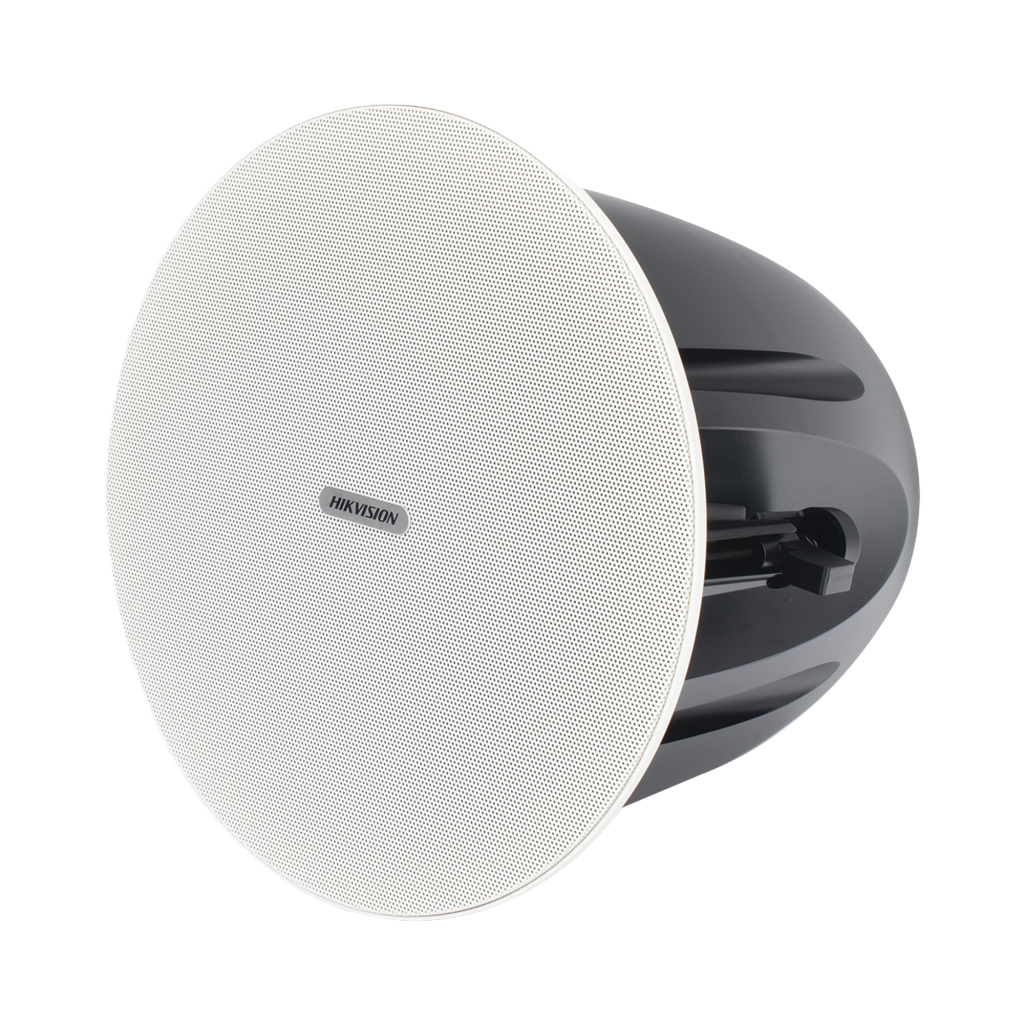

Hikvision 10W analogue in-ceiling speaker

Hikvision 10W analogue in-ceiling speaker

R 1,473.00 ZAR
R 1,473.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-QAZ0610G1
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 10W analogue in-ceiling speaker

Hikvision DS-QAZ0610G1: Hikvision 10W analogue in-ceiling speaker.

Key Features

  • 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
  • Rated Power: 100V: 10W/5W/2.5W, 70V：10W/5W/2.5W/1.25W
  • Sensitivity(1 m, 1 W): 89 dB
  • Max. SPL: 98 dB
  • Frequency Response: 120 Hz to 20 kHz
  • White or black appearance optional

Specifications

Speaker
Impedance 8Ω
Rated Power 10W
Total Harmonic Distortion (THD) ≤1%
Sensitivity(1 m, 1 W) 89dB
Max. Acoustic Pressure 98dB
Frequency Response 120Hz~20kHz(-10dB)
Speaker Unit 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
Coverage Angle Conical Coverage: 88°
Audio In Constant voltage input: 100 V/Constant voltage input: 70 V/Constant impedance input: 8 Ω
Voltage Input 100V: 10W、5W、2.5W 70V：10W、5W、2.5W、1.25W 8Ω
Material Main body: PC Base: ABS
Mounting Hole Dimension Ø225 mm (8.86")
Dimension Ø242.78 mm × 192.7 mm (9.56" × 7.59")
Language 5 languages: English, French, Spanish, German, Italian
Package Dimension 305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")
With Package Weight Approx. 2.9 kg (6.49 lb.)
Packing List Device × 1 Regulatory Compliance and Safety Information × 1
Operating Temperature -10 °C to 45 °C
Operating Humidity ＜90% (No condensation)
Mounting Depth 240 mm (9.45")

Product Details

  • Model: DS-QAZ0610G1
  • Brand: Hikvision
  • Hikvision model reference: DS-QAZ0610G1
