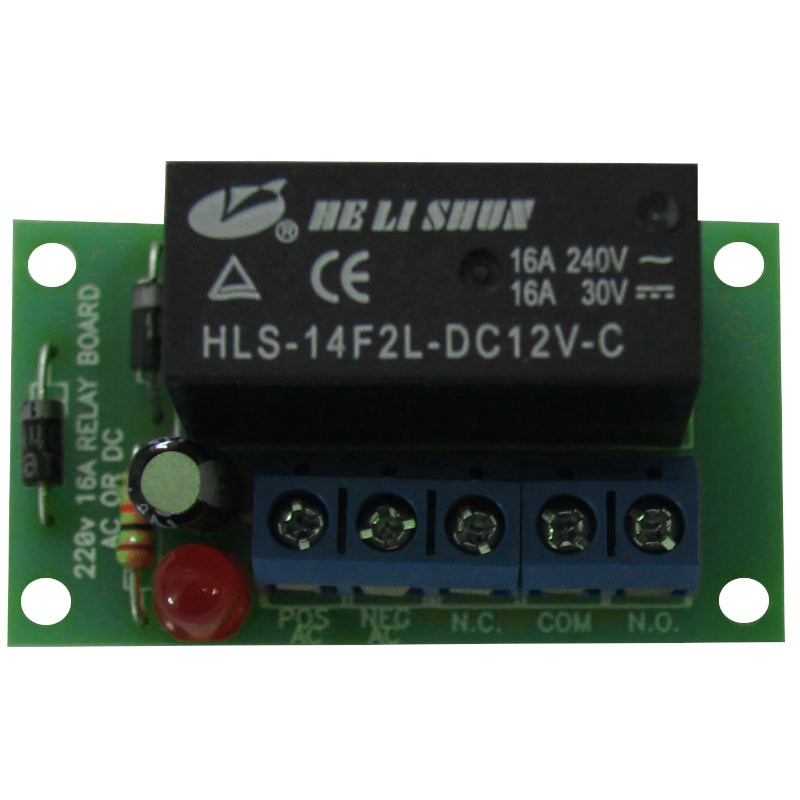

12V HDS Pole Relay
12V HDS Pole Relay
No reviews
Regular price
R 137.00 ZAR
Regular price
Sale price
R 137.00 ZAR
Taxes included.
Shipping calculated at checkout.
Quantity
SKU:RELAY3-HD
Couldn't load pickup availability
- *Please Confirm Stock Availability Before Placing Your Order*
- Product images Are for Illustrative Purposes Only
- Honesty And Satisfaction Guaranteed
- Secure & Safe Online Payments
12V HDS Pole Relay is a 220v Relay used with alarm systems and PGM outputs.
PGM outputs 12V with only a few milliamps unless otherwise specified. This helps to connect radio transmitters, led lights or as required
Application:
To switch high voltage/current device from a low voltage / current trigger.
Wiring Diagram:
+12v DC or 16v AC
- 12v DC or 16v AC
N.C. relay contact
Com relay contact
N.O. relay contact
Specifications:
12v DC or 16v AC operation.
Normally open and closed potential free relay contacts.
Low current 38mA when energised.
Current rating 10A@ 220v AC.
LED indication.
Reverse polarity protection.
Physical size: 37mm x 26mm.
PGM outputs 12V with only a few milliamps unless otherwise specified. This helps to connect radio transmitters, led lights or as required
Application:
To switch high voltage/current device from a low voltage / current trigger.
Wiring Diagram:
+12v DC or 16v AC
- 12v DC or 16v AC
N.C. relay contact
Com relay contact
N.O. relay contact
Specifications:
12v DC or 16v AC operation.
Normally open and closed potential free relay contacts.
Low current 38mA when energised.
Current rating 10A@ 220v AC.
LED indication.
Reverse polarity protection.
Physical size: 37mm x 26mm.
