12V Single Pole Relay

12V Single Pole Relay

R 84.00 ZAR
R 84.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

RELAY1
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

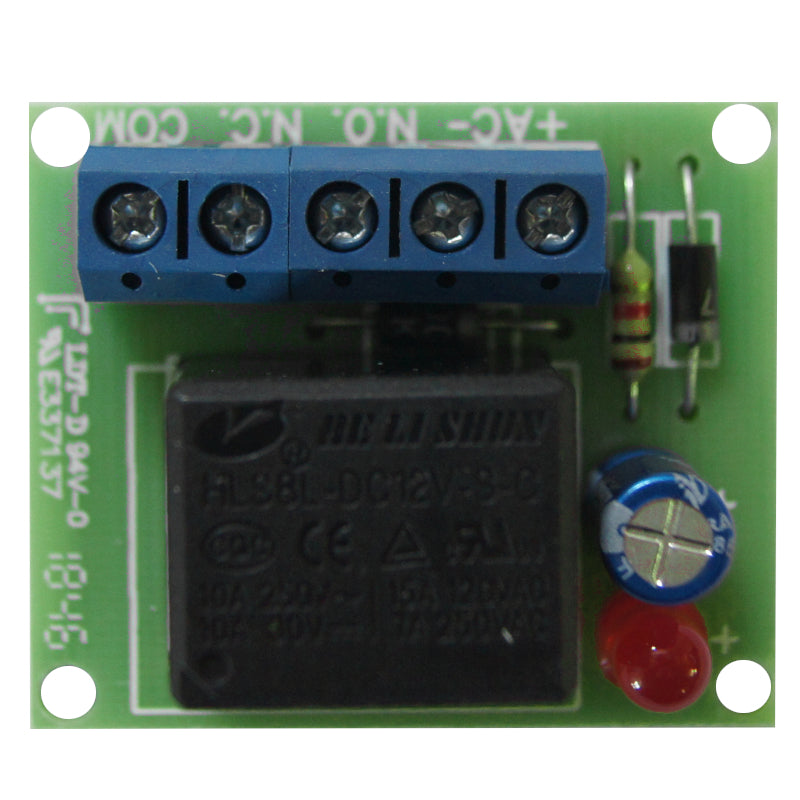

12V Single Pole Relay with led onboard used with alarm systems and PGM outputs
PGM outputs 12V with only a few milliamps unless otherwise specified. This helps to connect radio transmitters, led lights or as required

Application:
To switch high voltage/current device from a low voltage / current trigger.

Contact Block:
Common relay contact
N.C. relay contact
N.O. relay contact
-12v DC or 16v AC
+12v DC or 16v AC

Specifications:
12v DC or 16v AC operation.
Normally open and closed potential free relay contacts.
Low current 20mA when energised.
Switching current rating 10A@ 12v DC.
LED indication.
Reverse polarity protection.
Back EMF protection.
Physical size: 34mm x 29mm
