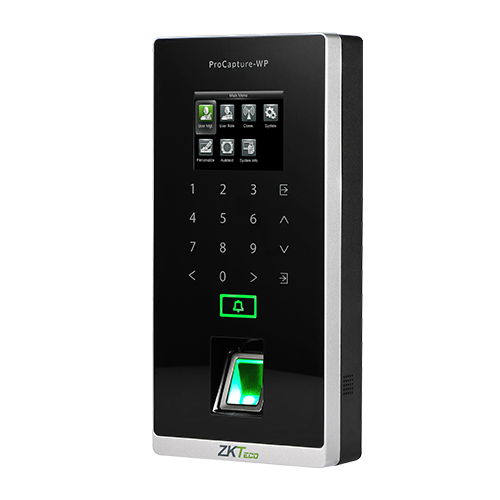

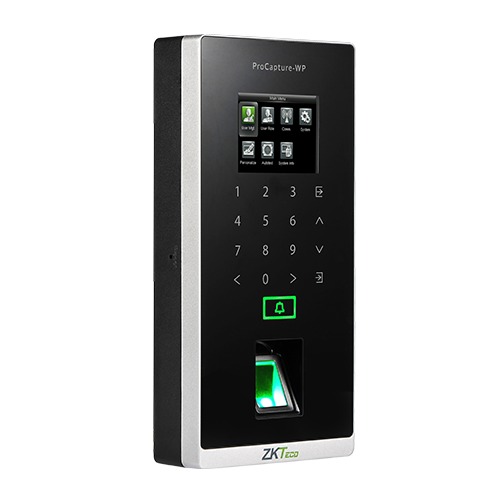

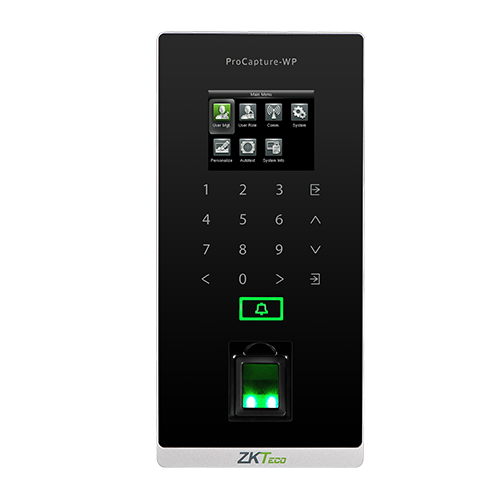

Dahua ZKTeco Water-Proof Fingerprint Access Control Terminal - RFID

Dahua ZKTeco Water-Proof Fingerprint Access Control Terminal - RFID

ProCapture-WP is an access control terminal applying the most advanced Z-ID fingerprint sensor. Its outstanding performance provides a high identification rate towards dry, wet and rough fingers . The fingerprint verification speed has been dramatically increased by its optimized fingerprint algorithm and the brand new ZMM220 hardware platform, equipped with a fast 1.2GHz processor.

• Fingerprint Capacity

  20,000

• Card Capacity

  10,000

• Transaction Capacity

  100,000

• Communication

  TCP/IP / RS485 (For Slave Reader) / Wiegand Input / Output / Security Relay Box

• Access Control Interface

  Lock Relay Output / Lock Relay Output / Exit Button / Door Sensor / Doorbell Output

• Ingress Protection Rating

  IP65

• Hardware

  1.2GHz High Speed CPU / Memory 128MB RAM / 256MB Flash / Z-ID Fingerprint Sensor / 2.4 Inches TFT-LCD Screen / 125KHz EM Reader / IC Card (Optional) / Hi-Fi Voice & Indicator / Anti-dismantle Alarm / Touch Keypad

• Standard Function

  Access Levels / Groups / Holidays / DST / Bell Schedule / Duress Mode / Anti-Passback / Record Query / Custom Wallpaper & Screen Saver

• Special Function

  Multiple Verification Modes / ZK Encrypted Card (Optional) / Fingerprint Card (Optional)

• Compatibility

  Wiegand Slave Reader / RS485 FP Slave Reader / ZKBioSecurity Software

• Operating Temperature

  -10°C ~ 50°C

• Dimension

  202.30 x 96.80 x 35.00mm

• Algorithm

  ZKFinger V10.0

• Fingerprint

  FAR≤0.0001%, FRR≤0.01%

• Operating Voltage

  12V DC

• Current Draw

  < 500mA
