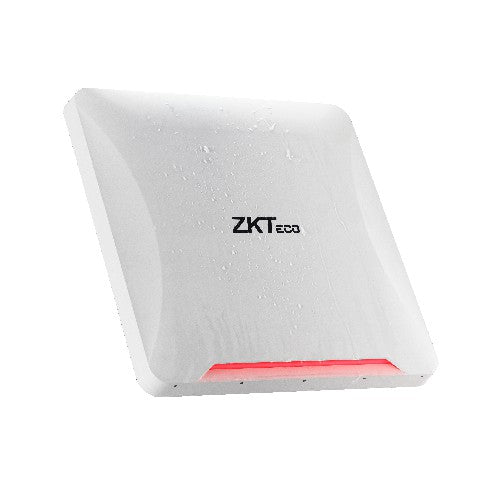

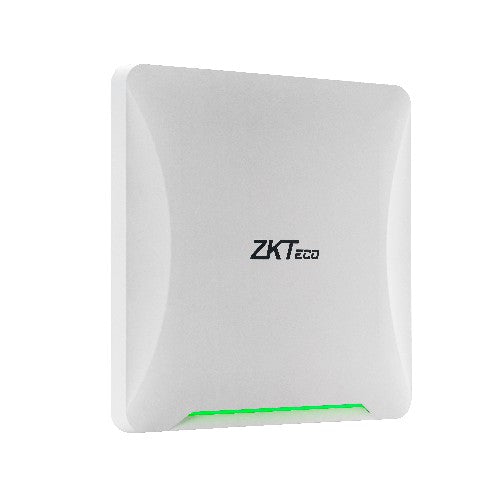

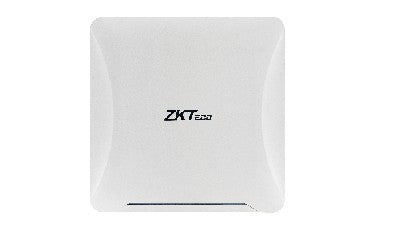

Dahua ZKTeco UHF5E-Pro Long Range Wiegand Reader

Dahua ZKTeco UHF5E-Pro Long Range Wiegand Reader

UHF5 Pro and UHF10 Pro are ZKTeco's third-generation UHF readers, with much stable performance, longer reading distance, and faster recognition speed. The UHF reader is equipped with the passive UHF card function, which could be widely used in Vehicle Management and Personnel Management applications. The product also meets the CE, FCC technology requirements. Features · Support two working modes: Trigger to Read & Always Read (Default) · Support different wiegand data output (Wiegand 26 by default) · LED at the bottom of readers indicating the reading status (7-color indicators: red, green, blue, yellow, cyan, purple, white) · Multiple communication modes, supporting Wiegand and RS485 · Protection level of IP66

• Dimensions

  308.5 * 308.5 * 67.5

• Weight

  1.8kg

• Power

  1.2 - 4.2W

• Frequency

  E: 865MHz - 868MHz
  F: 902MHz - 906MHz (adjustable)

• Communication Interface

  Wiegand, RS485, USB configuration parameters (Wiegand, RS485 requires one of two options)

• Interface Protocol

  EPC global UHF Class 1 Gen 2 / ISO 18000-6C

• Working Mode

  Read Always (Default) and Read by Trigger

• Output Power

  19dBm - 30dBm

• Protection Level

  IP66

• Working Voltage

  DC 9 - 15V

• Storage Temperature and Humidity

  -20°C - 80°C, < 85%

• RS485 Communication

  Optional baud rate (9600, 19200, 38400, 57600, 115200), the default is 115200
