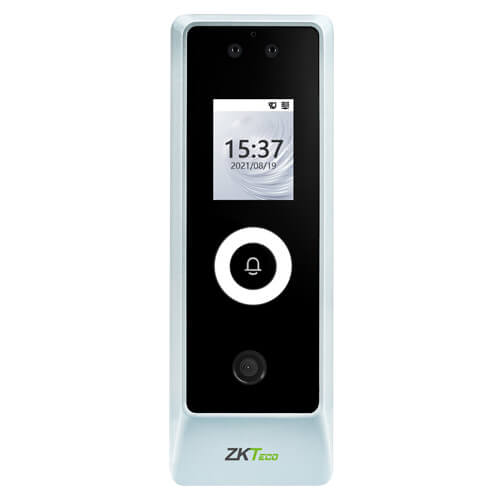

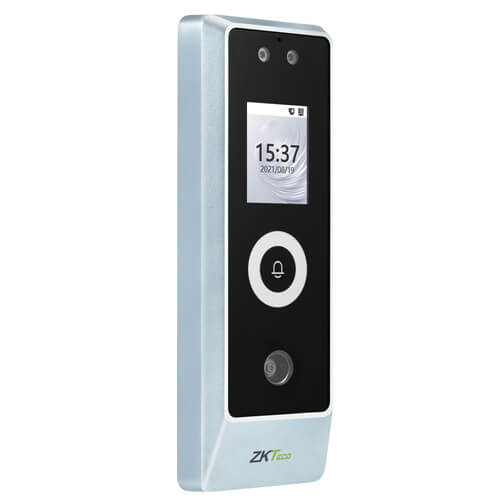

Dahua ZKTeco ProMA Stand Alone Access Control Device

Dahua ZKTeco ProMA Stand Alone Access Control Device

ProMA is a high-end outdoor multi-biometric access control standalone terminal built with ultra-robust aluminum alloy casted casing.

ProMA series enhance its protection level to reach water and dust proof standard (IP66) and vandal proof standard  (IK07). There are three models under ProMA series, which have equipped with different authentication combinations,  facial recognition, fingerprint recognition and multi-tech RFID recognition, named as ProMA-QR (Face, QR code, RFID),  ProMA-RF (Face+RFID), ProMA (Face, Fingerprint, RFID). Additionally, the latest touchless palm recognition is also available in this terminal as a customized feature.

Despite its compact size, these terminal’s authentication template capacity is top notch in the industry, which supports  up to 10,000 fingerprint / 30,000 face / 5,000 palm / 50,000 RFID. Besides, the authentication speed of these terminals  is stunning, facial recognition speed of less than 0.3 sec per face, touchless palm recognition performed in 0.35 per hand, and completed RFID recognition in 0.2 sec, all these incredible features making them a perfect choice for most  application scenes. The series supports the ZKTeco PUSH communication protocol and fully integrates with ZKBio CVSecurity and the latest  hybrid biometric technology.

• Capacity

  Fingerprint: 10,000 (Only ProMA)
  Face: 30,000 (Optional: 50,000 only ProMA-QR & ProMA-RF)
  Palm: 5,000(Customized)
  Cards: (Optional: 100,000 only ProMA-QR & ProMA-RF)
  Transactions: 500,000

• Hardware

  1.0GHz Quad Core CPU
  Memory 1G RAM / 8G Flash
  BioID+ Fingerprint Sensor (Available on ProMA only)
  QR code Sensor (Available on ProMA-QR only)
  2.0 Inches color TFT Monitor
  Hi-Fi Voice & Indicator Tamper Switch Alarm

• Optional Functions

  Palm recognition
  PoE IEEE 802.3af/ at(external)
  HID Proxy / iClass / multi-tech Card module
  Scramble QR code recognition (Supports: PDF417, Data Matrix, MicroPDF417, Aztec,
  available on ProMA-QR only)

• Communication

  1* TCP/IP ( TLS1.2, AES-256 end to end secured communication channel)
  1* Wiegand input/Output
  1*Standard RS485 / OSDP V2.1.7 over RS485 (AES-128, OSDP V2.1.7 Secured Channel)

• Standard Function

  On-board Web server function
  Access Levels / Groups / Holidays
  DST / Bell Schedule /14-digit User ID
  Duress Mode / Tamper Switch Alarm, Multiple Anti-Passback

• Access Control Interface

  1* Lock Relay Output
  1* Alarm Output / Auxiliary Input
  1* Exit Button / Door Sensor
  1* Doorbell Output

• Compatibility

  Security Relay Box: DM10
  Wiegand / OSDP/ RS485 / RS232 Slave Reader with FP / RFID / QR-code
  Software: ZKBio CVSecurity /ZKBioTalk
  Mobile App: ZSmart
  SIP Protocol: VT07-B01

• Special Functions

  IP66 (water & dust proof)
  IK07 (vandal proof)
  ≤0.3s High Speed Facial Recognition
  Fully complied with ZKCSBL (ZKTeco Cyber Security Base Line)
  Video intercom
  ONVIF Protocol (Compatible with Pro le S, Pro le T, Pro le G, Pro le C, Pro le Q & Pro le A)

• Additional Info

  ZKFace v3.9& ZKFinger v10.0
  ZKPalmVein12.0 Algorithms
  Operating Temperature: -26 °C to 55 °C (-14.80°Fto 131°F)
  Operating Humidity: ≤93%RH
  Storage Temperature: -30 °C to 65 °C (-22°F to 149°F)
  Storage Humidity: ≤93%RH
  Dimensions(W*H*D): 68.7*194.7*28.3mm
  Heavy duty aluminium alloy casing

• RFID Module

  ID: EM05
  IC: IC08
  ID&IC: B133
  ID&IC&HID Prox / HID iclass: MTR30
  BLE / NFC(coming soon)

• Power

  Operating Voltage: 12V DC
  Current Draw: < 550mA
