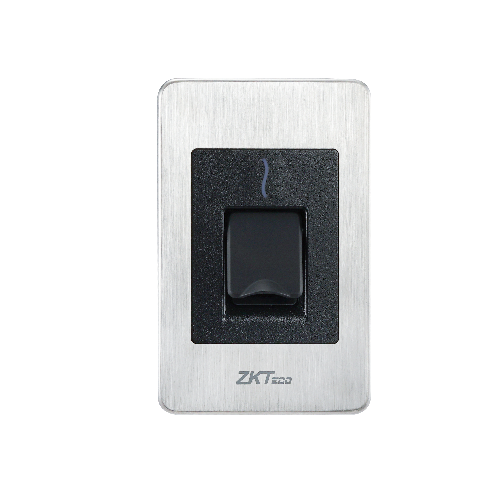

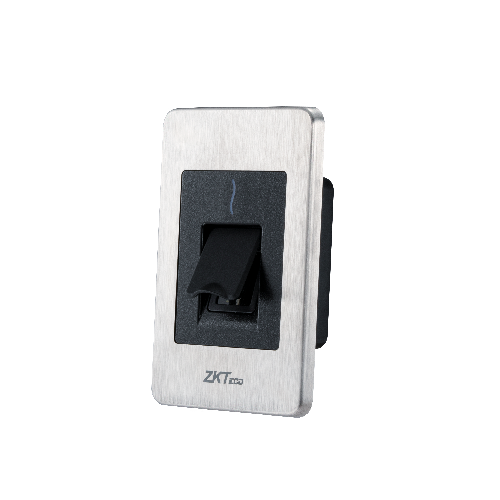

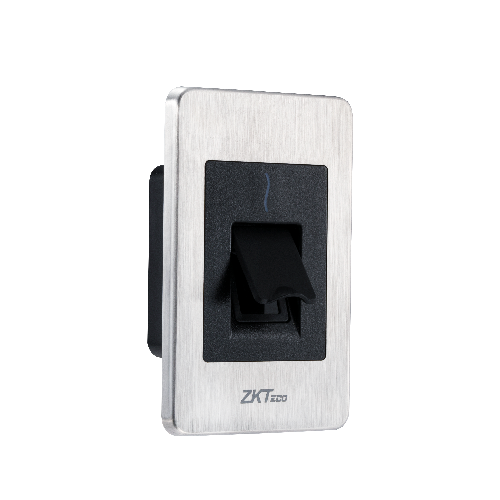

Dahua ZKTeco FR1500-S Slave Fingerprint Reader

Dahua ZKTeco FR1500-S Slave Fingerprint Reader

Features

• Sensor: Z-ID Fingerprint Sensor

• Single gang Standard junction box installation.

• RS485 Communication Interface.

 • Stainless Steel Front casing. • Protection level of IP65; fully dust tight and resistant to water splashes from any direction.

• Flush-Mounted Design for neat installation.

• Operating Temperature

  -10°C to 45°C

• Operating Humidity

  20% to 95%

• Dimension

  121.3 × 77.3 × 38 (mm) (L*W*H)

• Algorithm Version

  ZKFinger V10.0

• Net Weight

  14.2g

• Gross Weight

  24.4g

• Power Supply

  DC 12V

• Power Consumption Under Stand-by Mode

  12V * 60mA = 0.72W

• Peak Current of Fingerprint Scanning

  140mA

• Hardware

  CPU of 1.0GHz, Z-ID Sensor, Buzzer Prompt, Three-color Indicator

• Compatibility

  inBio / inBioPro Controllers, Standalone Fingerprint Devices

• Standard Functions

  125KHz RFID Card

• Optional Functions

  125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card

• Communication

  RS485
