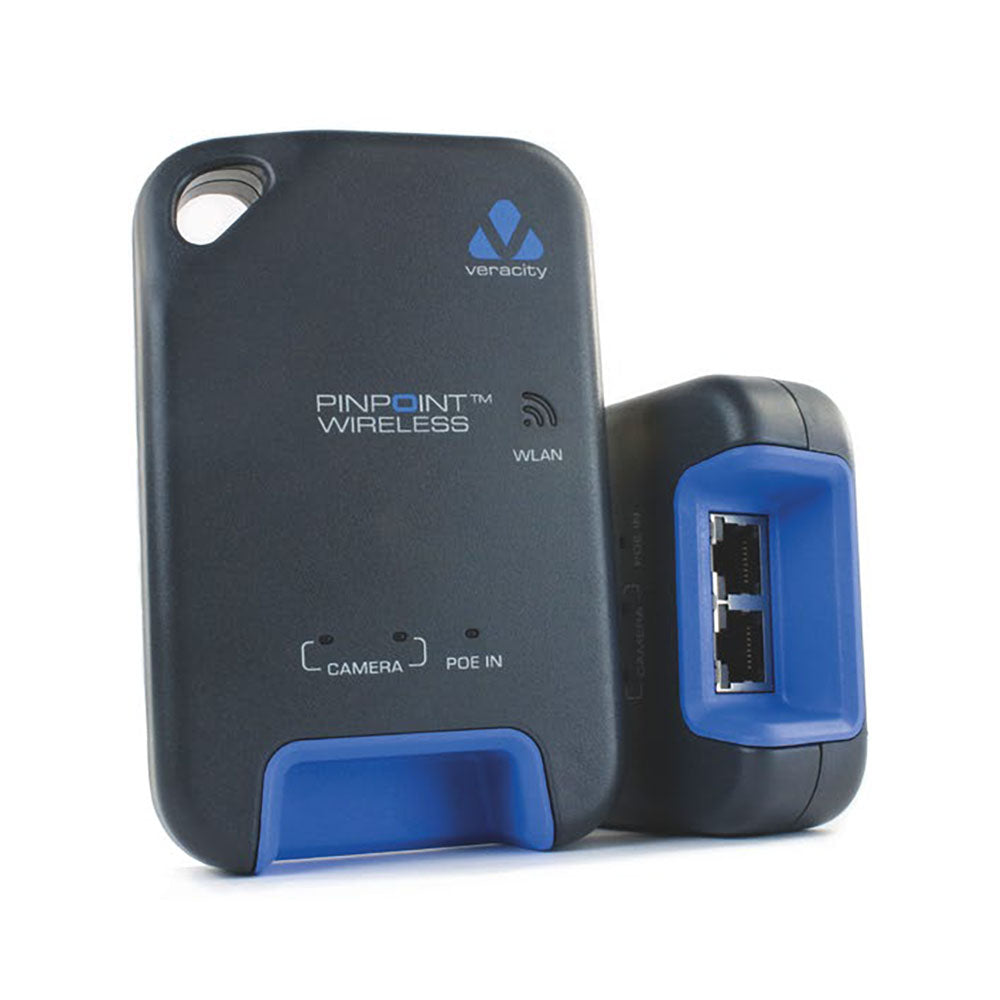

VERACITY VAD-PPW PINPOINT WIRELESS ADAPTER TOOL FOR IP CAMERA INSTALLATION

FEATURES • Local Camera Viewing - View live IP camera images on a smartphone, tablet or laptop directly at the installation location • Precise Camera Adjustment - Quickly fine-tune lens focus and viewing angles for accurate camera positioning • PoE Powered - Uses Power over Ethernet from the network, eliminating the need for a local power source • Faster Installation - Speeds up installation and improves efficiency while reducing time spent on site • Compact with Status LEDs - Neat, portable design with front status LEDs for clear operational feedback • Quick Install and Removal - Installs in seconds and disconnects just as quickly for convenient use during setup SPECIFICATIONS POWER • Type: Device is Powered via Passthrough PoE • Consumption: <2W in Normal Use NETWORK WIRED NETWORK INTERFACE • PoE-In Port: PoE Only – No Data Connection • PoE-Out Port: 10Base-T / 100Base-TX IP SETTING • Automatic or Manual Configuration of IP Address (IPv4) WIRELESS NETWORK INTERFACE • IEEE 802.11b/g/n/ac • 2.4GHz b/g/n (Default) – Channels 1, 6 or 11 • 5.0GHz a/ac/n – Channels 36, 40 or 44 WIRELESS SSID • User Configurable WIRELESS SECURITY • WPA2-PSK with User Configurable Password LED INDICATORS AND CONNECTORS PoE STATUS INDICATOR • Red LED Indicates ON • Flash Indicates Error • Off Indicates No PoE NETWORK PORT LEDs • Green: Link Speed • Orange: Network Activity WIRELESS INDICATOR • Blue: Wireless Link ON • Flash Indicates Booting Up NETWORK CONNECTORS • 2× RJ45 • PoE In • PoE Out (To Camera) COMPATIBILITY CAMERA DISCOVERY • Automatic Camera Discovery Using Bonjour or WS-Discovery (ONVIF) SUPPORTED IP CAMERAS • All IP Cameras Supporting Live Viewing via Browser on Smart Device or with RTSP URL Address PHYSICAL / ENVIRONMENTAL ENCLOSURE TYPE • High Impact ABS LANYARD • Hooks onto PINPOINT Wireless with Carabiner – Safety Breakaway Clasps DIMENSIONS (L × W × H) • 128 × 82 × 28mm WEIGHT • 128g OPERATING TEMPERATURE • -10~70°C RELATIVE HUMIDITY • up to 85%, Non-Condensing COMPLIANCE • EN 55032 Class A • FCC Part 15 Subpart B Class A • IEC/EN/UL 60950-1 • CE • UKCA • RoHS • REACH • WEEE
