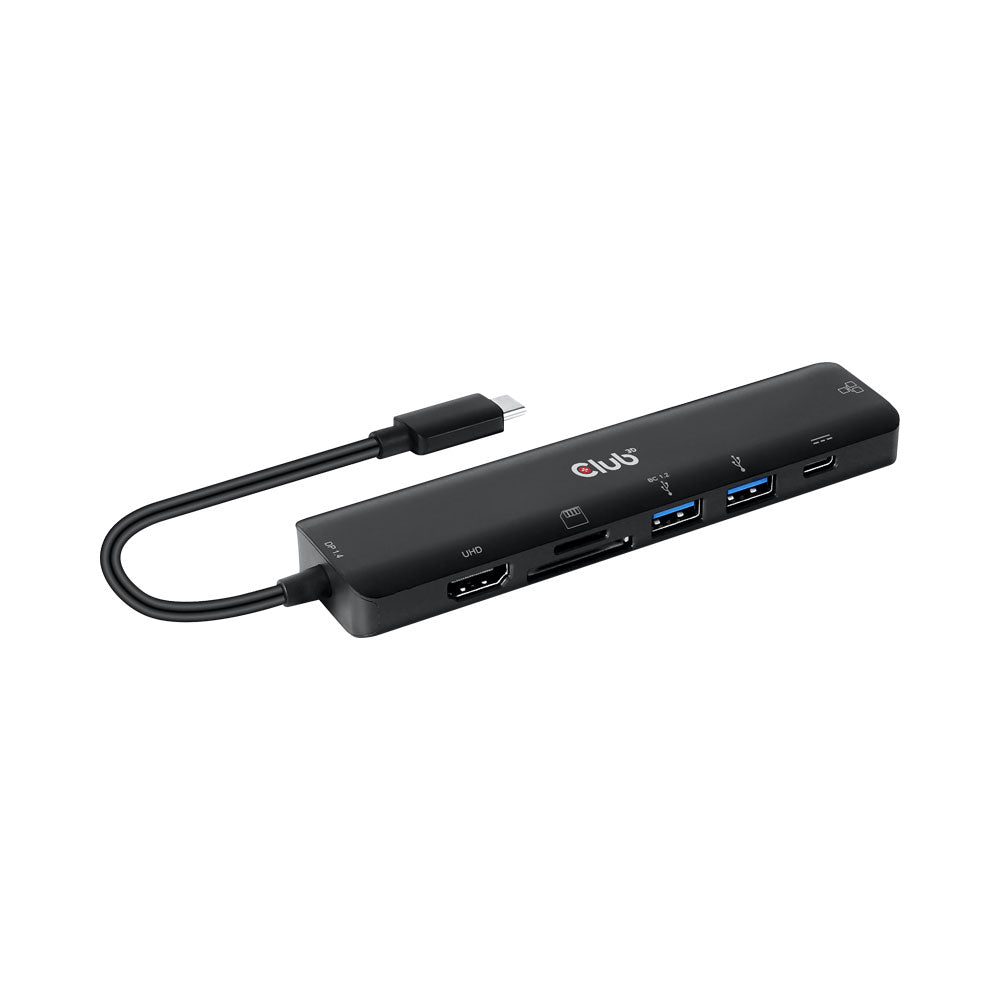

USB TYPE-C 7-IN-1 HUB, HDMI, SD-TF CARD SLOT*

FEATURES • Upstream:  USB Type C Male (Connection to host) • Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), downward compatible with DP1.2 Alt mode • Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format • Downstream • Support HDMI max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth • Support 6/8/10/12-bit colour depth output • Support output pixel format RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 • Support HDCP 2.2&HDCP1.4 • Support HDR • 2x USB Type A 3.0 • 1- USB Type A port supports BC 1.2 with max • 7.5W(5V@1.5A) downstream charging, • 2- USB Type A share max • 8W (5V/1.6A) downstream charging • Max 5Gbps bandwidth per USB Type A port • Note: When connecting a DP 1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz • When connecting a DP 1.2 Alt mode supported host, the max resolution of HDMI is 4k/30Hz due to bandwidth limitation • SD/Micro SD • Support Secure Digital v3.0 UHS-I (Ultra High Speed) SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) • RJ45 (Gigabit Ethernet) • Support 10Mbps/100Mbps/1000Mbps • USB Type C Female (for PD Charging) • Support PD Charging 100W (20V/5A) • Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter • 8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host
