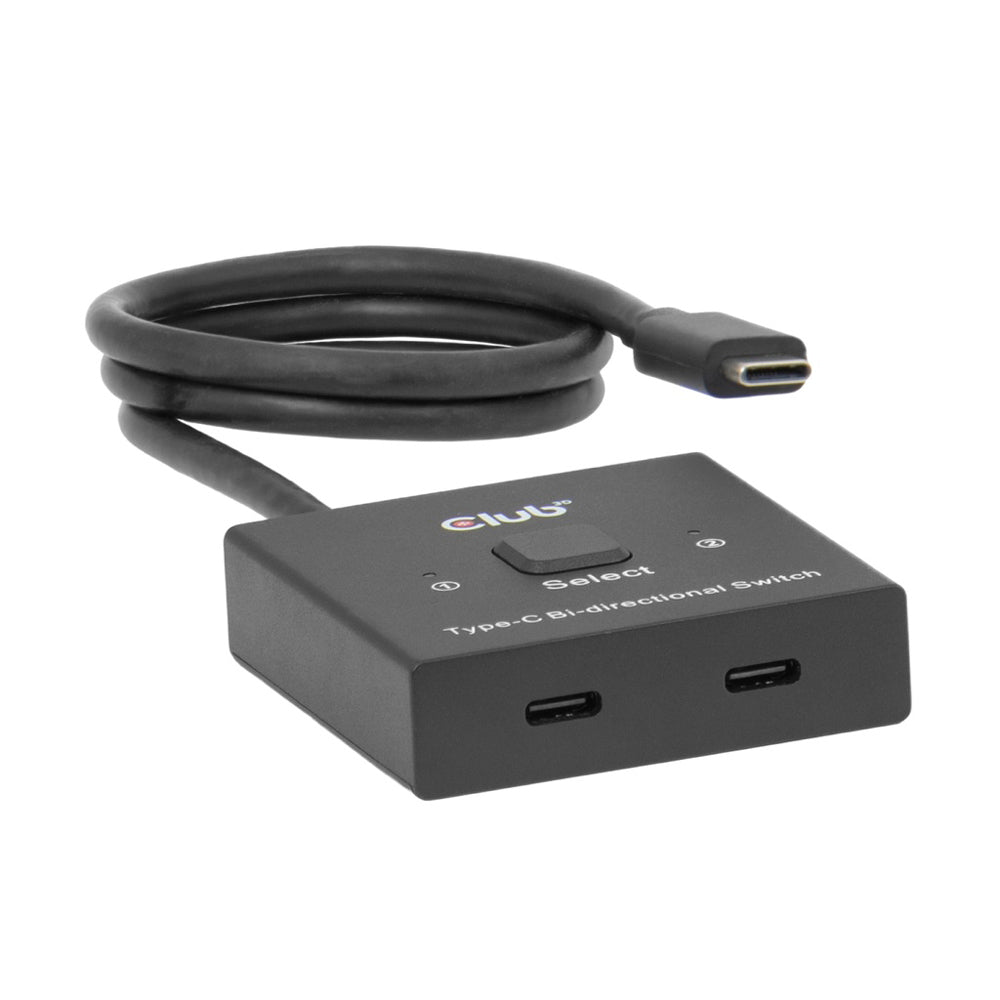

CLUB3D CSV-2511 USB TYPE-C BI-DIRECTIONAL 8K @60HZ VIDEO, 10GBPS DATA AND 100W POWER DELIVERY SWITCH

FEATURES • USB Type-C Bi-Directional Switch - Switch between two sources or two displays with one device • 8K @60Hz and 4K @120Hz Support - Ultra-high resolution with smooth visual performance • DisplayPort 1.4 Support - up to 32.4Gbps bandwidth for high-performance video • USB3.2 Gen2 - up to 10Gbps data transfer for fast connectivity • Power Delivery 3.0 - up to 100W charging with pass-through support • Dual Switching Modes - One source to two displays or two sources to one display • One-Button Switching - Quick toggle with LED indicators for active port status • HDCP Pass-Through - Secure content transmission across connected devices • USB Type-C Powered - Requires 5V input for operation with low power consumption • Wide Compatibility - Supports USB Type-C and Thunderbolt devices across all operating systems SPECIFICATIONS • Input:  - 1× USB Type-C (Host)  - 1× USB Type-C (5V Power Input) • Output:  - 2× USB Type-C • Video Support:  - up To 8K @60Hz or 4K @120Hz  - DisplayPort 1.4 (32.4Gbps Bandwidth) • Data Transfer:  - USB3.2 Gen2  - up to 10Gbps • Power Delivery:  - PD 3.0 up to 100W  - Requires 5V USB Type-C Power Input  - Low Power Consumption (Approx. 0.1W) • Functionality:  - Bi-Directional Switching (2 Sources to 1 Display or 1 Source to 2 Displays)  - One-Button Switching with LED Status Indicators  - HDCP Pass-Through • Compatibility:  - OS: All Major Operating Systems  - Supports USB Type-C and Thunderbolt Devices • Cable Length: Approx. 0.5m • Device Dimensions: 5.5 × 5.5 × 1.5cm • Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm • Box Dimensions: 14.5 × 14.5 × 4.5cm • Device Weight: 61g • Total Weight: 110g • Meets ROHS, FCC and CE EMI Requirements
