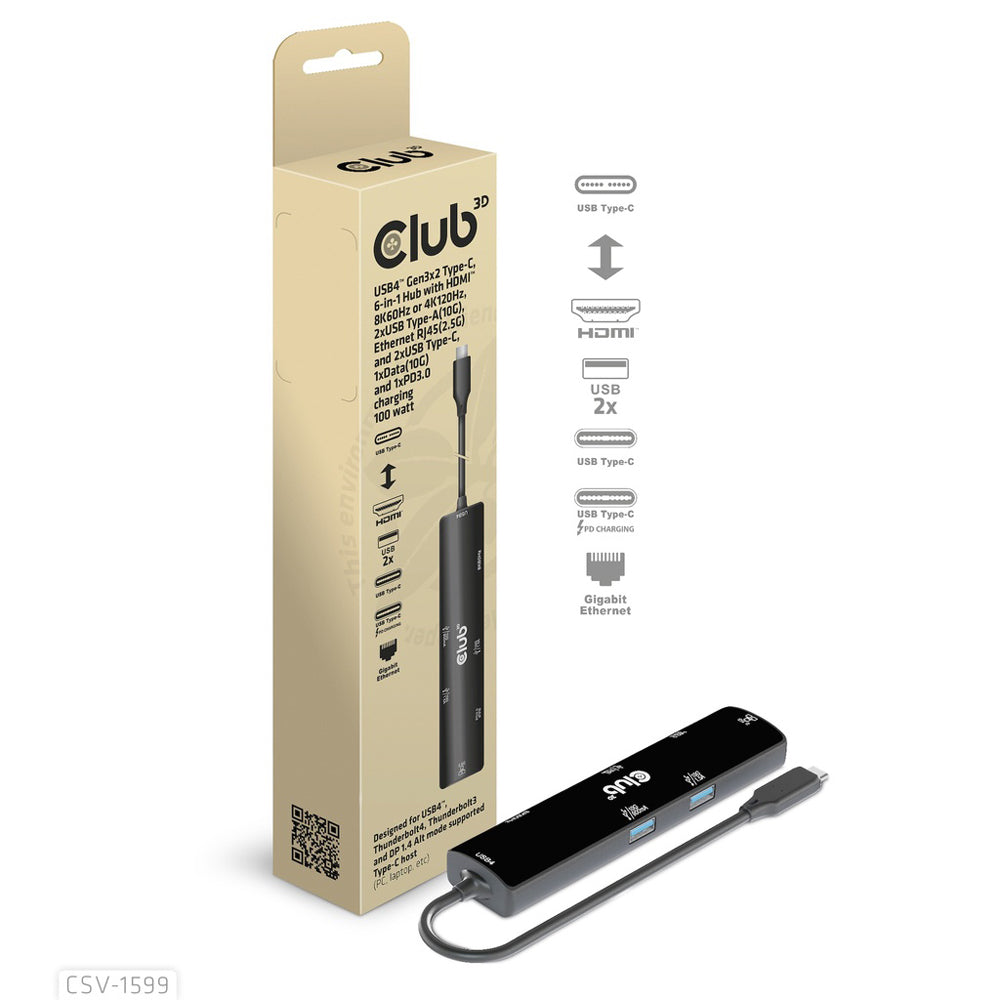

CLUB3D CSV-1599 USB4.0 GEN3X2 6-IN-1 PORT REPLICATOR

FEATURES • USB4.0 Gen3x2 Performance - Up to 40Gbps bandwidth for ultra-fast data transfer • 8K HDMI Output - Supports 8K at 60Hz or 4K at 120Hz with HDR10+ • 6-in-1 Connectivity - HDMI, 2× USB Type-A, 1× USB Type-C data, 1× USB Type-C PD, 1× RJ45 • 2.5GbE Ethernet - High-speed wired network up to 2.5Gbps • 100W Power Delivery - PD3.0 charging with up to 85W pass-through to host • USB3.2 Gen2 Ports - 10Gbps data transfer on USB Type-A and Type-C ports • Multi-Platform Support - Works with USB4.0, Thunderbolt 4, Thunderbolt 3 and DP Alt Mode • Smart Power Distribution - Dedicated power for hub operation with stable device charging • Advanced Protection - Over-current, over-voltage and short-circuit protection SPECIFICATIONS • Cable Length: 2m • Input: 1× USB Type-C (USB4.0, Host Connection) • Video Output: 1× HDMI  - up to 8K @60Hz or 4K @120Hz  - HDR10+ Support  - HDCP 2.3 and HDCP 1.4  - RGB and YCbCr Colour Formats (4:4:4 / 4:2:2 / 4:2:0)  - 8-bit / 10-bit / 12-bit Colour Depth • USB Ports:  - 2× USB Type-A (10Gbps)  - 1× USB Type-C Data (10Gbps)  - Downstream Charging up to 7.5W (Type-C and One Type-A)  - Shared Charging up to 24W Across USB Ports • Power Delivery:  - 1× USB Type-C PD 3.0 Input  - up to 100W input, 85W Pass-Through to Host  - Fast Role Swap Support • Networking:  - 1× RJ45 Ethernet (10/100/1000/2.5Gbps)  - Auto-Negotiation and Wake-on-LAN Support • Compatibility: USB4.0, Thunderbolt 4, Thunderbolt 3, DP Alt Mode • Protection: Over-current, Over-Voltage and Short-Circuit Protection • Total Length: Approx. 40cm • Device Dimensions: 14.7 × 3.1 × 1.8cm • Box Dimensions: 6 × 24 × 3.5cm • Device Weight: 92g • Total Weight: 136g • Meets RoHS, FCC and CE EMI Requirements • OS Support: Windows, Apple OS, Chrome OS
