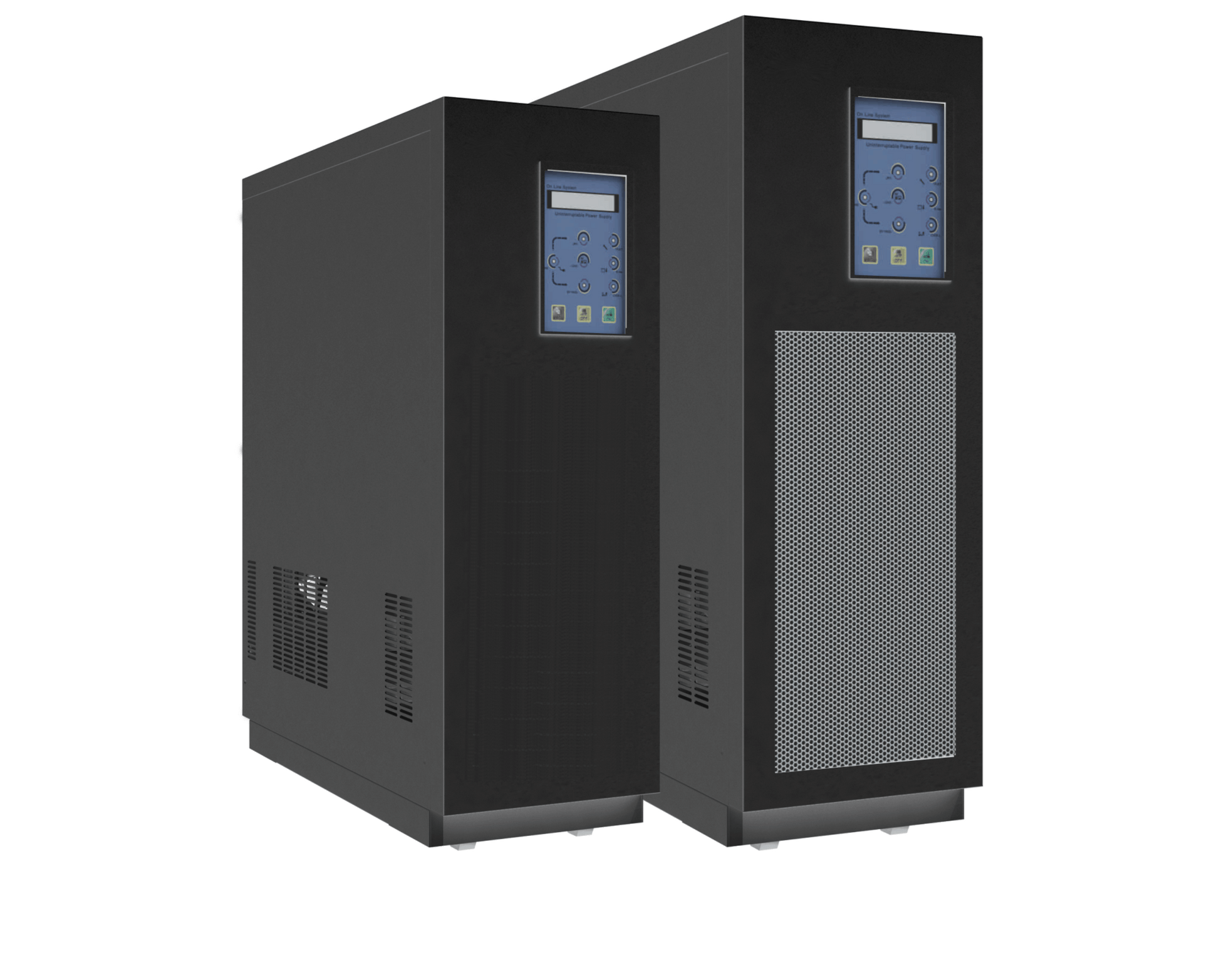

UPS Warehouse JUPITER: 10KVA 1/1 OL TFM 192VDC 0.8PF 16x9AH (JUP1011 S-X01)

UPS Warehouse JUPITER: 10KVA 1/1 OL TFM 192VDC 0.8PF 16x9AH (JUP1011 S-X01)

R 42,864.00 ZAR
R 42,864.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

UPSW-JUP1011 S-X01
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

JUPITER: 10KVA 1/1 OL TFM 192VDC 0.8PF 16x9AH

Technology: Online - Dbl Conversion Transformer-Based

Battery type: Lead Acid.

Single-phase, online double conversion, transformer-based UPS built on DSP technology with true galvanic isolation, intelligent battery management, independent ventilation and built-in maintenance bypass. Optional SNMP. 12-month warranty.

Technical specifications

  • Capacity: 10KVA / 8kW
  • Input: 220/230VAC, 165-275VAC, 50/60Hz ±5%, PF >0.8
  • Output: 220V ±0.5% / 230V ±0.5%, transfer time 0ms (online mode)
  • Battery: Ships with 16 x 9Ah 12V batteries fitted (192VDC)
  • Efficiency: 89% AC mode, >88% overall
  • Dimensions: 310 x 660 x 880mm
  • Net weight: 93kg + battery weight
  • Noise: < 55dB
  • Comms: RS232, optional SNMP/dry contact
