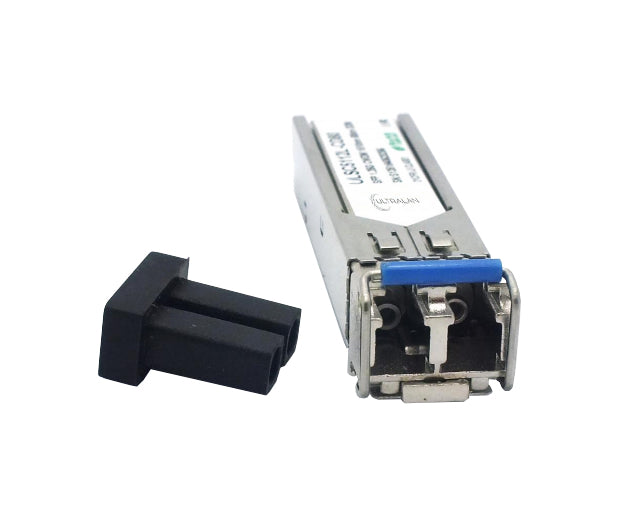

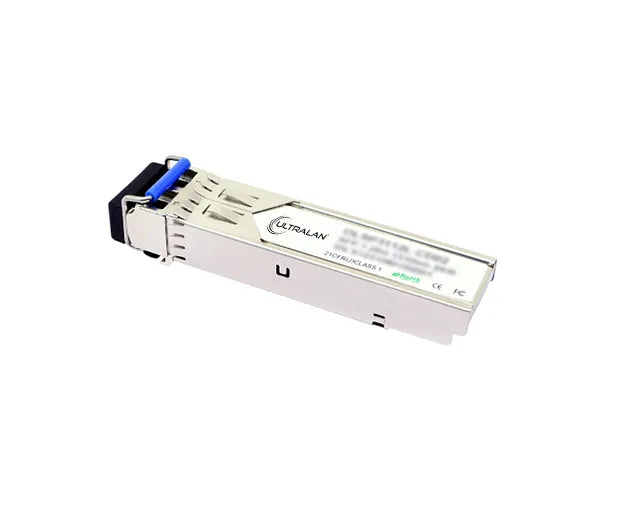

UltraLAN SFP Module – Single Mode 1.25G 10KM 1310nm

UltraLAN SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Product Features:

• Supports 1.25Gbps/1.0625Gbps bit rates
• Duplex LC connector
• Hot pluggable SFP footprint
• 1310nm FP laser transmitter and PIN photo-detector
• Applicable for 10Km SMF connection
• Low power consumption, < 0.8W
• Digital Diagnostic Monitor Interface
• Compliant with SFP MSA and SFF-8472
• Very low EMI and excellent ESD protection

UltraLAN Part Code Matrix:
