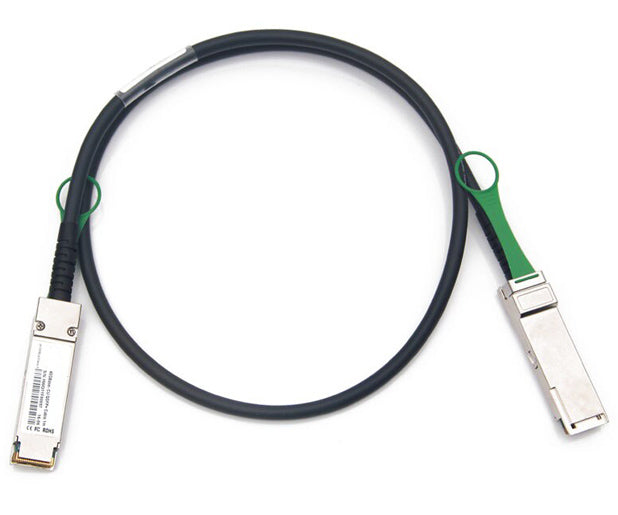

UltraLAN QSFP+ 40G DAC Cable – 1meter

RoHS Compliant 40Gb/s QSFP+ TO QSFP+ Copper Cable Assembly

The UltraLAN QSFP+ to QSFP+ Passive cable assemblies are high performance and cost effective QSFP+ equipment interconnect cables . The hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.

These DAC cables are ideal for short distance interconnect applications, such as linking high speed core switches or telecom routers together in a rack/cabinet. While still having a low power consumption, these cables provide an aggregated data rate of 40Gb/s.

Product Applications:

• High capacity I/O in SAN (Storage Area Networks), NAS (Network Attached Storage), and Storage Servers
• Switched fabric I/O such as ultra high bandwidth switches and routers
• Data center cabling infrastructure
• High density connections between networking equipment

Product Features:

• Support for multi-gigabit data rates up to 40Gbps
• Hot-pluggable QSFP+ footprint
•  Available in lengths of 0.5,1, 2, 3, 5 m
• Metal with lower EMI
• Low Power Consumption < 0.5W
• Power Supply :+3.3V
• Compatible to QSFP+ MSA standards
• Temperature Range: 0~ 70 ° C

UltraLAN Part Code Matrix:
