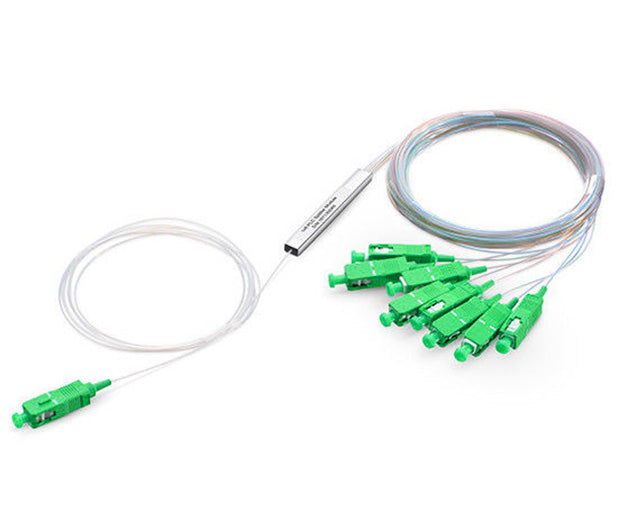

UltraLAN 1×8 SC/APC 900μm PLC Splitter

UltraLAN 1×8 SC/APC 900μm PLC Splitter

R 270.00 ZAR
R 270.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

FIB-SPLT-1X08SC/APCSM
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

UltraLAN 1×8 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:

Port   Configuration 1×2 1×4 1×8 1×16 1×32
Operating   Wavelength (nm)      1260～1650
Insertion Loss   (dB)             Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity   (dB)           Max 0.5 0.7 1 1.4 1.8
Return Loss   (dB)               Min 55 55 55 55 55
Polarization   Dependent Loss(dB)   Max 0.2 0.2 0.3 0.3 0.3
Directivity   (dB)                Min 55 55 55 55 55
Wavelength   Dependent Loss(dB)   Max 0.3 0.3 0.3 0.8 0.5
Temperature   Dependent Loss (-40～85 ℃)   (dB)   Max 0.5 0.5 0.5 0.8 0.8
Operating   Temperature (℃) -40～+85
Storage   Temperature (℃) -40～+85
