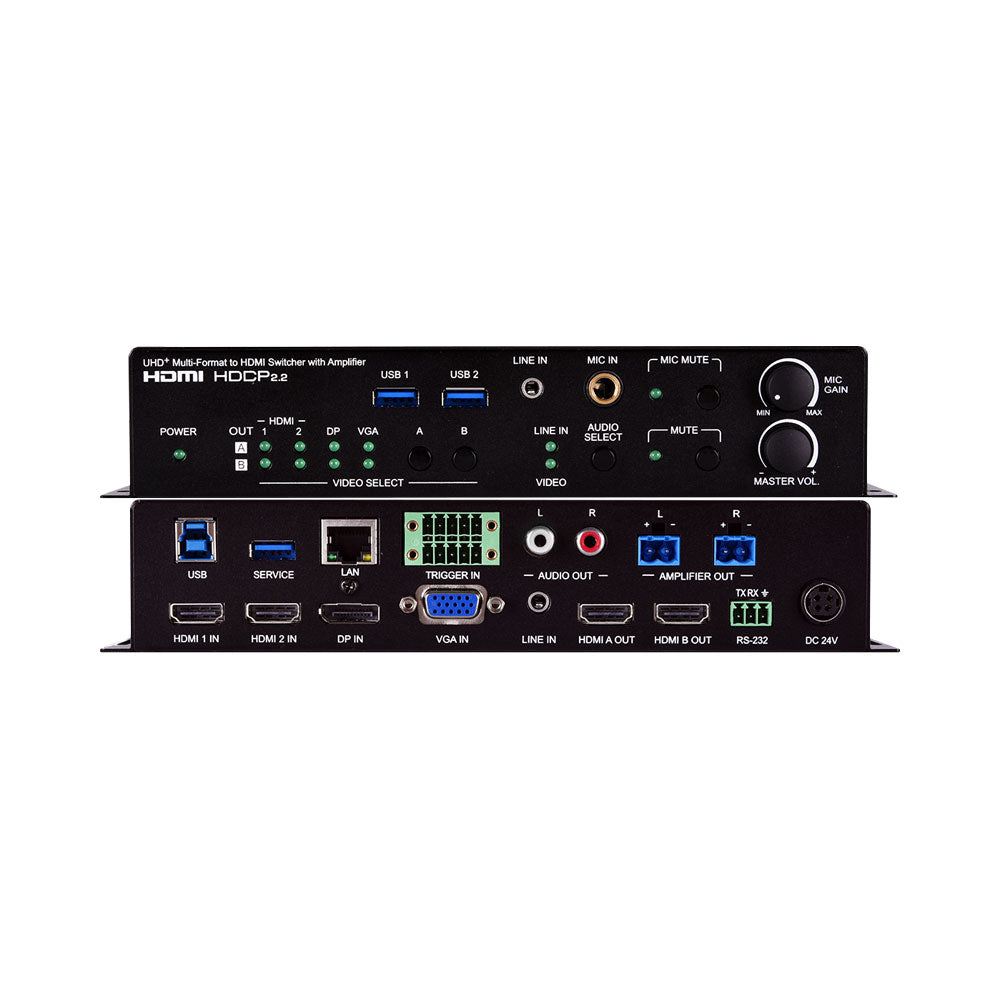

CYP CPLUS-V2030 4K MULTI-FORMAT TO HDMI SWITCH WITH AMPLIFIER

FEATURES • Multi-Format Input Support - HDMI, VGA and DisplayPort inputs for maximum compatibility • Dual HDMI Outputs - Simultaneous output to two displays with flexible routing • 4K Video Support - Supports up to 4K @60Hz (4:4:4, 8-bit) on HDMI and DisplayPort • Integrated Audio Amplifier - 2-channel Class-D amplifier with 20W per channel output • Advanced Audio Processing - DSP mixing, microphone input, ducking and volume control • Microphone Integration - 6.35mm input with optional 48V phantom power support • Audio Matrix Mixing - Flexible audio routing between inputs and outputs • HDMI Audio Pass-Through - Supports LPCM, Bitstream and HD Bitstream formats • Event-Based Control - Trigger input and RS-232 for automation and system integration • Side-by-Side Display Mode - Dual HDMI outputs can drive two displays simultaneously • Multiple Control Options - RS232, LAN, Web GUI and front panel operation SPECIFICATIONS • Input Ports: 2× HDMI 1× VGA 1× DisplayPort 2× Unbalanced Stereo (3.5mm) 1× Microphone (6.35mm) • Output Ports: 2× HDMI 1× Stereo (2× RCA) 1× Stereo (2-Pin Terminal Block) • Control Ports: 1× RS232 (3-Pin Terminal Block) 1× Trigger (10-Pin Terminal Block) 1× LAN (RJ45) • USB Ports: 1× USB3.0 (Type-A) 1× USB3.0 (Type-B) 1× USB3.0 (Type-A, Service) • HDMI Compliance: HDMI 2.0 • HDCP Compliance: 2.x • Input Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4 • Output Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4 • Maximum Input Resolution: HDMI: 4096 × 2160 @60Hz DisplayPort: 4096 × 2160 @60Hz VGA: 1920 × 1200 @60Hz • Maximum Output Resolution: HDMI: 4096 × 2160 @60Hz • Audio Output: LPCM 8-Channel, HD Bitstream • Line-In: Max. 2Vrms, 10kΩ, Unbalanced • Power Supply: 24V 3.75A DC • Power Consumption: 43W (Without Amplifier) • Chassis Material: Steel • Colour: Black • Dimensions (W x H x D): 231.5 × 44 × 171mm • Weight: 1.2kg
