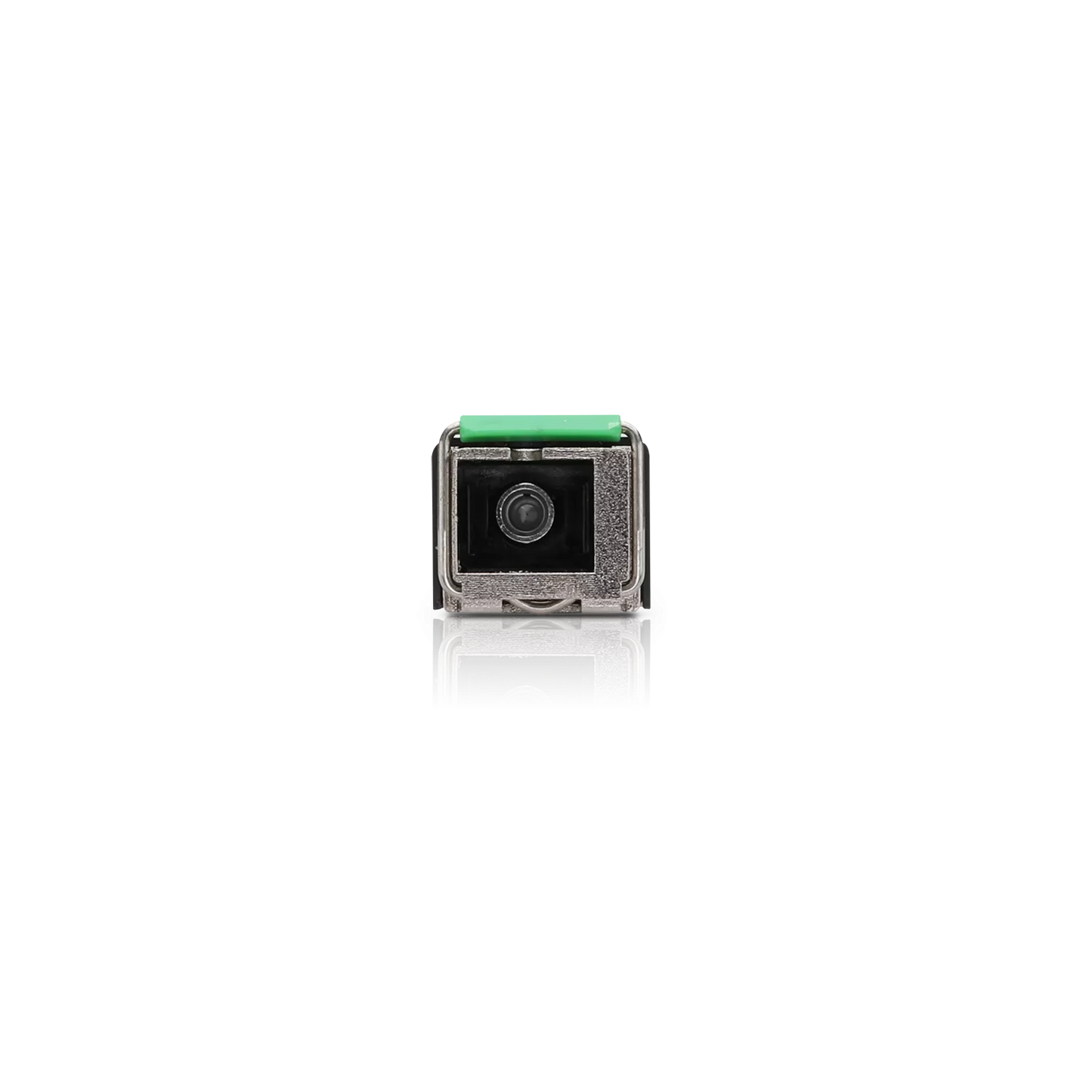

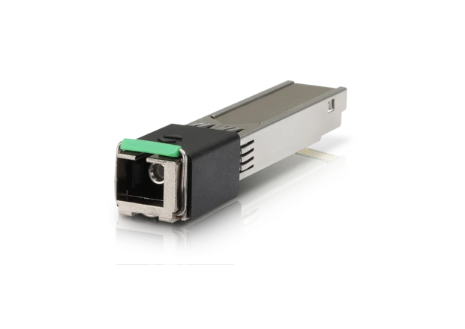

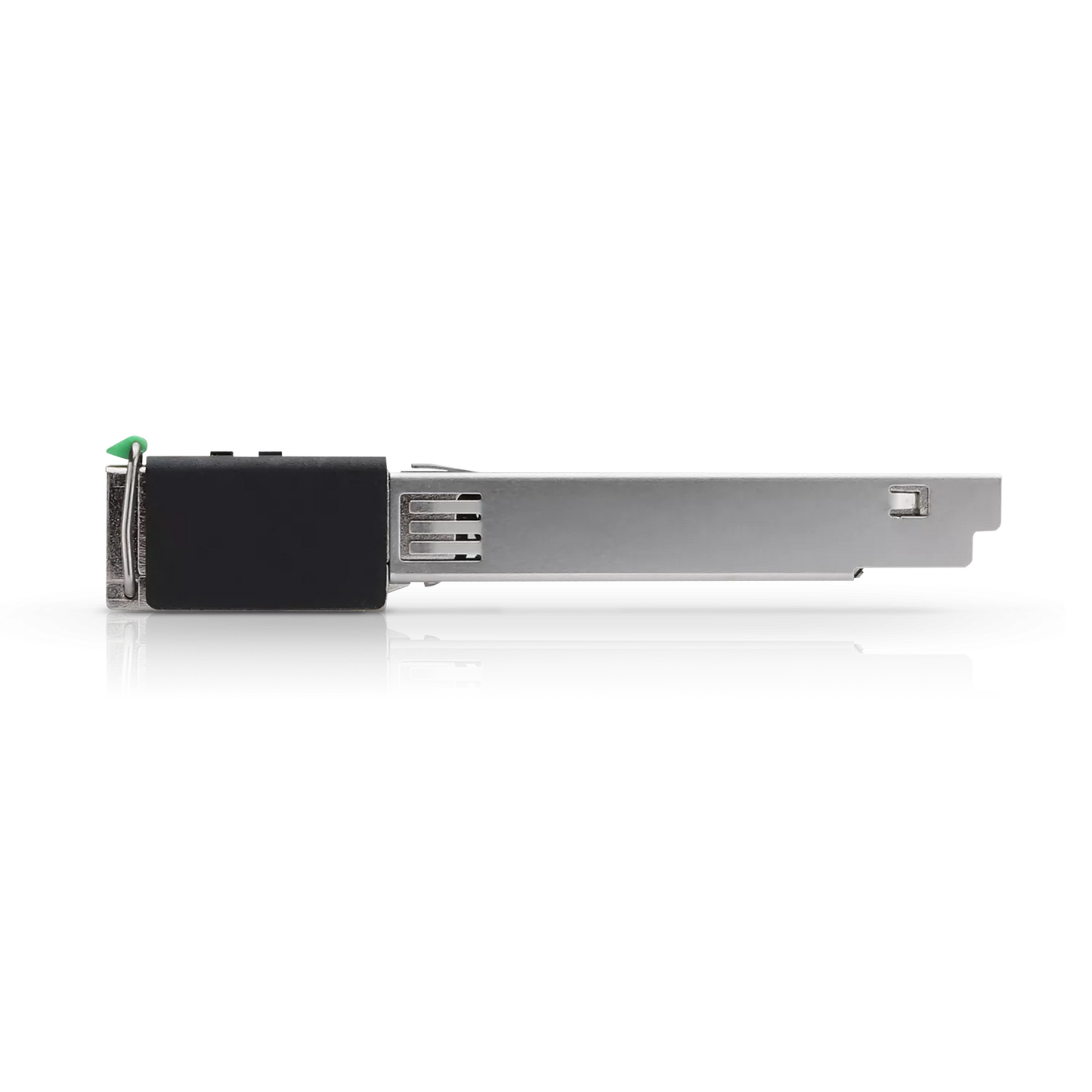

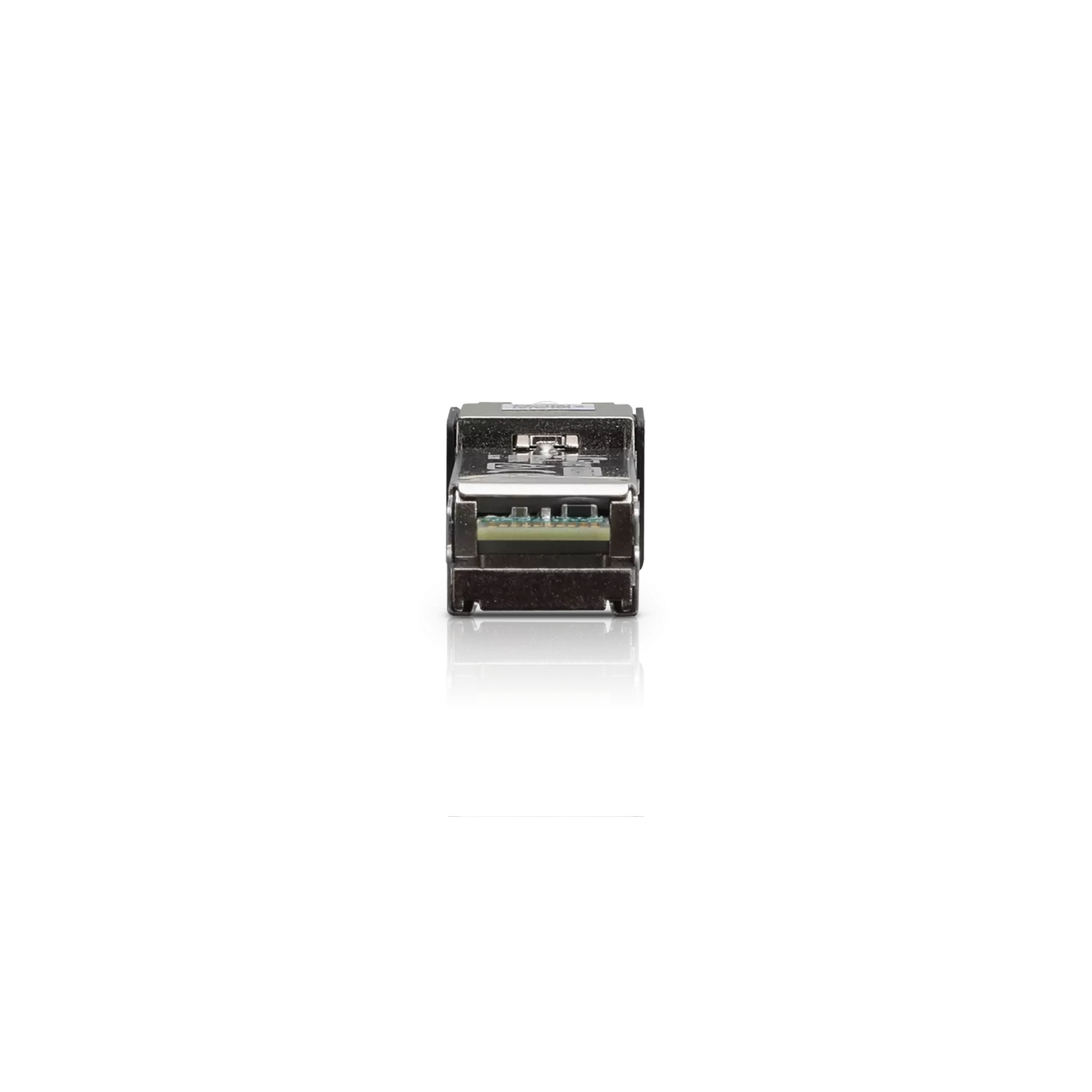

The Ubiquiti UFiber Instan
t (model UF-Instant) is a GPON Optical Network Unit (ONU) conveniently packaged in a standard SFP module. This device enables routers or switches with an available SFP port to connect directly to a GPON fibre network, removing the need for a separate modem. It is powered via the SFP port and features a single SGMII Ethernet LAN interface. The UF-Instant conforms to the ITU-T G.984 GPON standard, making it a versatile solution for fibre-to-the-home (FTTH) and fibre-to-the-business (FTTB) applications. Specifications: GPON Standard: ITU-T G.984. WAN Interface: 1x SC/APC Connector. LAN Interface: 1x SGMII Ethernet. Management: In-Band Ethernet, PON. Power Method: SFP Port (3.3V). Max Power Consumption: 2W. Data Rates: 2.488 Gbps Downstream, 1.244 Gbps Upstream. Wavelengths: TX 1310 nm, RX 1490 nm. TX Power (Class B+): 1.5 to 5 dBm. RX Power: -28 to -8 dBm. Max Distance: 20 km. Operating Temperature: -10 to 45° C. Operating Humidity: 10 to 90% non-condensing.
