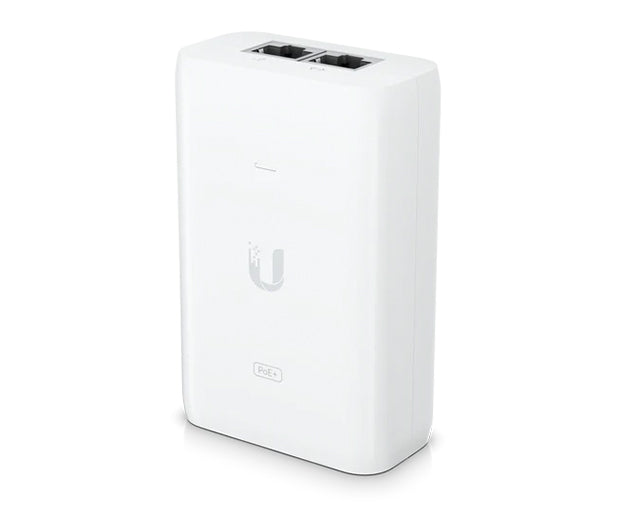

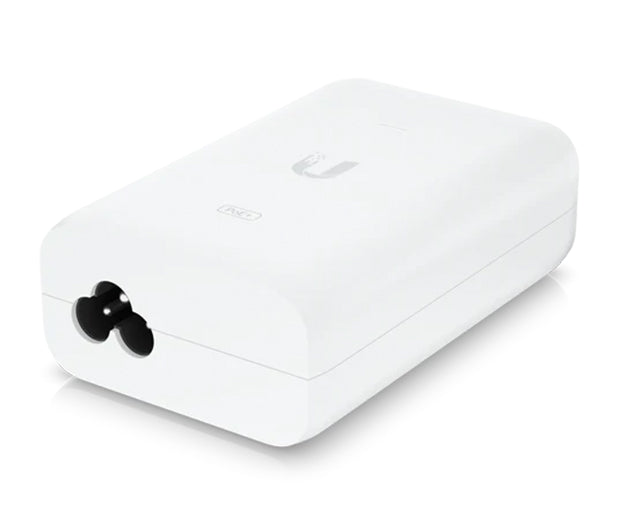

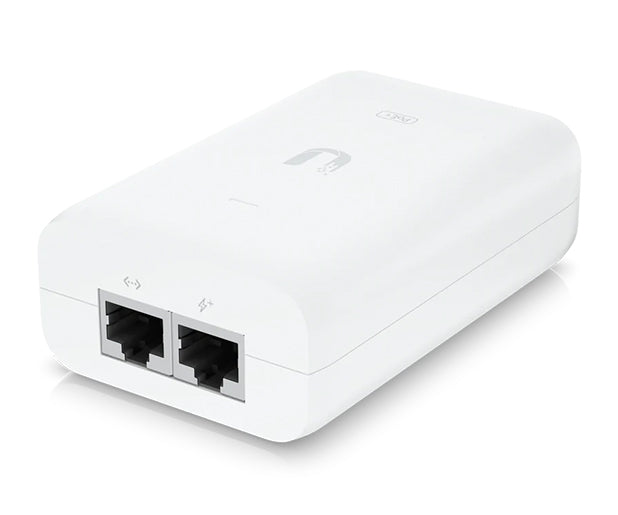

Ubiquiti 48V 30W Gigabit PoE Adapter (U-POE-at)

48V 0.65A


This model is able to provide 48V Passive PoE or 802.3af/at output (to compatible devices) up to 30 Watts.

  • Delivers up to 30W of PoE+
  • Compatible with the U6 LR, U6 Pro, and other PoE+ devices
  • Surge, peak pulse, and overcurrent protection
  • Clover to Type N power cable with ground
  • LED indicator for status monitoring

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, STP/FTP cable and shielded connectors.

Please note that no power cord is included with this PoE injector.
A clover to SA 3pin power cord is available for purchase separately should you this be required:
https://shop.dbg.co.za/powcnd5.html

Specifications:

Model U-POE-at
Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38″)
Weight 156 g (5.5 oz)
Output voltage 48V DC @ 0.65A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 0.75A @ 90V AC
Inrush current <100A peak at 26℃
Efficiency 87%
Output ripple 1% max.
Switching frequency 70 kHz max.
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No
AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Operating humidity 35 to 90% noncondensing
Certifications CE, FCC, IC, UL
