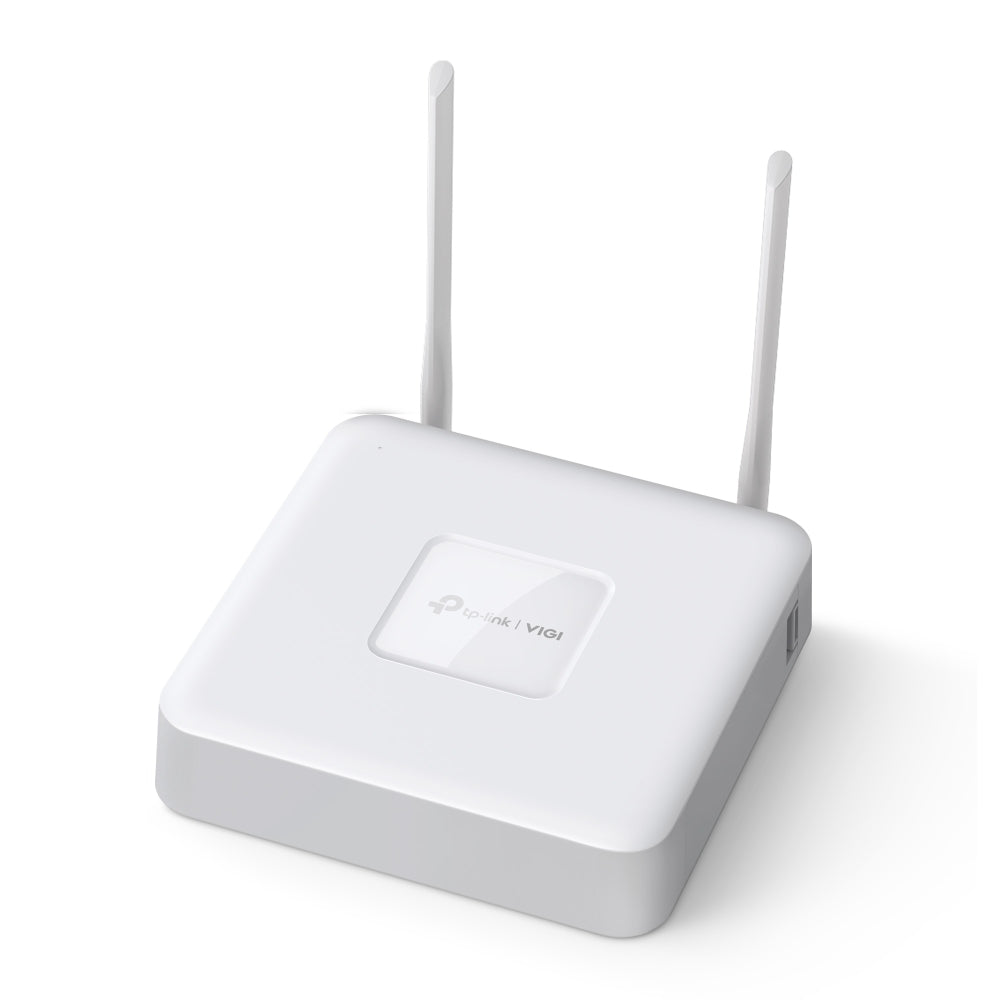

TP LINK VIGI NVR WIRELESS 8CH 4K VGA/HDMI

FEATURES • 8-Channel Wi-Fi NVR - Connect and manage up to 8× IP cameras wirelessly • Wireless Pairing - Quick and easy setup without complex cabling • H.265+ Video Compression - Reduces bandwidth and storage requirements while maintaining quality • 4K HDMI Output - Ultra-clear video output for detailed monitoring • 80Mbps Incoming Bandwidth - Stable performance for multi-camera systems • ONVIF Compatibility - Supports third-party cameras for flexible integration • Smart Playback and Recording - Manual, scheduled and motion-based recording with advanced playback options • Intelligent Detection - Motion, intrusion, line-crossing and anomaly alerts • Remote Management - Access via VIGI app, web UI and VMS platforms • Easy HDD Installation - Quick setup without removing the full enclosure SPECIFICATIONS • IP Video Input: 8-Channel • Incoming Bandwidth: 80Mbps • Outgoing Bandwidth: 60Mbps • HDMI Output: up to 3840 × 2160 (4K) • VGA Output: up to 1920 × 1080 • Video Output Mode: HDMI/VGA Simultaneous • Multi-View Display: 1 / 4 / 6 / 8 / 9 • Video Compression: H.265+ / H.265 / H.264+ / H.264 • Audio Compression: G.711A / G.711U / G.726 • Recording Resolution: up to 8MP • Synchronous Playback: 8-Channel • Decoding Capability:  - 25fps: 2-Ch @ 8MP, 4-Ch @ 4MP  - 30fps: 4-Ch @ 4MP, 3-Ch @ 5MP • Recording Modes: Manual, Scheduled, Motion Detection • Playback Modes: Instant, Regular, Tag, Event • Backup: Regular Backup, Video Clip Backup • Playback Functions: Play, Pause, Stop, Fast Forward, Fast Backward, Frame-by-Frame, Export, Audio On/Off • Frequency: 2.4GHz • Wireless Standards: IEEE 802.11b/g/n • Wireless Speed: up to 300Mbps • Channel: 1~13 (Auto) • Bandwidth: Auto / 20MHz / 40MHz • Security: WPA-PSK / WPA2-PSK • Protocols: TCP/IP, DHCP, NTP, UPnP • Interoperability: ONVIF, CGI • Mobile Access: Android, iOS • Browser Support: Chrome, Firefox, Edge • Network Ports:  - 1× RJ45 WAN (10/100Mbps)  - 1× RJ45 LAN (10/100Mbps) • USB: 2× USB2.0 • Audio: 1× RCA Input, 1× RCA Output • Video Outputs: 1× HDMI, 1× VGA • Storage Interface: 1× SATA • Smart Events: Motion Detection, Line Crossing, Intrusion, Region Enter/Exit, Object Removal/Abandonment, Human Detection, Vehicle Detection • Anomaly Alerts: Video Loss, Offline/Conflict, Disk Exception, Login Exception • Alarm Linkage: Recording, Buzzer, Log, Audible Alarm • Power Supply: DC 12V 2A • Power Consumption:  - 5.7W (without HDD)  - 16.3W (with HDD) • Operating Temperature: -10~55°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Dimensions: 200.3 × 200.3 × 43mm • Weight: 0.5kg • Antennas: 2× External Wi-Fi Antennas
