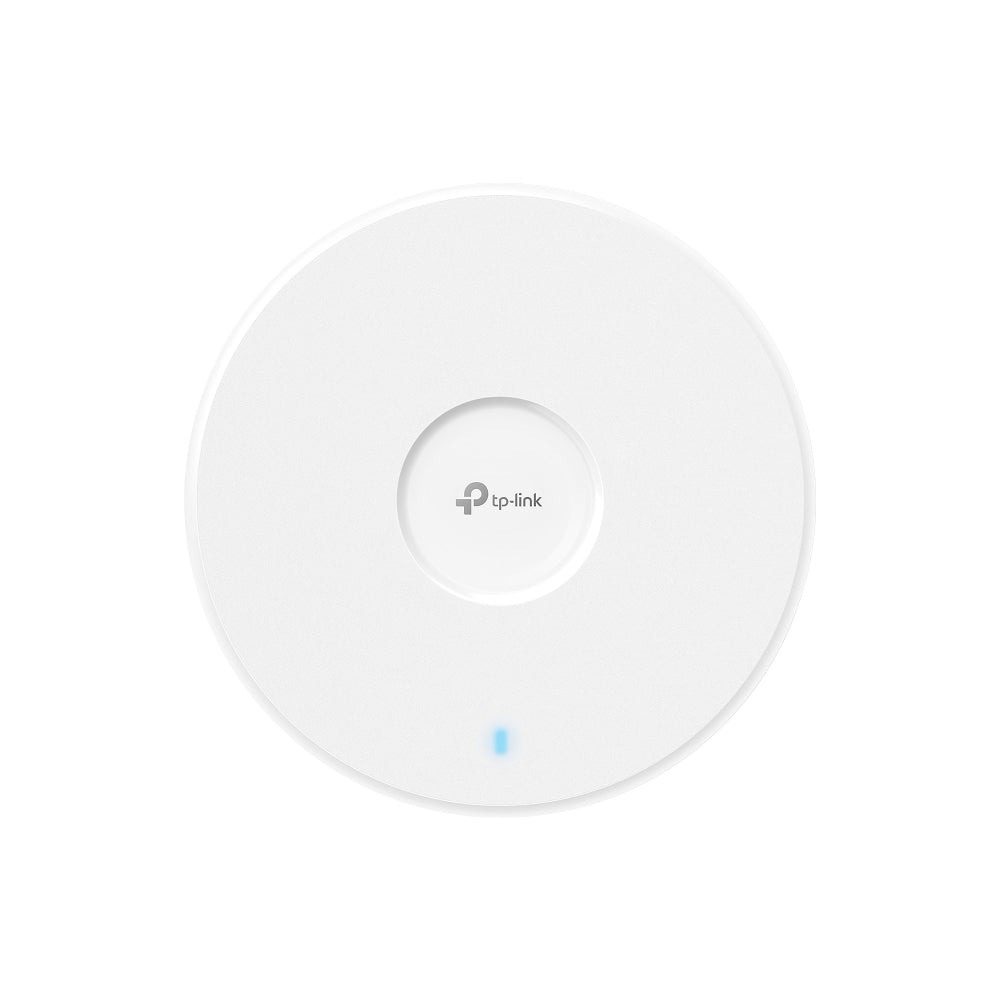

TP-LINK OMADA BE3600 WIFI7 AP

FEATURES • BE5000 Dual-Band Wi-Fi 7 (4,324Mbps on 5.0GHz plus 688Mbps on 2.4GHz) • 1× 2.5GbE port unlocks the full potential of Wi-Fi 7 • 240MHz bandwidth enables many more simultaneous transmissions • Multi-Link Operation and Multi-RUs ensure the high-performance of your network • Advanced functions – centralised management, mesh and seamless roaming SPECIFICATIONS HARDWARE FEATURES • Interface: 1× 2.5G Ethernet Port • Button: Reset • Power Supply: 802.3at PoE or 12V 1.5A DC (Power Adapter is Not Included) • Max. Power Consumption: - 17.8W (PoE) - 14W (DC) • Dimensions (W × D × H): 160 × 160 × 36.7mm • Antenna: - 2.4GHz: 2× 4dBi - 5.0GHz: 2× 5dBi • Mounting: Ceiling / Wall-Mounting / Junction Box (Kits Included) WIRELESS FEATURES • Coverage: 140m² • Concurrent Clients: 250+ • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be • Frequency: 2.4GHz and 5.0GHz • Signal Rate: 688Mbps (2.4GHz) + 4,324Mbps (5.0GHz) WIRELESS FUNCTIONS • MLO • 4K-QAM • Seamless Roaming • MU-MIMO • EHT240 • Mesh • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS: 16× (8× on each Band) • Wireless Schedule • Reboot Schedule • QoS (WMM) • Rate Limit • Static IP / Dynamic IP • RADIUS Accounting • MAC Authentication WIRELESS SECURITY • Captive Portal Authentication • Access Control • Maximum Number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • Transmission Power: - <25dBm (2.4GHz) - <25dBm (5.0GHz, Band 1 & Band 4) - <24dBm (5.0GHz, Band 2 & Band 3) MANAGEMENT FEATURES • Omada App: Yes • Centralised Management: - Omada Cloud-Based Controller - Omada Hardware Controller - Omada Software Controller • Cloud Access: Yes Require the Use of an OC300, OC200, Omada Software Controller or an Omada Cloud-Based Controller • Email Alerts: Yes • LED ON/OFF Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging Local / Remote Syslog: Yes • Web-Based Management: Yes OTHERS • Certification: CE, FCC, RoHS, IC • Environment: - Operating Temperature: 0~40°C - Storage Temperature: -40~70°C - Operating Humidity: 10~90% Non-Condensing - Storage Humidity: 5~90% Non-Condensing
