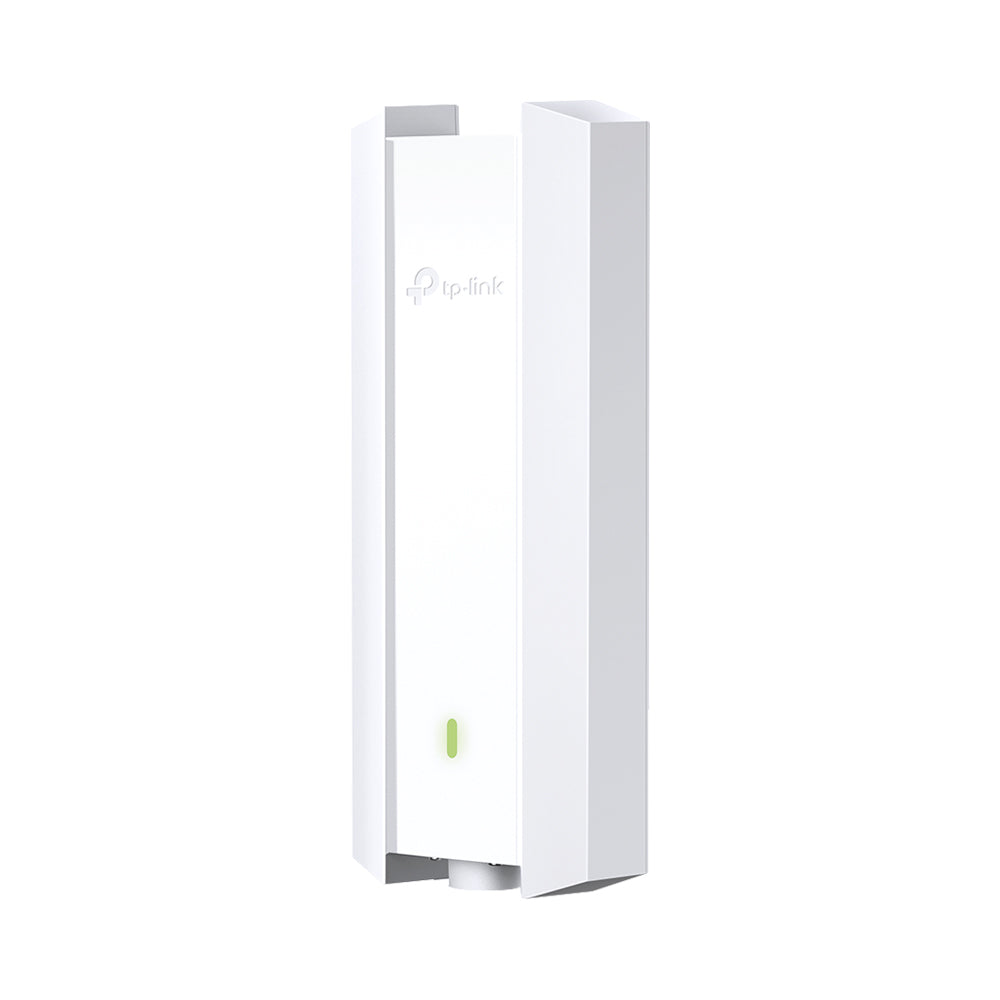

TP-LINK AX3000 INDOOR/OUTDOOR WI-FI 6 ACCESS POINT

FEATURES • Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds • High-Efficiency Wi-Fi 6 - More connected devices can enjoy faster speeds • Centralised Cloud Management - Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada App • 160 MHz Channel - Double the data at peak transmission times on a single stream with HE160 • Seamless Roaming - Video streams and voice calls are unaffected as users move between locations • Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment • PoE+ Powered - Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations • Ultra-Slim Design - ø160 mm x 33.6 mm elegant design brings more agility SPECIFICATIONS HARDWARE FEATURES • Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+) • Button: Reset • Power Supply: 802.3at PoE+ • Power Consumption: 12.5W • Dimensions: 280.4 × 106.5 × 56.8mm • Antennas: Internal Omni Antennas - 2.4GHz: 2× 4dBi - 5.0GHz: 2× 5dBi • Weatherproof Enclosure: IP67 • Mounting: Pole/Wall Mounting (Kits Included) WIRELESS FEATURES • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a • Frequency: 2.4GHz and 5.0GHz • Signal Rate: - 5.0GHz: up to 2402Mbps - 2.4GHz: up to 574Mbps • 1024-QAM: Yes • OFDMA: Yes • MU-MIMO: Yes • HE160: Yes • SSIDs: up to 16× SSIDs (8× per Band) • Enable/Disable Wireless Radio: Yes • Automatic Channel Assignment: Yes • Transmit Power Control (Adjust Transmit Power on dBm): Yes • QoS (WMM): Yes • Seamless Roaming: Yes • Omada Mesh: Yes • Band Steering: Yes • Load Balance: Yes • Airtime Fairness: Yes • Beamforming: Yes • Rate Limit: Yes • Reboot Schedule: Yes • Wireless Schedule: Yes • Wireless Statistics: Based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise TRANSMISSION POWER • CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP) • FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz) MANAGEMENT • Omada App: Yes • Centralised Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller) • Email Alerts: Yes • LED On/Off Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging: Local/Remote Syslog • SSH: Yes • Web-Based Management: HTTP/HTTPS • L3 Management: Yes • Multi-Site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller) CERTIFICATION • CE • FCC • RoHS ENVIRONMENT • Operating Temperature: -30~70°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
