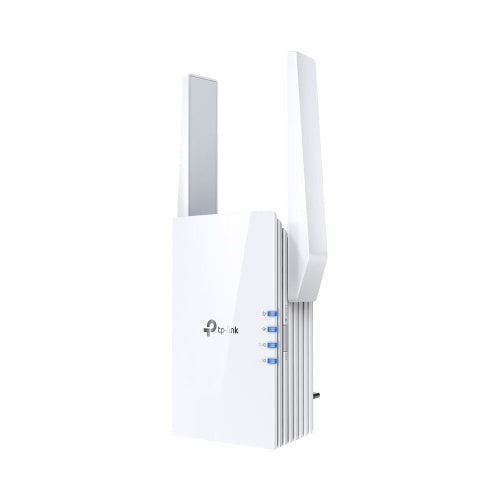

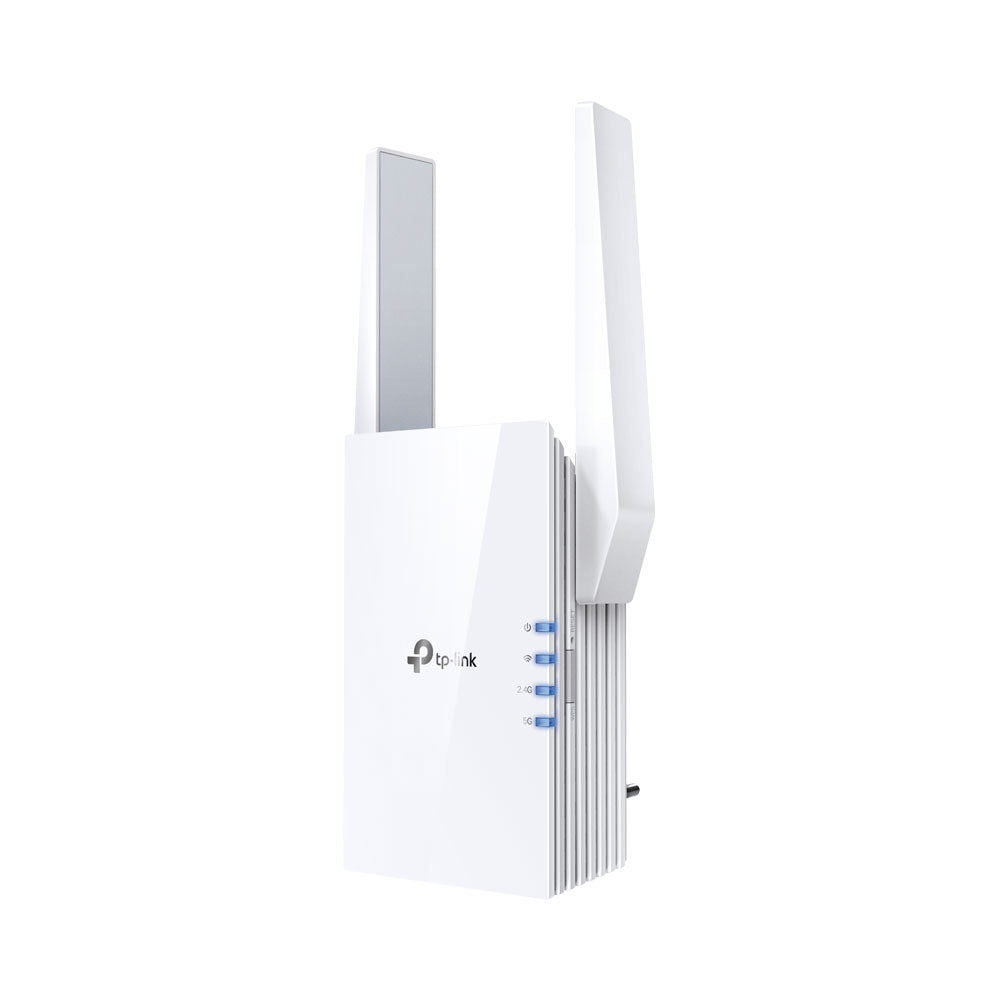

TP-LINK AX1800 Wi-Fi 6 RANGE EXTENDER

FEATURES • Creates a Mesh Network - By connecting to a TP-Link OneMesh router for seamless whole-home coverage • Gigabit Ethernet Port - Provides faster-wired connections to smart TVs, computers and gaming consoles • Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength • in the current placement • AP Mode - Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability • TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device • Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point SPECIFICATIONS WORKING MODES • Range Extender • Access Point PORTS • 1× Gigabit Ethernet Port BUTTON • WPS Button • Reset Button INPUT POWER • 100~240V 50/60Hz POWER CONSUMPTION • 10W DIMENSIONS (W × D × H) • 74 × 46 × 124.8mm ANTENNA • 2× External Antennas WIRELESS STANDARDS • IEEE 802.11a/n/ac/ax (5.0GHz) • IEEE 802.11b/g/n (2.4GHz) FREQUENCY • 2.4GHz • 5.0GHz SIGNAL RATE • 574Mbps (2.4GHz) • 1,201Mbps (5.0GHz) RECEPTION SENSITIVITY 5.0GHz • 11a 6Mbps: -93dBm • 11a 54Mbps: -75dBm • 11ac HT20 MCS0: -92dBm • 11ac HT20 MCS8: -70dBm • 11ac HT40 MCS0: -90dBm • 11ac HT40 MCS9: -66dBm • 11ac HT80 MCS0: -87dBm • 11ac HT80 MCS9: -62dBm 2.4GHz • 11g 54Mbps: -77dBm • 11n HT20 MCS7: -75dBm • 11n HT40 MCS7: -72dBm WIRELESS FUNCTIONS • Enable / Disable Wireless Radio • Wireless Statistics WIRELESS SECURITY • 64/128-bit WEP • WPA/WPA2-PSK Encryption TRANSMISSION POWER • CE: 2.4GHz ≤20dBm • CE: 5.0GHz ≤30dBm MESH TECHNOLOGY • OneMesh CERTIFICATIONS • CE • RoHS SYSTEM REQUIREMENTS • Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10 • Mac OS • NetWare • UNIX • Linux • Internet Explorer 11 • Firefox 12.0 • Chrome 20.0 • Safari 4.0 or Other Java-Enabled Browser ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% Non-Condensing • Storage Humidity: 5~90% Non-Condensing
