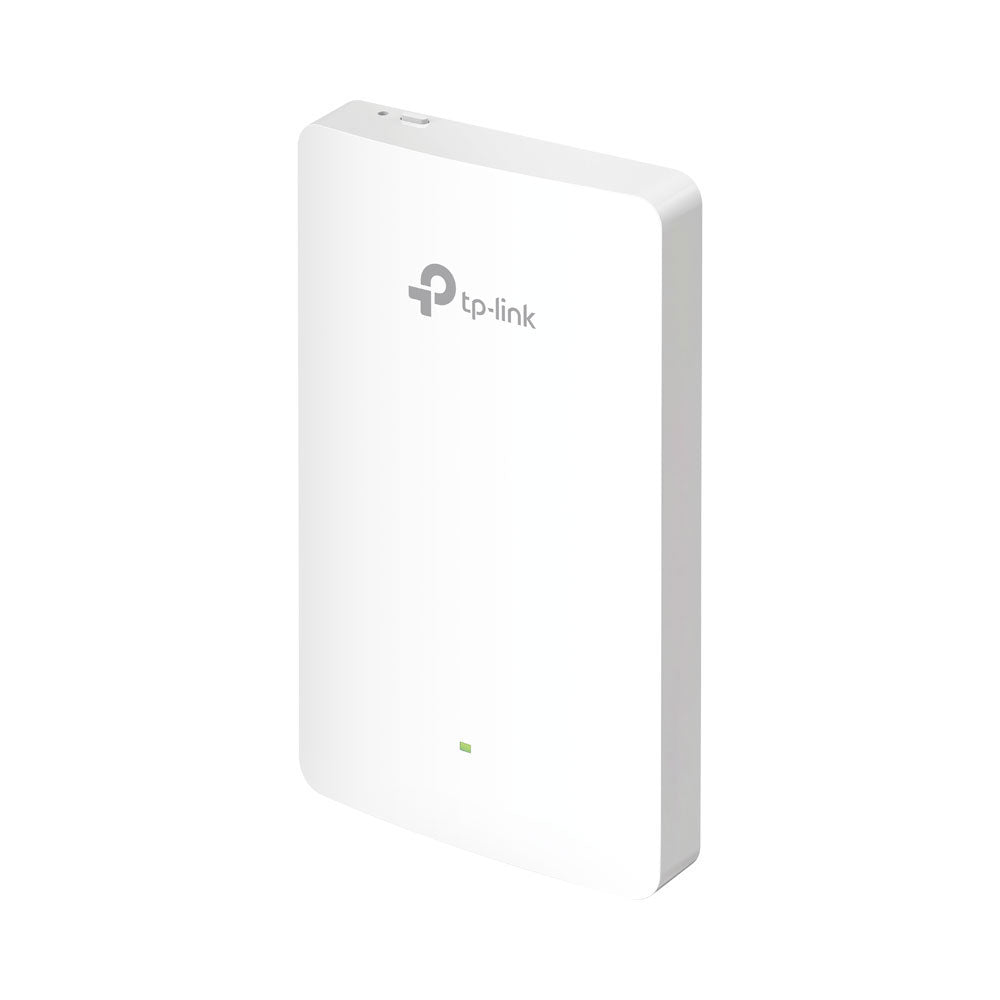

TP-LINK AX1800 WALL PLATE WIFI 6 ACCESS POINT

FEATURES • Superior Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 1,201Mbps on 5.0GHz totals 1,775Mbps Wi-Fi speeds • High-Performance Connectivity - Guarantee higher network efficiency and lower latency • Four Gigabit Ports - 4 Gigabit Ethernet ports (1× uplink + 3× downlink) with one downlink port supporting PoE pass-through to provide power for wired devices • Centralised Management - Integrates into Omada SDN for cloud access and remote management • Secure Guest Network - Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies • Easy Installation and PoE Support - Easy to install design, compatible with 86mm and EU or US standard junction boxes with 802.3af/at PoE support SPECIFICATIONS HARDWARE FEATURES • Interface: - 1× Uplink: 10/100/1000Mbps Ethernet Port - 3× Downlink: 10/100/1000Mbps Ethernet Ports (One Port Supports PoE Out) • Physical Security Lock: Yes • Button: Reset • Power Supply: 802.3af/802.3at PoE • Power Consumption: 12.5W (Without PoE Out) • Dimensions: 143 × 86 × 20mm • Antennas: 2× Dual-Band Internal Antennas - 2.4GHz: 2× 4dBi - 5.0GHz: 2× 5dBi • Mounting: Wall Plate Mounting WIRELESS FEATURES • Wireless Client Capacity: 100+ • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a • Frequency: 2.4GHz and 5.0GHz • Signal Rate: - 5.0GHz: up to 1201Mbps - 2.4GHz: up to 574Mbps • SSIDs: up to 16× SSIDs (8× per Band) • OFDMA: Yes • MU-MIMO: Yes • Seamless Roaming: Yes • Band Steering: Yes • Beamforming: Yes • Airtime Fairness: Yes • QoS (WMM): Yes • Load Balance: Yes • Rate Limit: Yes • Wireless Schedule and Reboot Schedule: Yes • Wireless Statistics: Based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN Port-Based VLAN • Rogue AP Detection • 802.1X Support • Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise TRANSMISSION POWER • CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP) • FCC: ≤21dBm (2.4GHz), ≤21dBm (5.0GHz) MANAGEMENT • Omada App: Yes • Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller) • Email Alerts: Yes • LED On/Off Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c • System Logging: Local/Remote Syslog • SSH: Yes • Web-Based Management: HTTP/HTTPS • L3 Management: Yes • Multi-Site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller) CERTIFICATION • CE • FCC • RoHS ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
