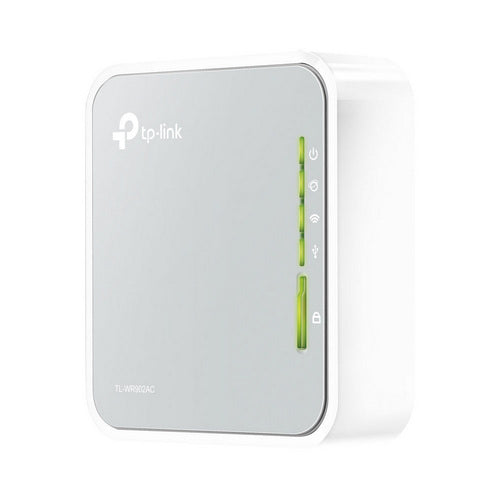

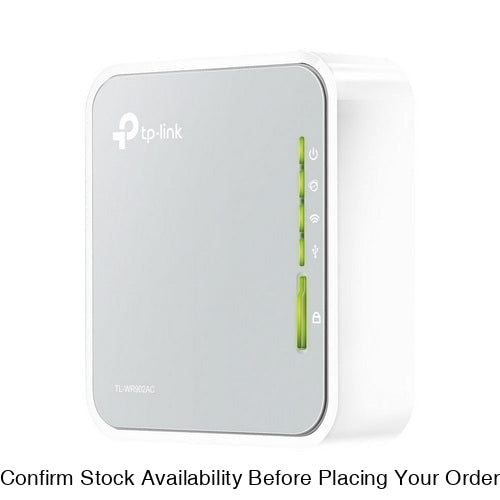

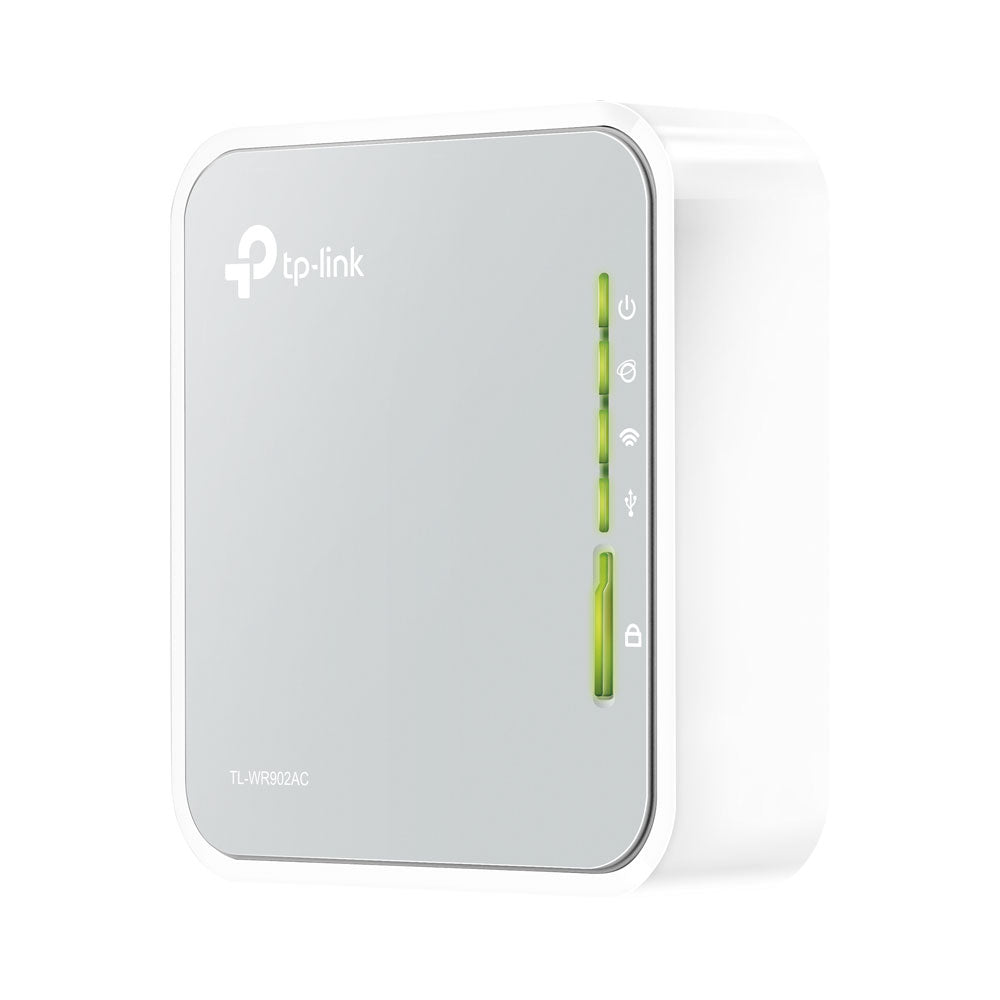

TP-LINK AC750 WI-FI TRAVEL ROUTER

FEATURES • Travel-Sized Design: Conveniently small and light to pack and take on the road, creating Wi-Fi network via Ethernet or WISP • Dual Band AC750 Wi-Fi - Strong, fast connection for HD streaming on all your devices • One Switch for Multiple Modes: Perfect for Wi-Fi at home, your hotel room or on the road • Flexible Power: Micro USB port to an adapter, portable charger or laptop • Versatile USB: For file sharing or providing power supply to mobile devices SPECIFICATIONS WIRELESS • Standards: Wi-Fi 5 • IEEE 802.11ac/n/a 5 GHz • IEEE 802.11n/b/g 2.4 GHz • WiFi Speeds: AC750 • 5 GHz: 433 Mbps (802.11ac) • 2.4 GHz: 300 Mbps (802.11n) • Wi-Fi Range: 2 Bedroom Houses • 2× Fixed Antennas (Internal) • Wi-Fi Capacity: Medium • Dual-Band: Allocate devices to different bands for optimal performance • Working Modes: Router Mode, Access Point Mode, Range Extender Mode, Client Mode, Hotspot Mode (WISP Mode) HARDWARE • Processor: Single-Core CPU • Ethernet Ports: 1× 10/100 Mbps WAN/LAN Port • USB Support: 1× USB2.0 Port • Supported Partition Formats: NTFS, FAT32 • Supported Functions - FTP Server - Media Server - Buttons: Reset Button - Mode Switch - Power: 5V ⎓ 2A SECURITY • WiFi Encryption: WEP, WPA, WPA2 • Network Security: SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • Guest Network - 1× 5 GHz Guest Network - 1× 2.4 GHz Guest Network SOFTWARE • Protocols: IPv4, IPv6 • Parental Controls: URL Filtering, Time Controls • WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP • Quality of Service: QoS by Device • NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP • IPTV: IGMP Proxy • DHCP: Address Reservation, DHCP Client List, Server • DDNS: NO-IP, Comex, DynDNS • Management: Tether App, Webpage PHYSICAL • Dimensions: 74 × 67 × 22mm • Weight: 56.7g OTHER • System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser • Cable or DSL Modem (if needed) • Subscription with an internet service provider (for internet access) • Certifications: FCC, CE, RoHS • Environment - Operating Temperature: 0°C~40°C - Storage Temperature: -40°C~70°C - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing TEST DATA • WiFi Transmission Power: CE <20dBm (2.4GHz), <23dBm (5GHz) • WiFi Reception Sensitivity - 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm - 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm
