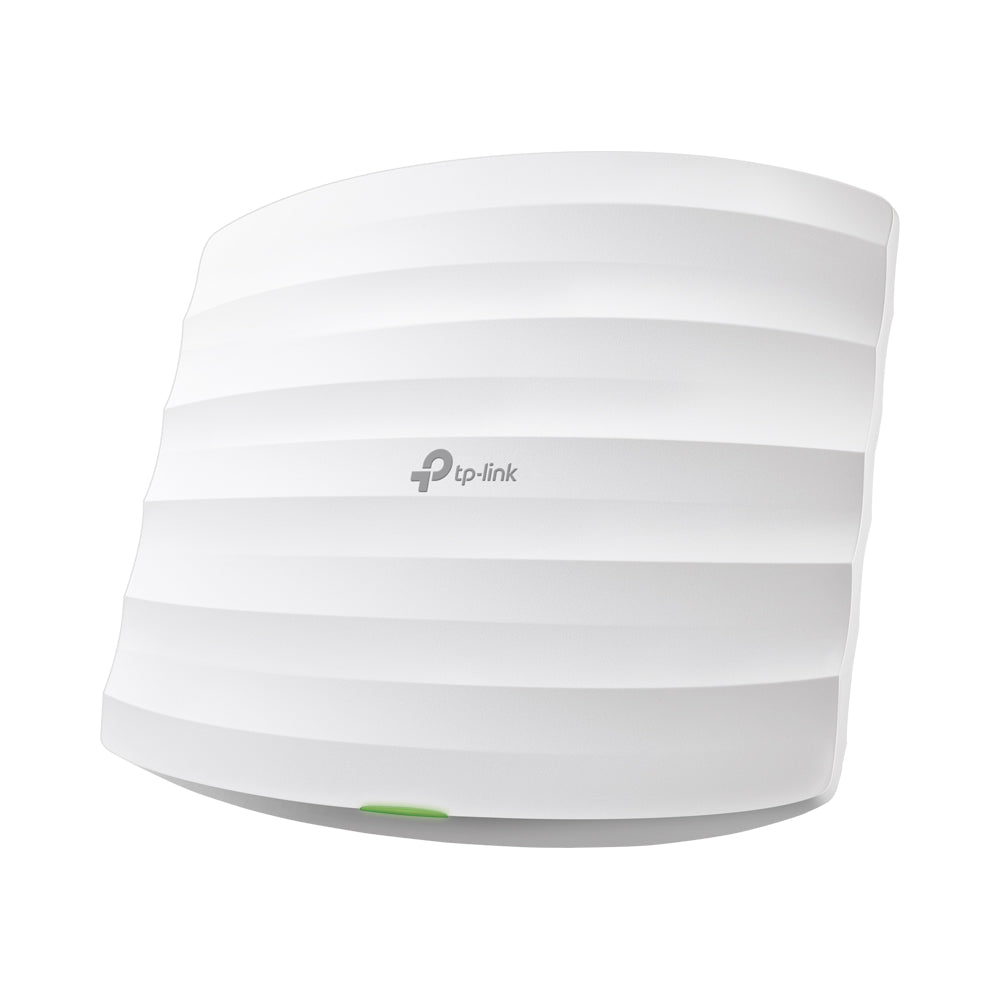

TP-LINK AC1350 DUAL BAND W/LESS CEILING ACCESS POI

FEATURES • AC1350 Dual-Band Wi-Fi - 450Mbps on 2.4GHz plus 867Mbps on 5.0GHz delivering combined speeds up to 1,317Mbps • Omada SDN Integrated - Supports Zero-Touch Provisioning, centralised cloud management and intelligent monitoring • Centralised Cloud Management - Manage easily via cloud access and the Omada App • Seamless Roaming - Maintains uninterrupted video streaming and voice calls while users move between access points • Flexible PoE Deployment - Supports 802.3af PoE and Passive PoE for versatile installation options (PoE adapter is not included) • Secure Guest Network - Multiple authentication options including SMS and Voucher with robust wireless protection • Advanced Wireless Technologies - MU-MIMO, Band Steering, Airtime Fairness and Beamforming optimise performance and efficiency SPECIFICATIONS HARDWARE FEATURES INTERFACE • 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3af PoE and Passive PoE) PHYSICAL SECURITY LOCK • Yes BUTTON • Reset POWER SUPPLY • 802.3af PoE • 24V Passive PoE (+4,5pins; -7,8pins) • PoE Adapter Not Included POWER CONSUMPTION • 12.6W DIMENSIONS (W × D × H) • 205.5 × 181.5 × 37.1mm ANTENNA • 3× Internal Omni Antennas • 2.4GHz: 4dBi • 5.0GHz: 5dBi MOUNTING • Ceiling / Wall Mounting Kits Included WIRELESS FEATURES WIRELESS CLIENT CAPACITY • 220+ Clients WIRELESS STANDARDS • IEEE 802.11ac/n/g/b/a FREQUENCY • 2.4GHz and 5.0GHz SIGNAL RATE • 5.0GHz: up to 867Mbps • 2.4GHz: up to 450Mbps WIRELESS FUNCTIONS • Multiple SSIDs (up to 16× SSIDs, 8× per Band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control • QoS (WMM) • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics (SSID/AP/Client Based) WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support TRANSMISSION POWER CE • ≤20dBm (2.4GHz, EIRP) • ≤23dBm (5.0GHz, EIRP) FCC • ≤24dBm (2.4GHz) • ≤22dBm (5.0GHz) MANAGEMENT • Omada App CENTRALISED MANAGEMENT • Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller CLOUD ACCESS • Yes (via OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller) • EMAIL ALERTS • LED On/Off Control • Management MAC Access Control • SNMP v1/v2c • System Logging (Local/Remote Syslog) • SSH • Web-Based Management (HTTP/HTTPS) • L3 Management • Multi-Site Management • Management VLAN • Zero-Touch Provisioning (Requires Omada Cloud-Based Controller) CERTIFICATION • CE • FCC • RoHS SYSTEM REQUIREMENTS • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11 • Linux ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90%RH Non-Condensing • Storage Humidity: 5~90%RH Non-Condensing
