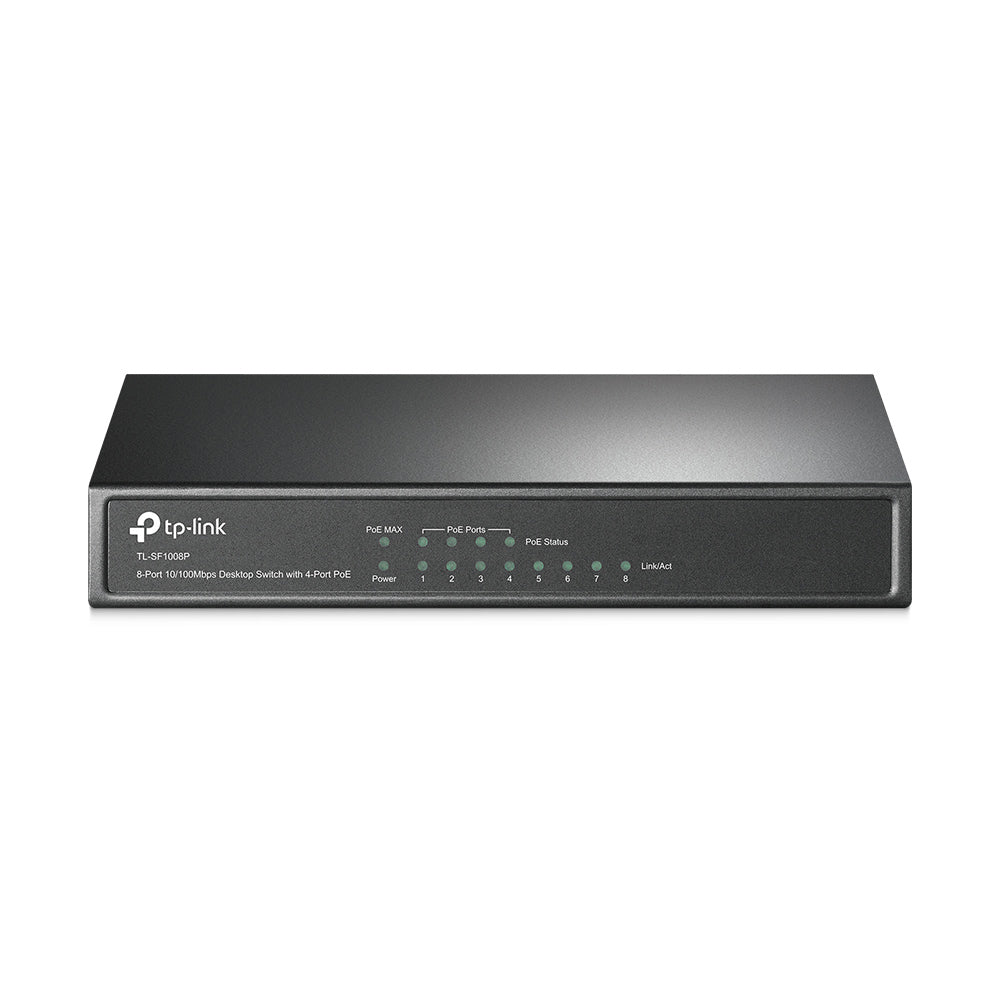

TP-LINK 8-PORT FE 4-PORT POE DESKTOP SWITCH

FEATURES • With four PoE ports, transfers data and power on one single cable • Working with IEEE 802.3af compliant PDs, expands home and office network • Supports PoE power up to 15.4W for each PoE port • Supports PoE power up to 57W for all PoE ports • Requires no configuration and installation SPECIFICATIONS HARDWARE FEATURES • Interface: 8 10/100Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • Physical Security Lock: No • Power Consumption: Maximum (PoE on): 60.2W (220V/50Hz) • Maximum (PoE off): 3.2W (220V/50Hz) • External Power Supply: External Power Adapter(Output: 48VDC / 1.25A) • PoE Ports (RJ45)Standard: 802.3 af compliant • PoE Ports: Port1- Port4 • Power Supply: 57W • Backbound Bandwidth: 1.6Gbps • Mac Address Table: 2K • Dimensions ( W x D x H ): 171 x 98 x 27mm • Max Power Consumption: 2.66(220/50Hz. no PD connected) • 65.92(220/50Hz. with 57W PD connected) • Max Heat Dissipation: 9.08BTU/h(no PD connected) • 224.92BTU/h(with 57W PD connected) SOFTWARE FEATURES • Transmission Method: Store-And-Forward • Advanced Functions: Compatible With IEEE 802.3af Compliant PDs • Priority Function • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode OTHERS • Certification: FCC, CE, RoHS • Consumption: 2.3 watts (max. no PD connected) • 59.3 watts (max. with 57w PD connected)
