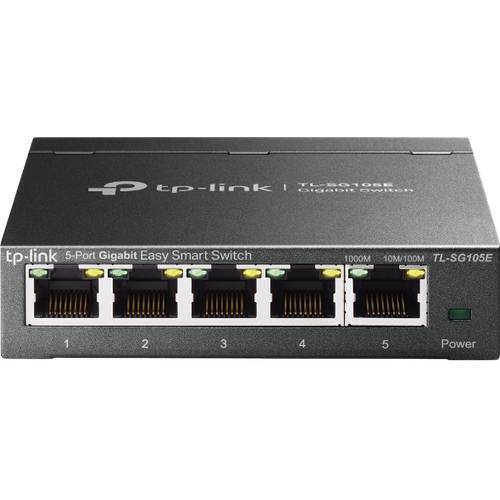

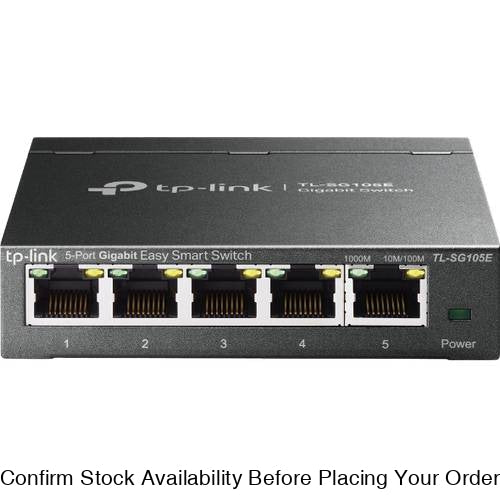

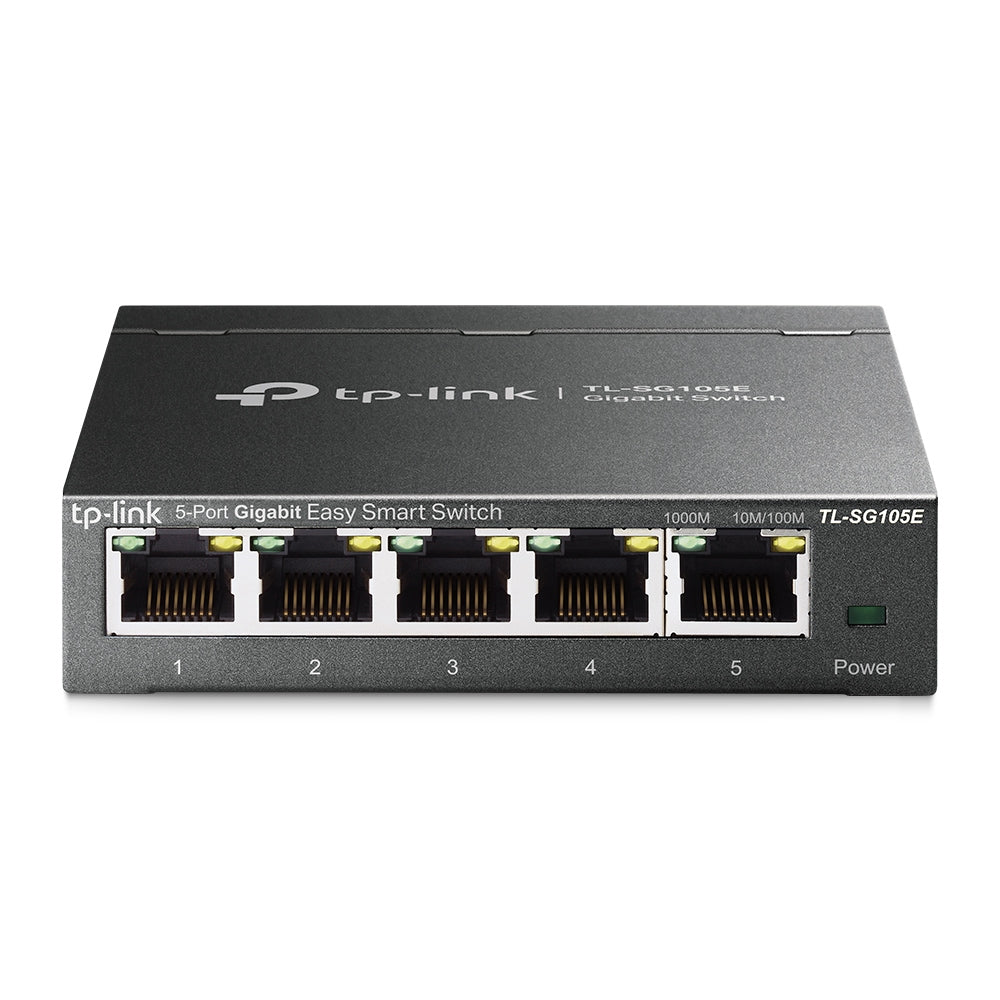

TP-LINK 5-PORT GIGABIT EASY SMART SWITCH

FEATURES • 5 10/100/1000Mbps RJ45 ports • Plug and play, with no configuration required • Durable metal casing of superior quality and professional appearance • Intelligent management via a web user interface and downloadable utility • Green technology reduces power consumption SPECIFICATIONS HARDWARE FEATURES • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p • Interface: 5 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • Power Supply: External Power Adapter(Output: 9VDC/0.6A) • Dimensions (W x D x H): 100 x 98 x 25mm • Max Power Consumption: 2.66W(220V/50Hz) • Max Heat Dissipation: 9.07BTU/h PERFORMANCE • Packet Forwarding Rate: 7.4Mpps • MAC Address Table: 2K • Packet Buffer Memory: 1Mb • Jumbo Frame: 15KB SOFTWARE FEATURES • Quality of Service: Support Port-based /802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control • L2 Features: IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN • Transmission Method: Store-And-Forward OTHERS • Certification: FCC, CE, RoHS • System Requirements: Microsoft Windows for running Utility
