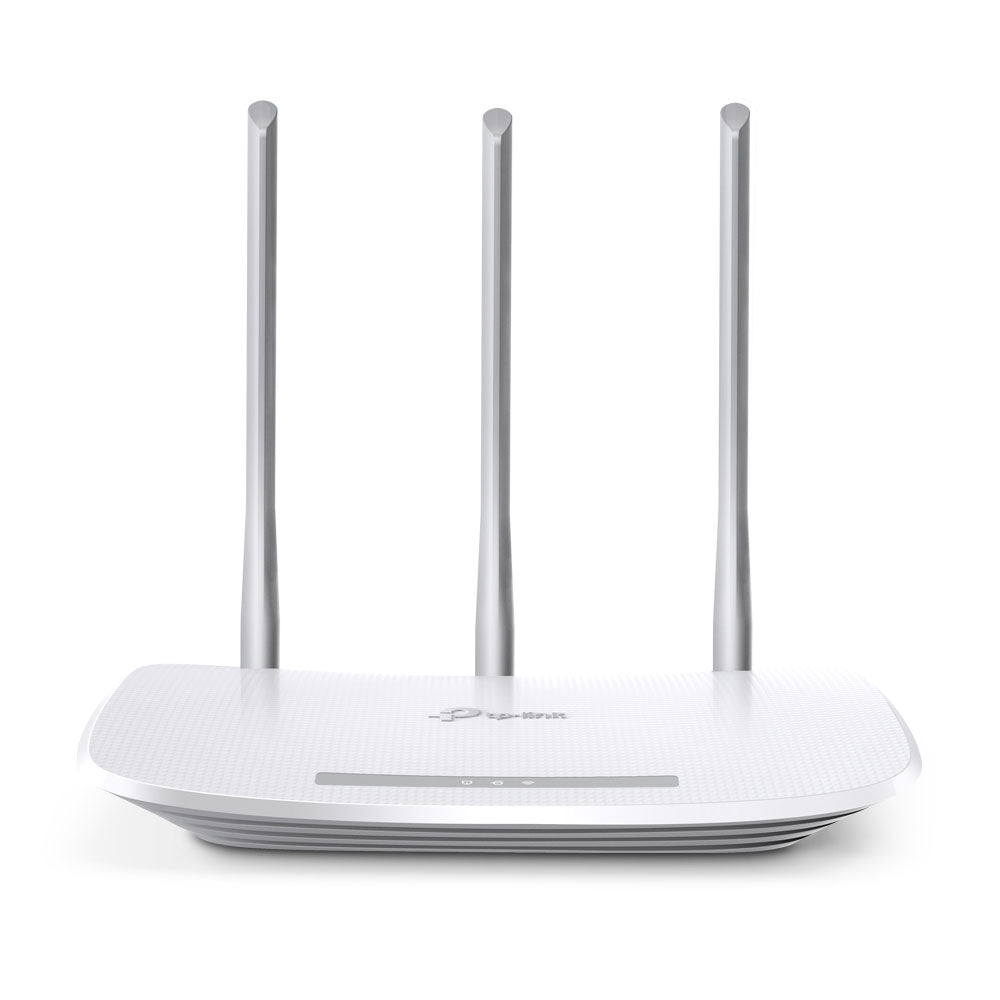

TP-LINK 300MBPS WIRELESS N ROUTER

FEATURES • 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming • Three antennas greatly increase the wireless robustness and stability • Easy wireless security encryption at a push of WPS button • IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC • Compatible with IPv6 -the more recent Internet Protocol version • TP-LINK Tether App allows quick installation and easy management using any mobile device SPECIFICATIONS HARDWARE • Interface: 4 10/100Mbps LAN PORTS, 1 10/100Mbps WAN PORT • Button: Reset Button, WPS Button • External Power Supply: 9VDC / 0.6A • Wireless Standards: IEEE 802.11n, IEEE 802.11g,: IEEE 802.11b • Antenna: 3 x 5dBi fixed Omni Directional, Antennas (RP-SMA) WIRELESS FEATURES • Frequency: 2.4-2.4835GHz • Signal Rate: - 11n: Up to 300Mbps(dynamic) - 11g: Up to 54Mbps(dynamic) - 11b: Up to 11Mbps(dynamic) • Reception Sensitivity: - 270M: -70dBm@10% PER - 130M: -74dBm@10% PER - 108M: -74dBm@10% PER - 54M: -77dBm@10% PER - 11M: -93dBm@8% PER - 6M: -95dBm@10% PER - 1M: -98dBm@8% PER • Transmit Power: CE <20dBm, FCC <30dBm • Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics • Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK SOFTWARE FEATURES • Quality of Service: WMM, Bandwidth Control • WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), Bigpond • Management: Access Control, Local Management; Remote Management • DHCP: Server, DHCP Client List, Address Reservation • Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ • Dynamic DNS: DynDns, Comexe, NO-IP • VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head) • Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management • Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding • Protocols: Support IPv4 and IPv6 • Guest Network: 2.4GHz Guest Network x1 OTHERS • Certification: CE, RoHS PHYSICAL Dimensions: ( W x D x H ) 230 x 144 x 35 mm
