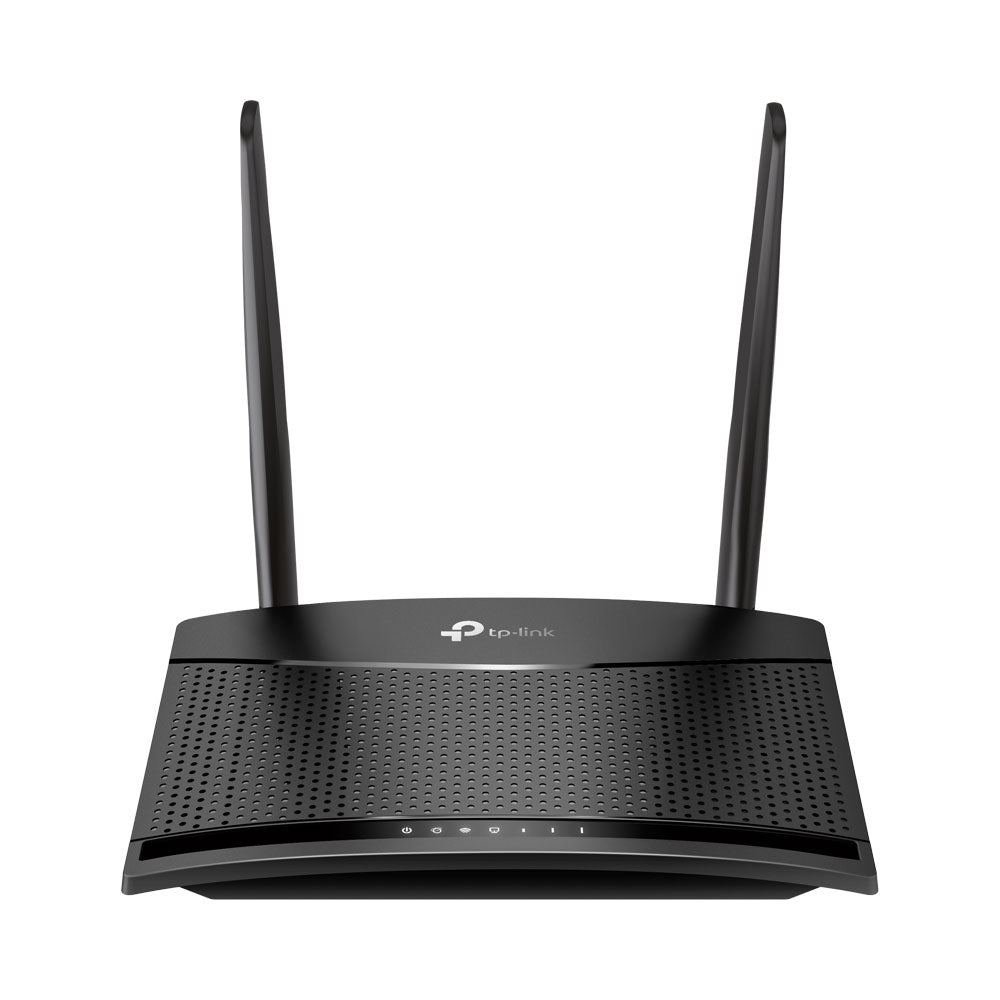

TP-LINK 300MBPS WIFI N 4G LTE 1-WAN 1-LAN ROUTER

FEATURES • Cutting-edge 4G network - Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150Mbps • Plug a SIM card and play - No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests • Two detachable advanced LTE antennas - Enjoy stable and efficient connections to every device thanks to the two external antennas • Wi-Fi router mode - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection HARDWARE FEATURES Interface1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot ButtonWPS/Reset Button External Power Supply(EU)9V/0.85A Dimensions ( W x D x H )6.06×4.49×1.42 in ( 154×114×36 mm) Antenna2 Detachable External 4G LTE Antennas WIRELESS FEATURES Wireless StandardsIEEE 802.11b/g/n Frequency2.4 GHz Signal Rate300 Mbps Reception Sensitivity11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm Transmit Power< 20 dBm (2.4 GHz) Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics WAN FailoverYes Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Network Type4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) SOFTWARE FEATURES SecurityIPv4 SPI Firewall, IP and MAC Address Binding Operating Modes3G/4G Router, Wireless Router WAN TypeDynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) ManagementLocal Management, Remote Management DHCPServer, DHCP Client List, Address Reservation Port ForwardingALG, Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNSDynDns, NO-IP ProtocolsIPv4, IPv6 Guest Network2.4 GHz Guest Network AdministrationUpgrade Firmware, Factory Default, System Log, Diagnostic Tools OTHERS CertificationCE, RoHS Package Contents300 Mbps Wireless N 4G LTE TL-MR100 Power Adapter RJ45 Ethernet Cable Quick Installation Guide RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card EnvironmentOperating Temperature: 0°C~40°C (32℉ ~104℉) Storage Temperature: -40°C~70°C (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
