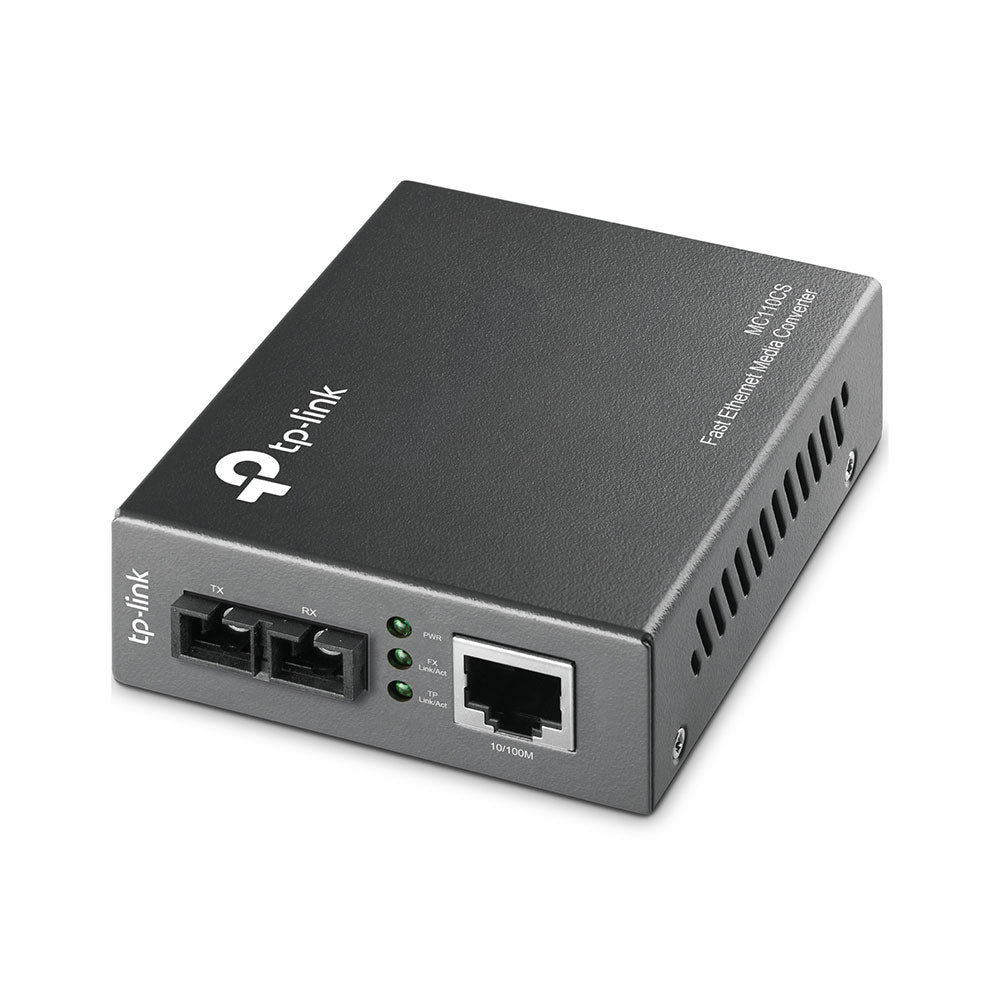

TP-LINK 100MBIT RJ45 TO SINGLE-MODE SC FIBRE

FEATURES • Fast Ethernet Media Conversion - Converts 10/100Mbps Ethernet to single-mode fibre for long-distance connectivity • Long-Range Fibre Transmission - Supports fibre distances up to 20km for extended network coverage • Auto-Negotiation Support - Automatically detects and adjusts optimal speed and duplex mode • Auto MDI/MDIX Support - Eliminates the need for crossover cables for easier deployment • Reliable Data Transmission - IEEE 802.3x flow control ensures stable and efficient data transfer • Plug-and-Play - Simple installation with no configuration required SPECIFICATIONS STANDARDS AND PROTOCOLS • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x BASIC FUNCTION • Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode • Full Duplex Flow Control (IEEE 802.3x) • Half Duplex Flow Control (Back Pressure) • Extends Fibre Distance up to 20km PORTS • 1× 100M SC/PC Port • 1× 10/100M RJ45 Port (Auto MDI/MDIX) WAVE LENGTH • 1310nm NETWORK MEDIA 10BASE-T • UTP CAT3, 4, 5 Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) NETWORK MEDIA 100BASE-TX • UTP CAT5, 5e Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) NETWORK MEDIA 100BASE-FX • Single-Mode Fibre LED INDICATORS • PWR • Link/Act DIMENSIONS (W × D × H) • 94.5 × 73 × 27mm POWER SUPPLY • External Power Supply MAX. POWER CONSUMPTION • 2.4W SAFETY AND EMISSION • FCC • CE • RoHS
