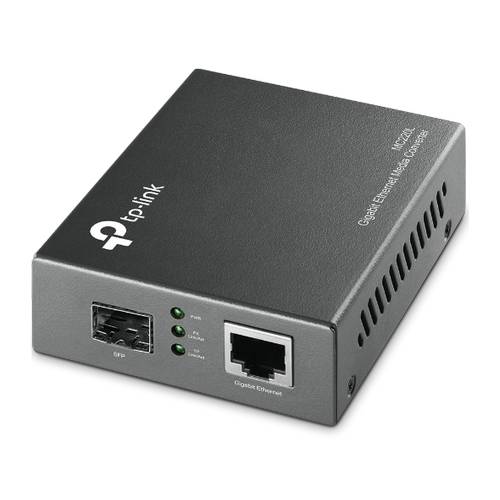

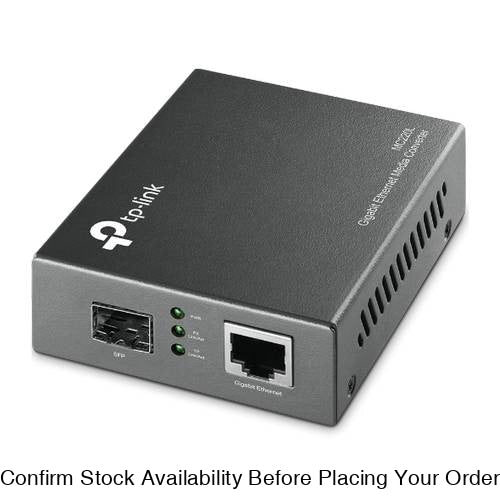

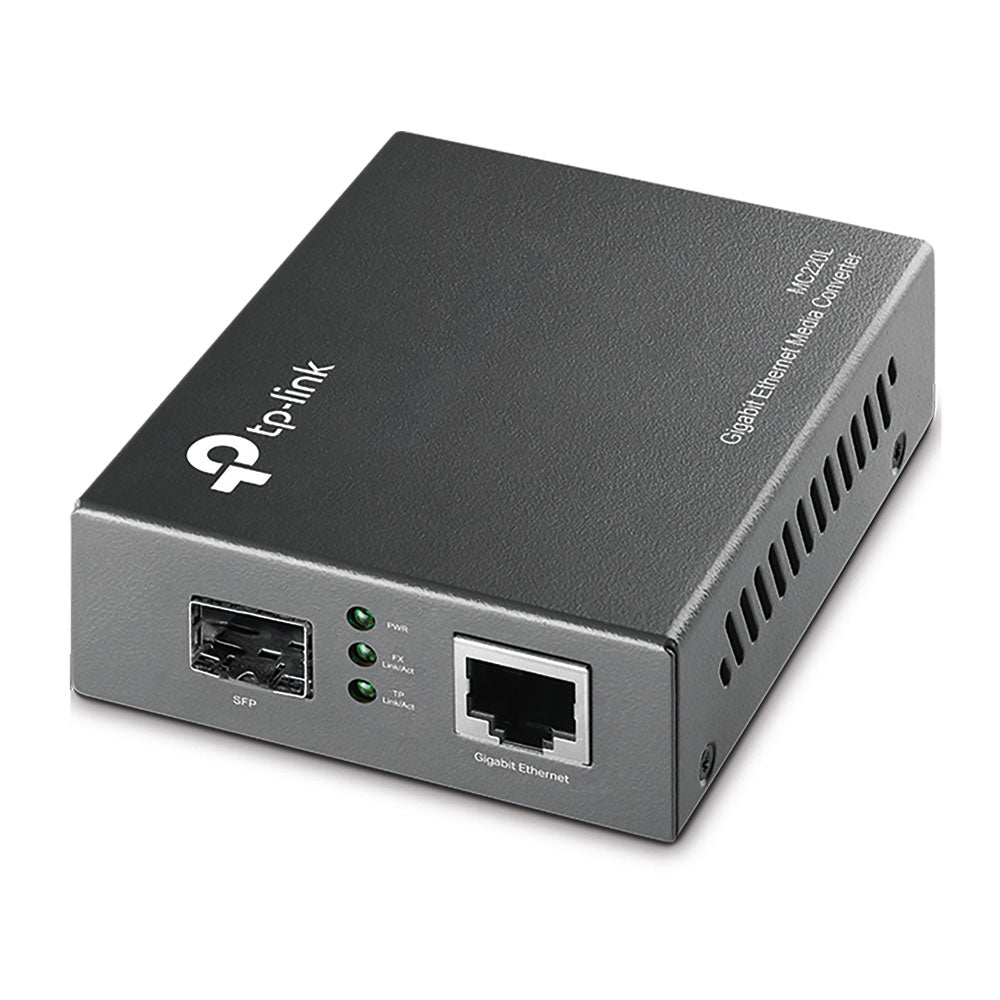

TP-LINK 1000MBPS RJ45 - GBIT CHASSIS ONLY

FEATURES • Gigabit Ethernet Connectivity - 10/100/1000Mbps Auto-Negotiation RJ45 port with Auto-MDI/MDIX support • Auto-Negotiation Support - Automatically selects Half-Duplex or Full-Duplex transfer mode for optimal performance • IEEE Standards Compliance - Fully compliant with IEEE 802.3ab and IEEE 802.3z standards • Hot-Swappable SFP Port - FX port supports hot-swappable SFP modules for flexible fibre deployment • Flexible Fibre Distance - Maximum transmission distance depends on the installed SFP module SPECIFICATIONS STANDARDS AND PROTOCOLS • IEEE 802.3i • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3z BASIC FUNCTION • Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode • Maximum Transmission Distance Depends on the Inserted SFP Module PORTS • 1× 1000M SFP Port • 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX) WAVE LENGTH • Depends on the Used SFP Module NETWORK MEDIA 1000BASE-X • Multi-mode / Single-mode SFP Module NETWORK MEDIA 1000BASE-T • UTP CAT5, 5e Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) LED INDICATORS • PWR • Link/Act DIMENSIONS (W × D × H) • 94.5 × 73 × 27mm POWER SUPPLY • External Power Adapter MAX. POWER CONSUMPTION • 1.7W SAFETY AND EMISSION • FCC • CE • RoHS
