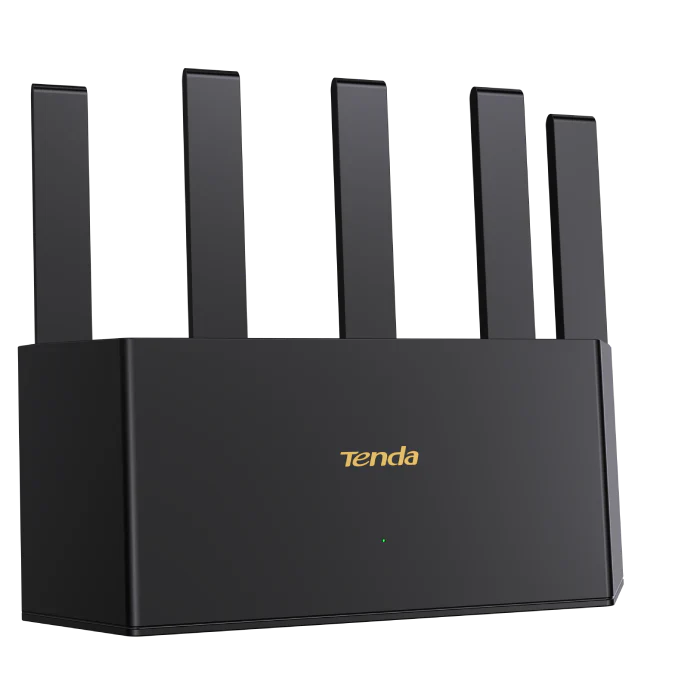

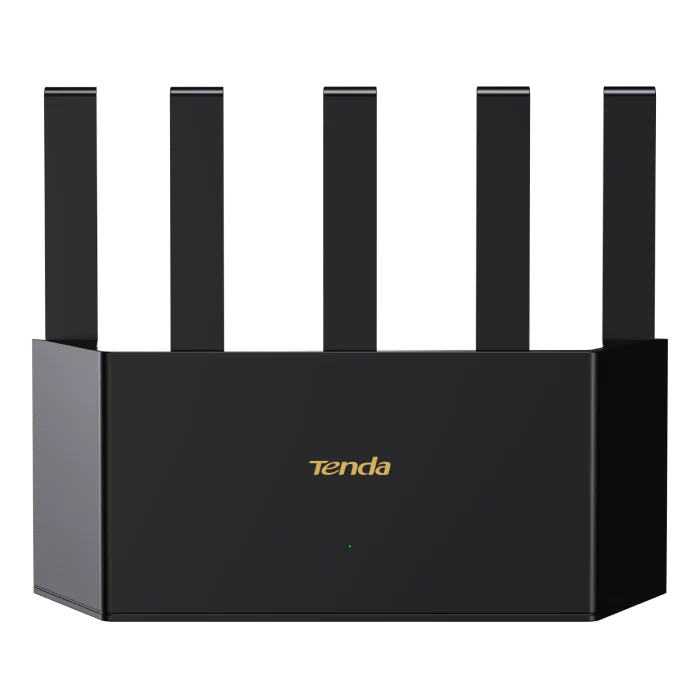

The Tenda TX12L Pro is a Wi-Fi 6 dual-band gigabit router designed for high-performance users. It delivers speeds up to 2976Mbps (5GHz: 2402Mbps, 2.4GHz: 574Mbps) and features a dual-core 1.3GHz processor for stability. Equipped with 5 external antennas and high-power FEMs, it offers strong wall penetration and extended coverage.
Key features:
- Wi-Fi 6 technology for faster speeds & lower latency
- OFDMA + MU-MIMO for efficient multi-device connectivity
- Parental controls, VPN support, and security features
- Multiple modes: Router, AP, Repeater
- Smart app & web management
Specifications:
Standards & Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interfaces
1 × 10/100/1000Mbps WAN port
3 × 10/100/1000Mbps LAN ports
Antenna
5 × external antennas
Buttons
1 × WPS/Reset button
Power
Input: AC 100-240V ~ 50/60Hz
Output: DC 12V 1A
LED Indicator
1 × LED
Dimensions
244 × 56 × 200mm (L × W × H)
Wireless Standards
IEEE 802.11ax/ac/n/a (5 GHz)
IEEE 802.11ax/n/b/g (2.4 GHz)
Data Rate
5 GHz: Up to 2402 Mbps (802.11ax, HE160)
2.4 GHz: Up to 574 Mbps (802.11ax)
Frequency
CE:
2.4G: 2412-2472MHz (CH1-CH13)
5G: 5150-5350MHz (CH36-CH64)
FCC:
2.4G: 2412-2462MHz (CH1-CH11)
5G: 5150-5350MHz (CH36-CH64),
Wireless Security
WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS (Wi-Fi Protected Setup) fast encryption
Internet Connection Types
PPPoE, Dynamic IP, Static IP
PPPoE (Russia), PPTP (Russia), L2TP (Russia)
Unify, Maxis, Maxis-special, Celcom, Digi
Network Protocols
IPv4 & IPv6
Operating Modes
Router Mode
AP Mode
Universal Repeater Mode (Client+AP, WISP)
Parental Control
Client Filter
URL Filter
Time Limit
DHCP Features
DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation
Virtual Server Features
Port Forwarding
DMZ Host
UPnP
Firewall Features
ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping from WAN
DDNS Support
DynDNS, No-IP, Oray, 88IP
VPN Support
IPSec Transparent Transmission
PPTP Transparent Transmission
L2TP Transparent Transmission
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client
Special Features
Wi-Fi+ (Mesh System)
Smart Diagnosis
IPTV
IPv6
Smart LED On/Off
Other Functions
Support App and Web Management
Bandwidth Control
Guest Network
MAC Address Clone
Blacklist and Whitelist Support
Unify 2.4 GHz & 5 GHz
Static Routing
Remote Web Management
Backup & Restore Configurations
Online Firmware Upgrade
Environmental Specifications
Operating Temperature: 0 ~ 40
Storage Temperature: -40 ~ 70
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)
Certifications
CE, FCC, RoHS
What's in the box
1 x Router
1 x RJ45 Cable
1 x Power Adapter
1 x Quick Install Guide
