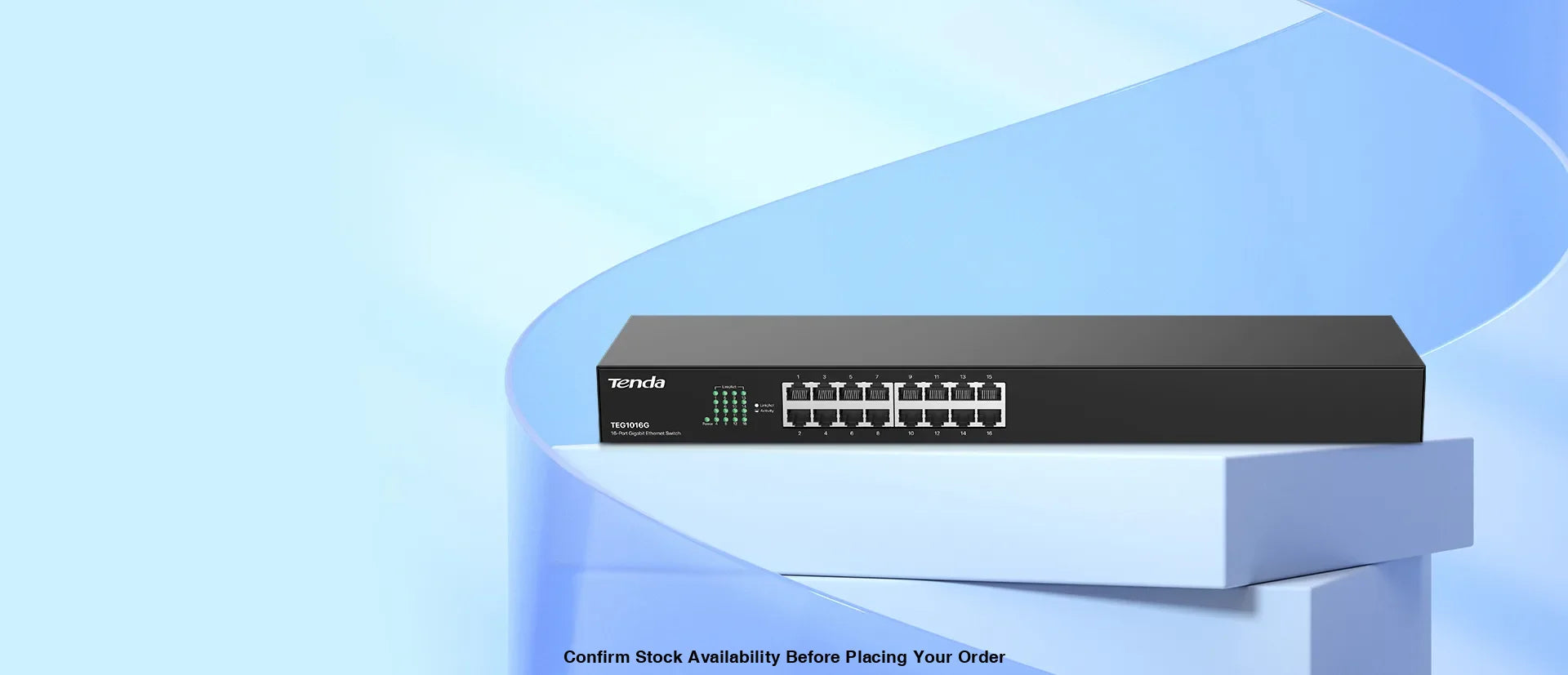

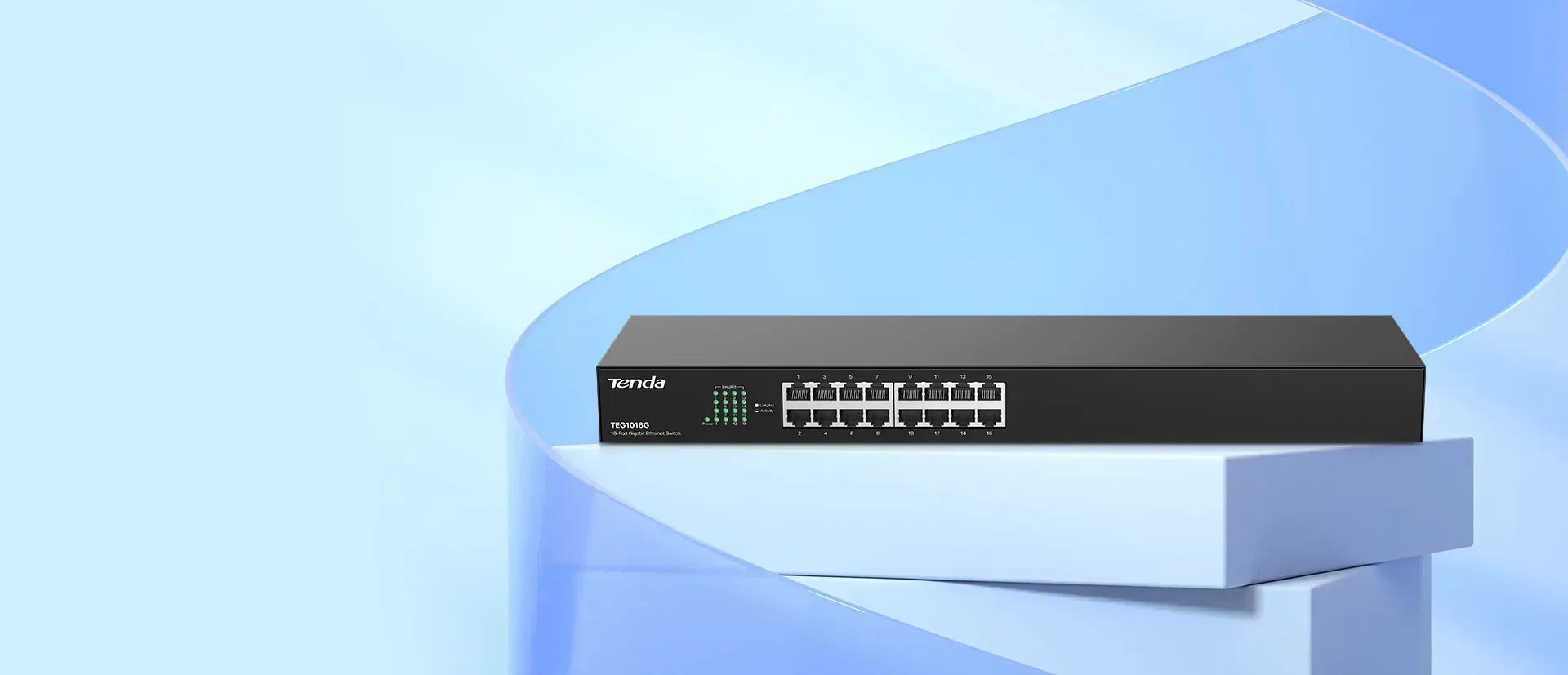

TENDA 16-Port Gigabit Ethernet Switch (TE-TEG1016G)

TEG1016G is a 16-port gigabit Ethernet switch independently designed by Tenda. The switch supports wire-speed forwarding of all ports to ensure smooth transmission of large files and video streaming. It features a compact metal body, and supports desktop, wall and rack mounting. As a flexible and simple-to-use device, it can be connected to such network devices as computers and network cameras. It is your ideal choice for video surveillance and wired networking in such scenarios as SMBs, communities, factories, and schools.

Network standards IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
LED Indicator Power
Link/Act
Interfaces (16)1GE RJ45 ports
Transmission media Recommended: CAT5/5e UTP or better

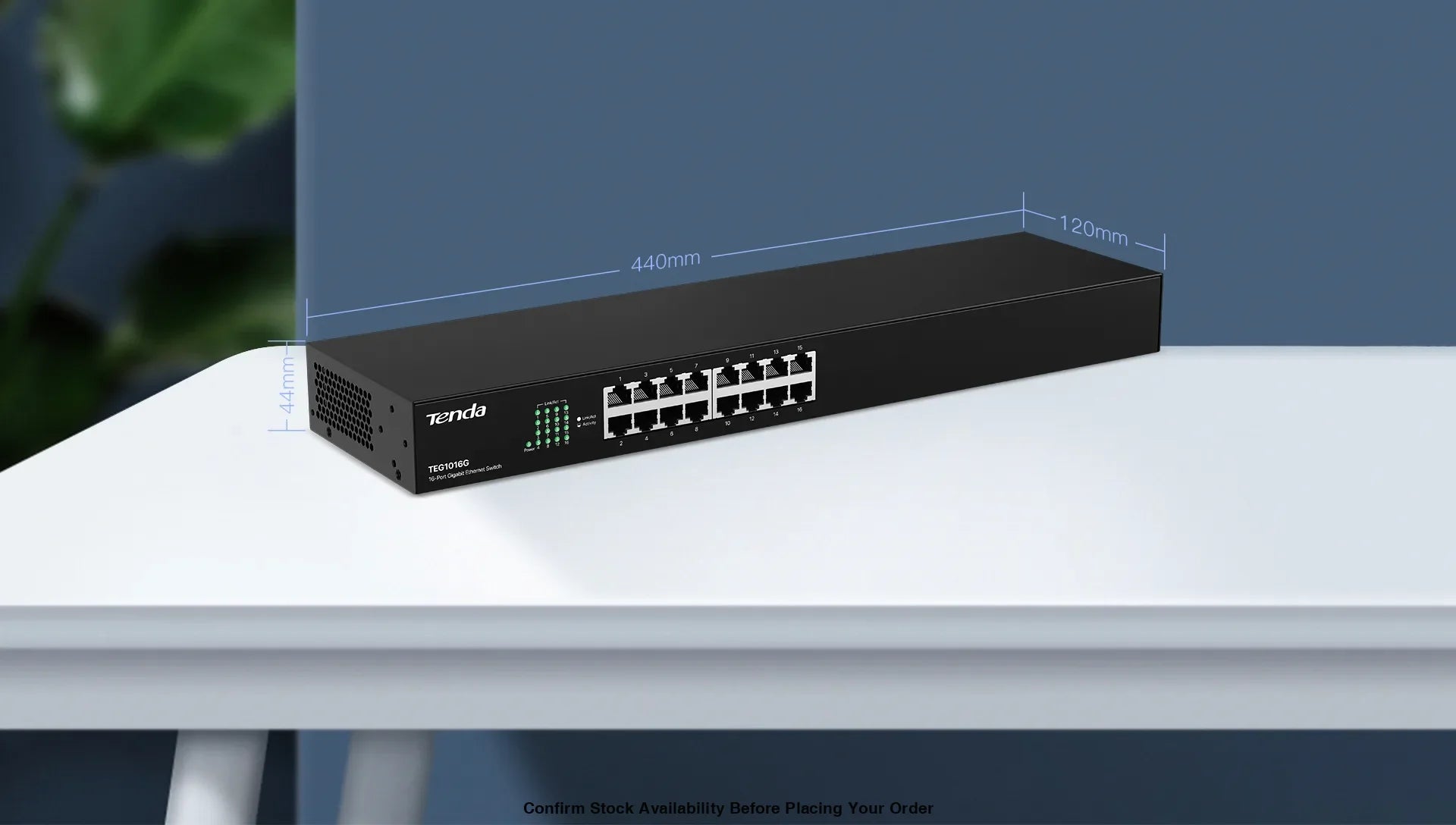

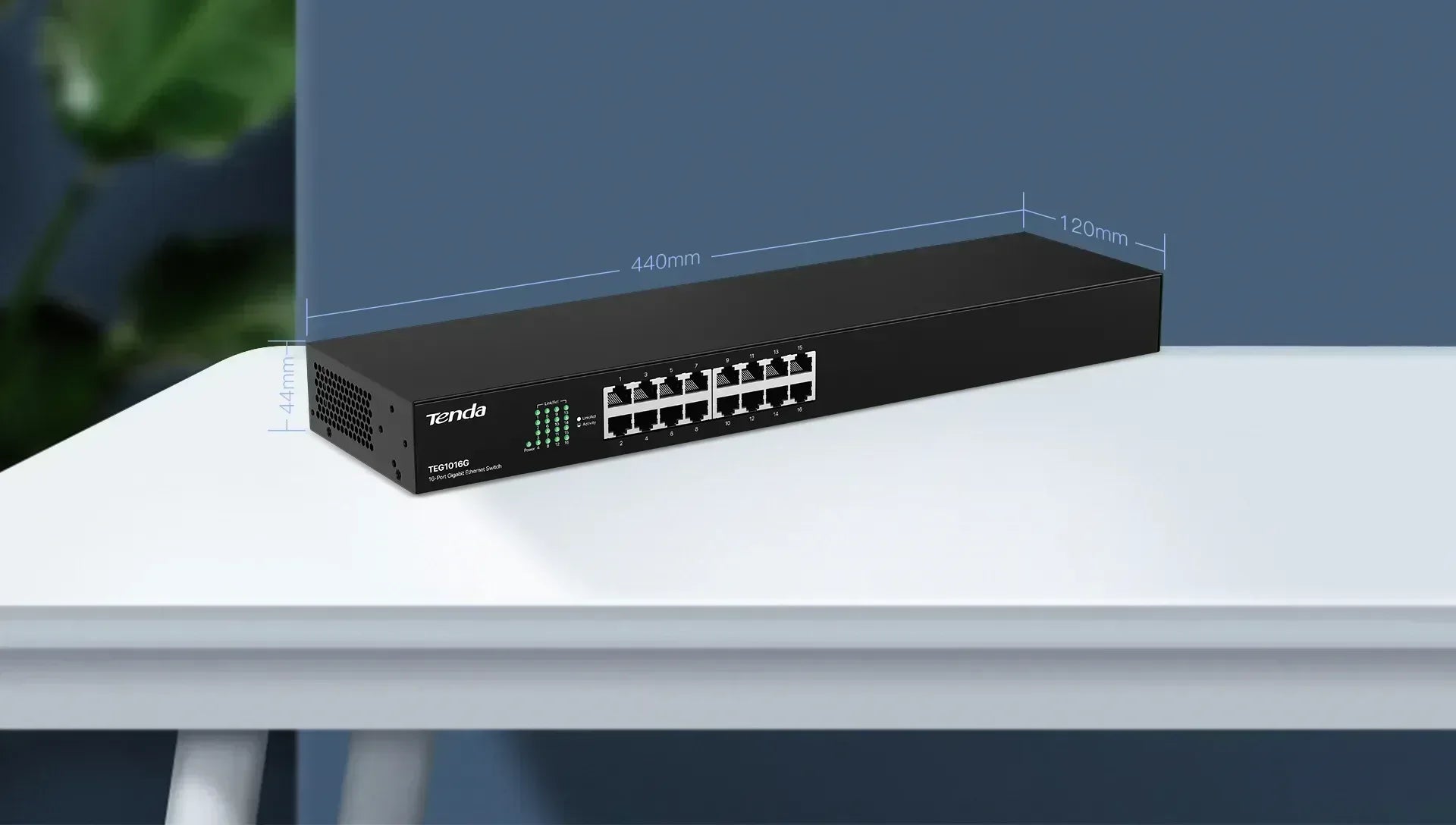

Dimensions 440mmx120mmx44mm
Material Metal
Level of protection Port: 6 KV
Powera3ba4 KV
Forwarding mode Store-and-forward
Switch capacity 32Gbps
Forwarding rate 23.80Mpps
Buffer 4Mb
MAC address table 8K
Power method 100-240V AC 50/60Hz
Power consumption Max:<12W

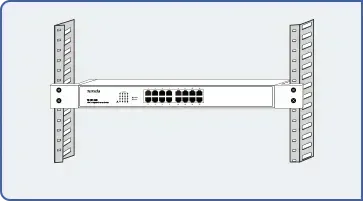

Mounting Rack mounting

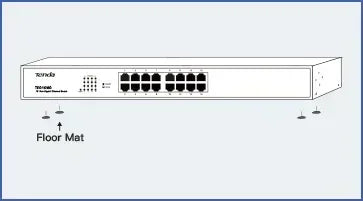

Desktop mounting

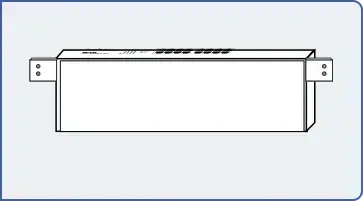

Wall mounting
Environment Operating Temperature: 0 ~45
Storage Temperature: -40 ~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certifications FCC, CE, RoHS
Protocols CDMA/CD
MAC address learning Auto-learning and Auto-Updating

What's in the box
1 x Switch
1 x Power Cable
1 x Bracket
1 x Pack Of Screw
1 x Quick Installation Guide
