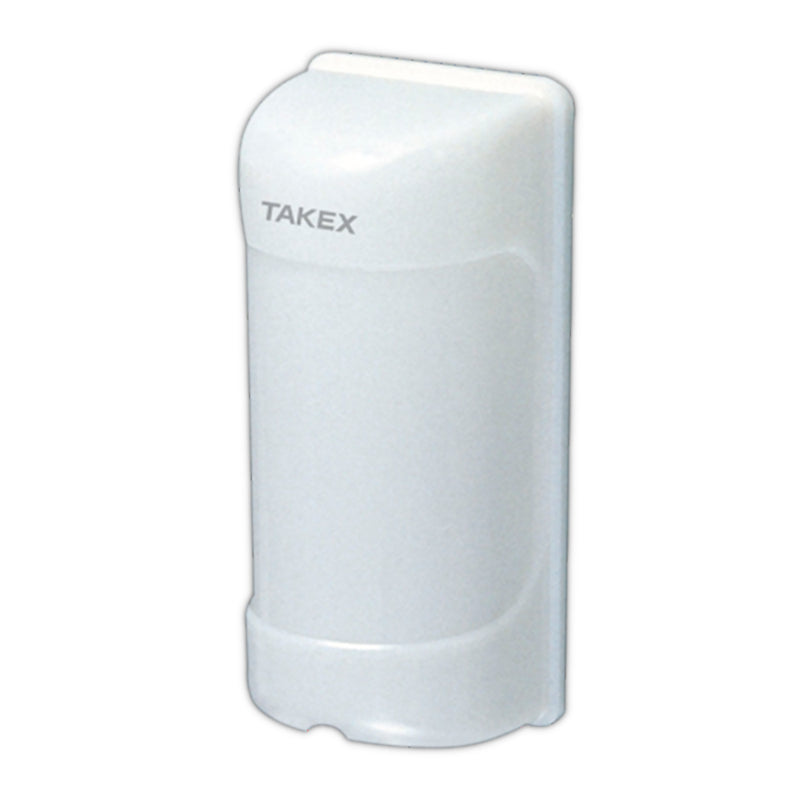

Takex MS100E

Takex MS-100E is a passive infrared sensor, designed to detect far-infrared rays emitted from human body.
For wide applications, indoor or outdoor, as a switch of illuminator or various home automation devices.

Vertical Installation:
Wide Angle- 64 degrees 12 meters
Curtain- 6 degrees 10 meters
Long Range Curtain- 6 degrees 20 meters

Horizontal Installation:
Curtain- 64 degrees 4 meters
Celling mount- 60 Degrees 3 meters
Wall Mount- 30 degrees 3 meters

Features:
Rotatable Sensors
Passive Infrared Detection
Dry contact relay output Form N.C./N.O. selectable
Adjustable Sensitivity
Operating temperature: -20°C to +50°
Supplied with wide angle and long range lenses
Can be mounted vertically or horizontally
Coverage Vertical installation:
-Wide angle: 10m (5 pairs)
-Curtain: 10m (5 pairs)
-Long range: 20m (1 pair)
Coverage Horizontal installation:
-Vertical curtain: 3m (5 pairs)

Ceiling / wall mount attachments Excluded
See Technical data sheet for more information on installation.
