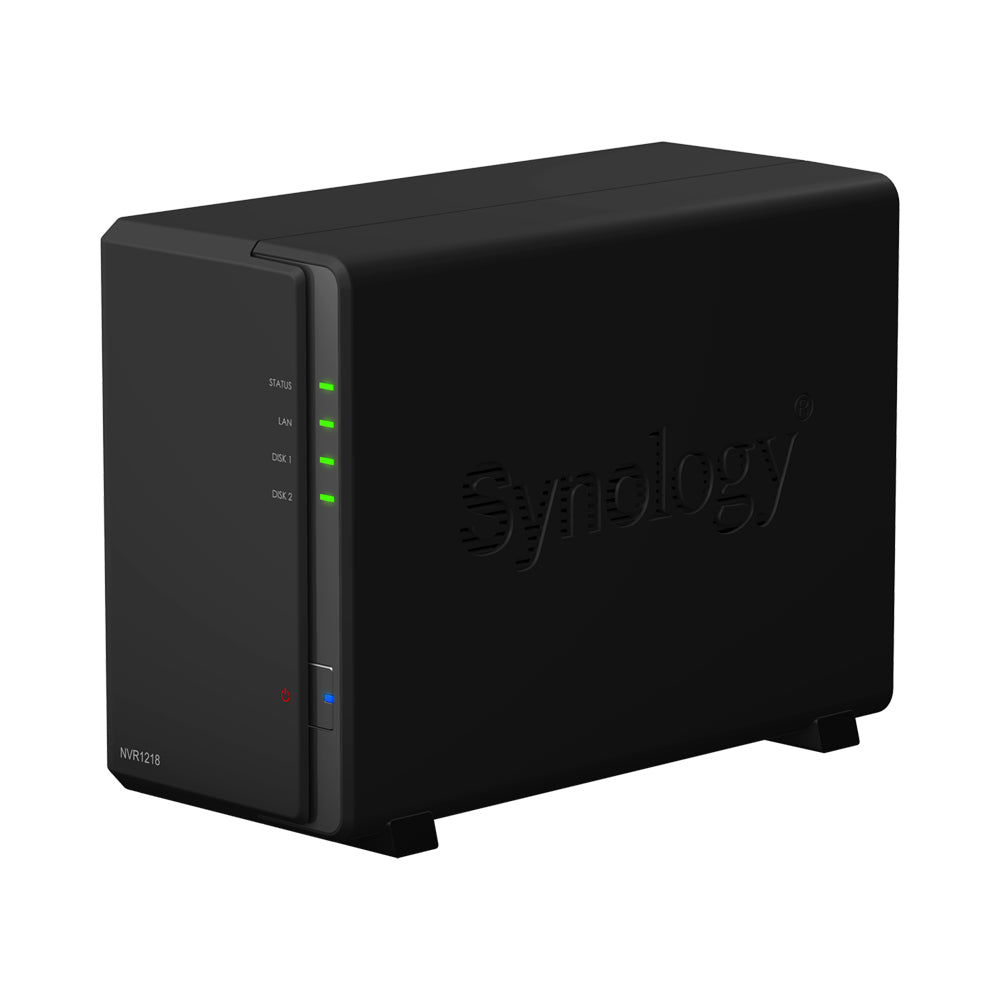

SYNOLOGY NVR1218 NVR, 1GB, DC, HDMI OUT - DISKLESS

FEATURES • Standalone Surveillance Solution: Built-in 1080p HDMI output for direct monitor connection • PC-Free Deployment: Easy installation without requiring a computer or internet connection • POS System Integration: Combines transaction records with surveillance footage for enhanced audit tracking • 4× Free Camera Licenses Included: Scalable up to 12× IP cameras • Mobile App Support: Monitor live feeds and recordings remotely via Synology mobile app • Energy-Efficient Operation: Power-saving NVR runs below 15W • Expandable Storage: Supports up to 7× HDDs with optional DX517 expansion unit SPECIFICATIONS Hardware • Configuration: Supports up to 12× Cameras (4× Camera Licenses Pre-Installed) • CPU: Embedded NVR SoC Dual-Core 1.0GHz • Memory: DDR3 1GB • Compatible Drive Type: 2× 3.5" SATA (Hard Drives Not Included) External Ports • 1× USB3.0, 2× USB2.0, 1× eSATA, 1× HDMI, 2× 3.5mm Audio Jack (Input/Output), 1× COM (For POS System Connection) Display and Network • Supported Video Output Resolution: 1920×1080 (1080p) @60Hz • LAN: 1× Gigabit (RJ45) • Supported USB Devices: USB Storage, Keyboard, Mouse, Joystick, UPS Physical • Dimensions (H × W × D): 165 × 100 × 225.5mm • Weight: 0.9kg Power and Environment • AC Input Power Voltage: 100~240VAC • Power Frequency: 50~60Hz, Single Phase • Power Consumption: 13.64W • Operating Temperature: Adapter: 0~40°C, Chassis: 5~45°C • Storage Temperature: -20~60°C • Relative Humidity: 5~95% RH • Agency Certifications: FCC Class B, CE Class B, BSMI Class B General Specification • File System: Internal ext4, External ext4, ext3, FAT, NTFS, HFS+ (Read Only) Supported RAID Type • Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5 (with DX517), RAID 6 (with DX517) Storage Management • Maximum Single Volume Size: 16TB • Maximum Internal Volume: 256× • Maximum Shared Folder: 256× Surveillance Station • Maximum IP Camera: 12× Channels (360fps @720p) Supported Video Codecs • MJPEG, MPEG-4, MxPEG, H.264, H.265 (MxPEG and H.265 Do Not Support Local Display) Recording Modes • Manual, Continuous, Motion Detection, I/O Alarm, Action Rule, Customised Playback • Timeline Playback, Frame-by-Frame, Digital Zoom, Embedded Watermark for Evidence Integrity Camera Support • ONVIF 2.6 (Profile-S Certified, Profile-G for Edge Recording) • PTZ Support • Adjustable Bit-Rate (Constant and Variable)
