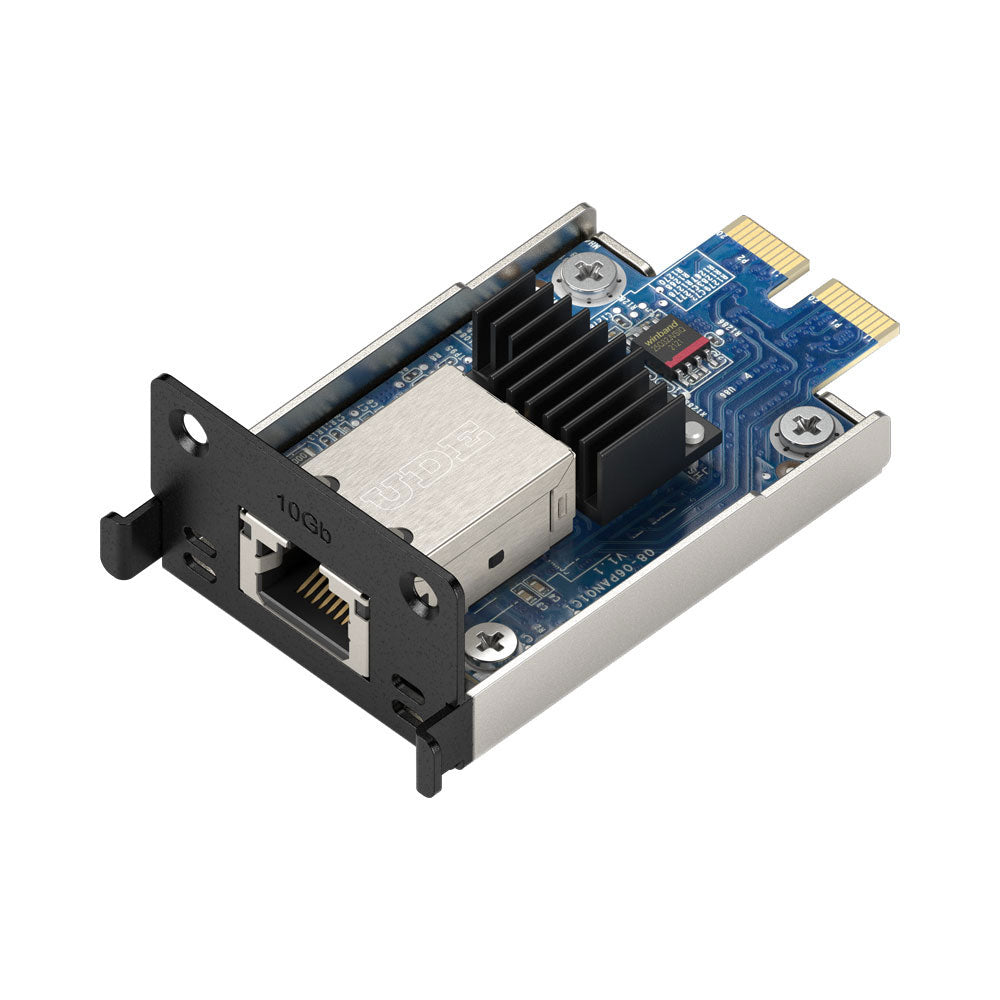

SYNOLOGY E10G22-T1-MINI 10G BASE-T

FEATURES • High Bandwidth - Expands system capabilities with 10GbE connectivity to support higher resolution video editing, concurrent backup ingestion and more • Flexible Integration - Supports 1 / 2.5 / 5 / 10GbE connections to work with nearly any RJ45 network environment • For Synology by Synology - Designed for maximum performance and reliability in Synology systems APPLIED MODELS • DP Series: DP340 • 25 Series: DS1525+ • 23 Series: DS923+, DS723+ • 22 Series: RS422+, DS1522+ • Note: DSM Version Requirement: 7.1.1-42962 Update 4 or Later Version SPECIFICATIONS General • Host Bus Interface: PCIe 3.0 x2 • Dimensions (H × W × D): 26.37 × 45.38 × 75.7mm • Operating Temperature: 0~40°C • Storage Temperature: -20~60°C • Relative Humidity: 5~95% RH Network • IEEE Specification Compliance: IEEE 802.3x Flow Control, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet, IEEE 802.3an 10Gbps Ethernet Data Transfer Rates • 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps Supported Features • 9KB Jumbo Frame • TCP/UDP/IP Checksum Offloading • Auto-Negotiation Between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s and 10Gb/s • TCP Segmentation Offload (TSO) • Large Send Offload (LSO) • Receive Side Scaling (RSS) • Generic Receive Offload (GRO) • Generic Segmentation Offload (GSO) Warranty • 3-Years (The Warranty Period Starts from the Purchase Date as Stated on Your Purchase Receipt)
