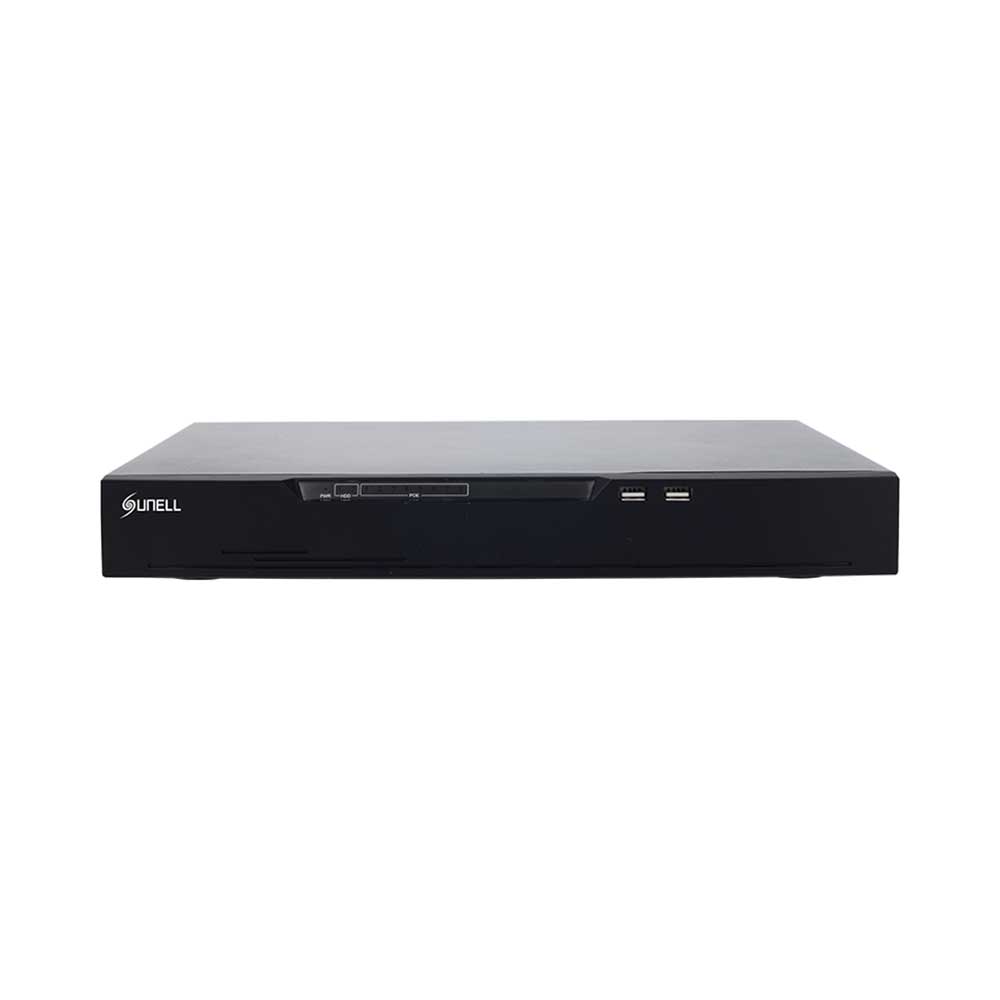

SUNELL NVR 8CH, 2 BAY, 1X LAN, 8X POE, H.265

FEATURES • Up to 8ch IP cameras access • Easy to use Same Interface of GUI/WEB/Client • 2 SATA hard disk up to 8TB • 1 RJ45 10M/100M network interface • 8CH POE Ports • Simultaneous HDMI & VGA up to 4K output • 2 x 2.0 USB Host • 8ch Alarm In/1ch Alarm Out • 1ch Audio I/O SPECIFICATIONS System • Main Processor: Dual-Core Embedded Processor • Operating System: Embedded LINUX Video and Audio • IP Camera Input: 8 Channel • Audio I/O: 1/1, RCA • Two-way Talk: Yes Display • Interface: 1 HDMI, 1 VGA • Resolution: HDMI: 3840×2160, 1920×1080, 1440×900, 1280×1024 • Resolution: VGA: 1920×1080, 1280×1024, 1280×720 • Decoding Capacity: 1ch 8MP/4ch 1080p @30fps • Multi-Screen Display: 1/4/9 Recording • Compression: H.265+/ H.265/H.264+/H.264 • Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/720p/D1 • Record Rate: 80Mbps • Bit Rate: 100Kbps ~ 6Mbps Per Channel • Record Mode: Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in • Record Interval: Post-record: 30 ~ 60 sec Video Detection and Alarm • Trigger Events: Recording, Buzzer, Push Message, Popup Message. • Video Detection: Motion Detection, Video Loss, Camera Tamper • Alarm In/Out: 8/1 Playback and Backup • Sync Playback: 8/4/1 • Search Mode: Time /Date, Alarm, Picture Grid, Event • Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom • Backup Mode: USB Device Network • Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP • Max. User: Access 9 Users • Smart Phone: iPhone, iPad, Android • Interoperability: ONVIF, SDK, CGI Storage • Internal HDD: 2 SATA Ports, up to 8TB for each HDD • eSATA: N/A Interface • Interface: 1 RJ-45 Port (10/100Mbps) • PoE Interface: 8ch 100Mbps, IEEE 802.3af • PoE Max. Power: 80W • USB Ports: 2× USB2.0 General • Power Supply: DC48V/2.5A • Power Consumption: <5W (without HDD) • Operating Conditions: -10°C ~ 50°C • Storage Conditions: Less than 90% RH • Certifications: CE/FCC • Dimensions (L × W × H): 372 × 310.5 × 46.5mm • Net Weight: 2.1kg (No disk)
