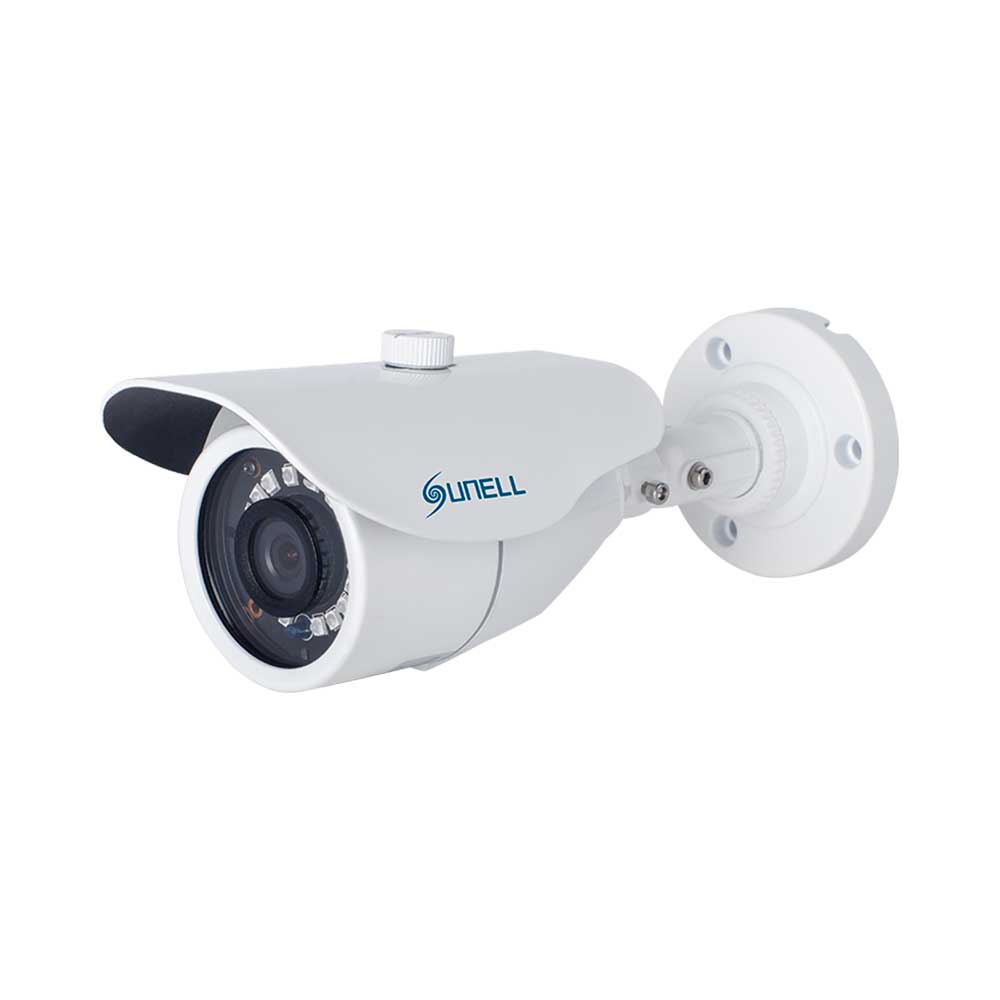

SUNELL AHD/TVI/CVI/CVBS ANALOGUE BULLET 2MP

FEATURES • 1/2.9" Progressive Scan CMOS • 3.6mm Lens • HD 1080P • Video Transmission 300m • IR Range up to 20m • 3D DNR, dWDR, ICR, BLC, GLOBAL, AWB, Privacy Masking, Motion Detection • Support AHD/TVI/CVI/CVBS Output • IP66 SPECIFICATIONS • Camera Image Sensor: 1/2.9" Progressive Scan CMOS • Effective Pixels: 1920(H) x 1080(V) • Scanning System: Progressive • Electronic Shutter: Auto, PAL 1/50-1/50000s, NTSC 1/60-1/60000s • Min. illumination: ColoUr 0.01Lux @(F1.2,AGC ON), B/W 0Lux @(IR LED ON) • S/N Ratio: More than 48dB • IR Range: up to 20m • IR On/Off Control: Auto/Manual • IR LEDs: 18pcs • OSD Joystick: N/A • Up the Coax: Support • Pan/Tilt/Rotation Range: Pan 0˚~360˚, Tilt 0˚~90˚, Rotation 0˚~360˚ Lens • Lens Type: Fixed • Iris: Fixed Iris • Focal Length: 3.6mm • F Number: F2.0 • Angle of View: 85° • Focus Control: Fixed • Close Focus Distance: 0.5m Video • Resolution: 1080P (1920×1080) • Frame Rate: PAL 25fps, NTSC 30fps • OSD Menu: Support • Wide Dynamic Ranged: WDR, OFF/ON • Gain Control: Auto/Manual • Noise Reduction: DNR, AUTO/MANUAL (1-10) • White Balance: Auto • BLC: Support • Mirror: N/A • Motion Detection: Support • Privacy Masking: Support General • Power Supply: DC12V ±10% • Power Consumption: Max. 3W (12V DC, IR ON) • Operating Temperature: -10~55°C • Operating Humidity: Less than 85% RH • Ingress Protection: IP66 • Certifications: CE/FCC • Casing: Metal • Dimensions: 176 × 69 × 65mm • Net Weight: 300g
