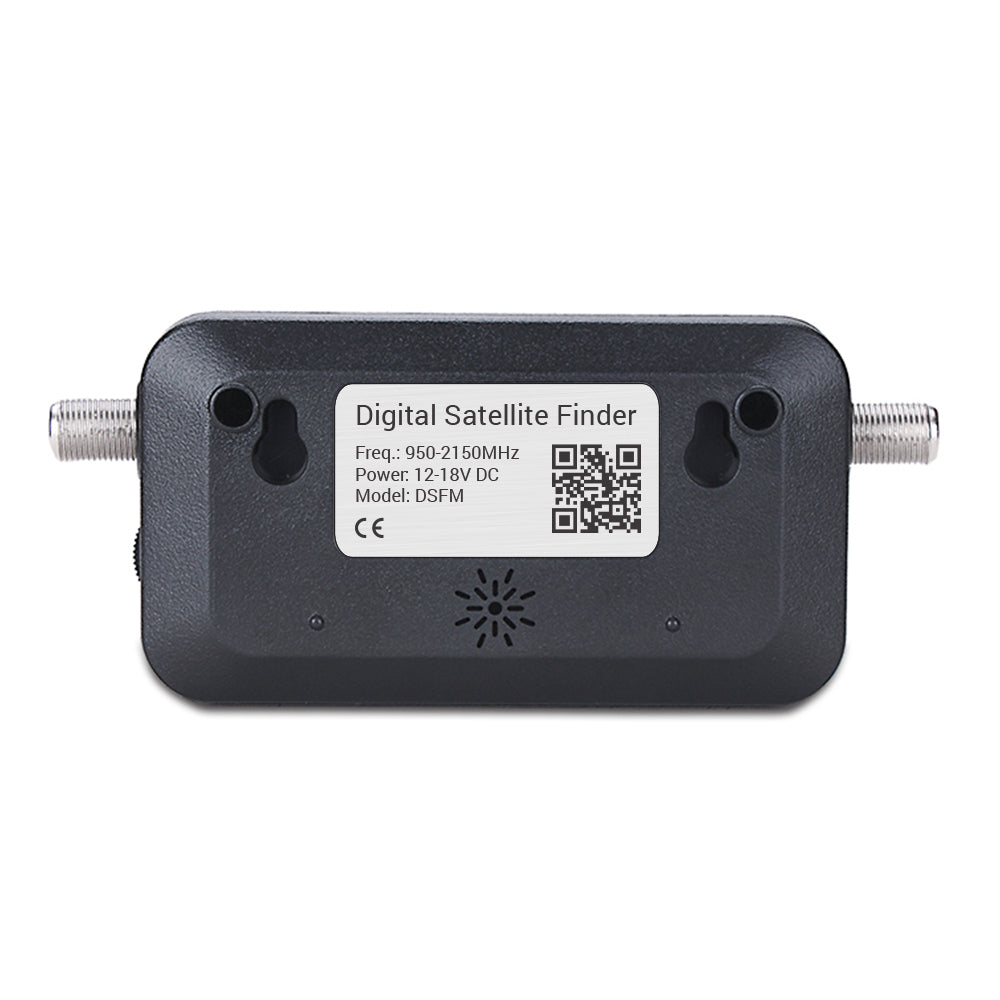

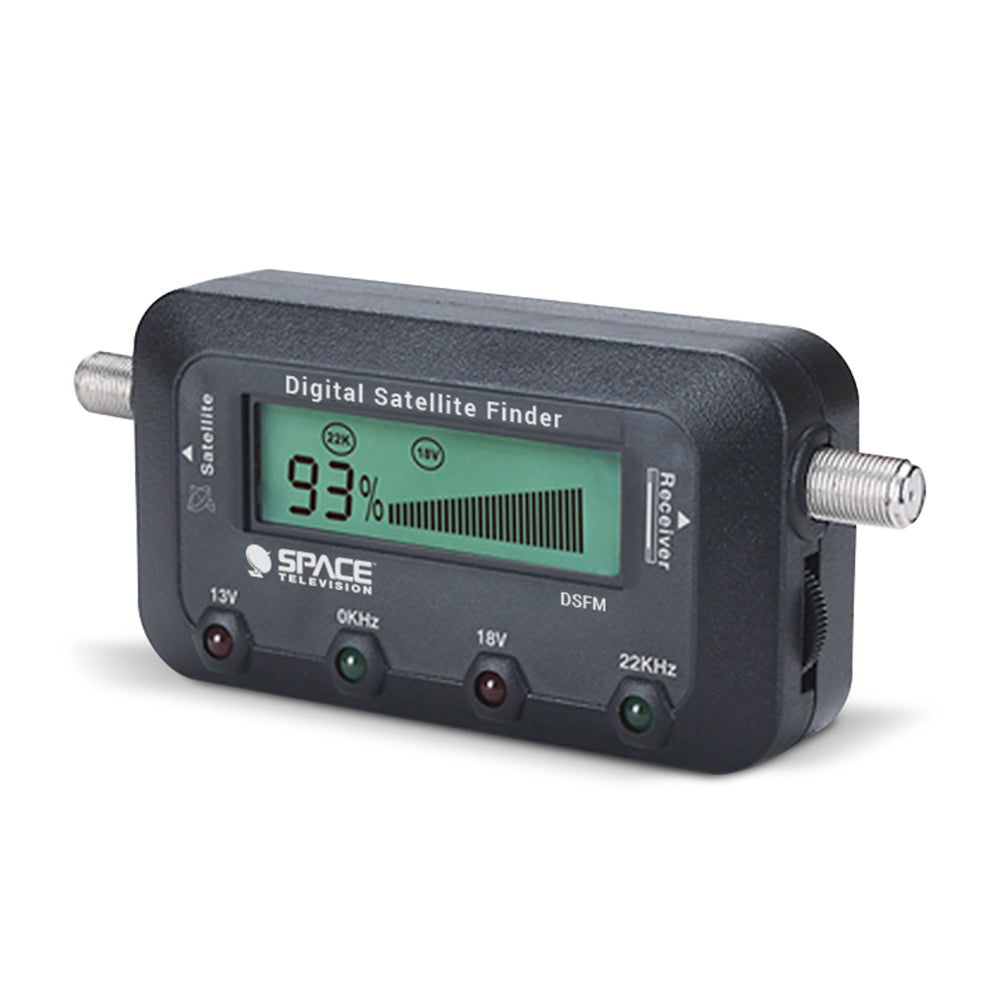

SpaceTV Digital Satellite Finder (DSFM)

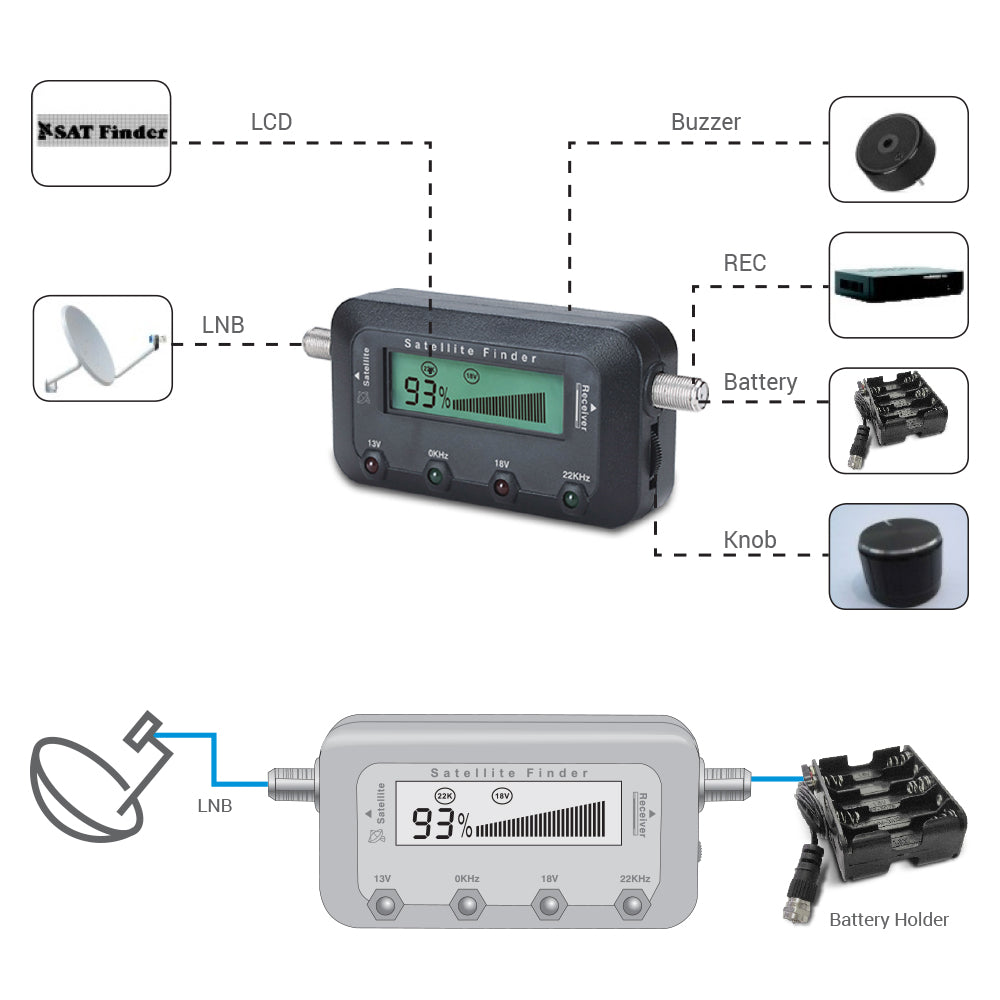

SpaceTV Digital in-line IF signal strength meter assists to align any satellite dish for optimum reception.

FEATURES：
• LCD display
• DC pass to LNB
• In-line IF signal strength meter
• Button operation

IMPORTANT NOTES:
• To avoid a continuous full scale reading, do not use the Satellite Finder directly in front of the dish.
• When using a LNB with gain higher than 60dB inserts a 5dB attenuator between the LNB/LNBF and the Satellite Finder.

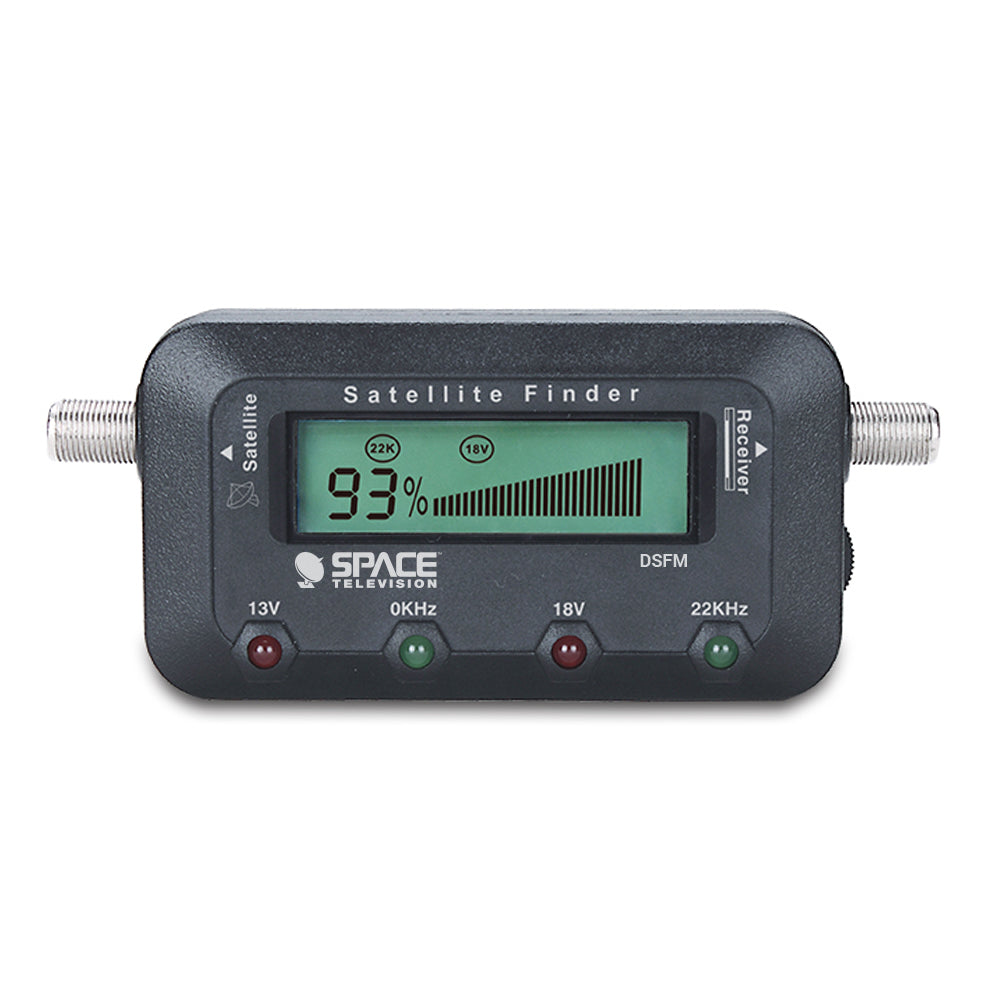

The Satellite Finder has optional 4LED on the front panel indicating:
A) LED marked with 22KHz: The receiver is sending a 22KHz signal, used to switch some LNB to the high band frequency.
B) LED marked with 0Hz: The receiver does not send the 22KHz signal.
C) LED marked with 13V: Indicating the satellite receiver is switching 13V power to switch the LNB’s vertical polarization.
D) LED marked with 18V: Indicating the satellite receiver is switching 18V power to switch the LNB’s horizontal polarization.
