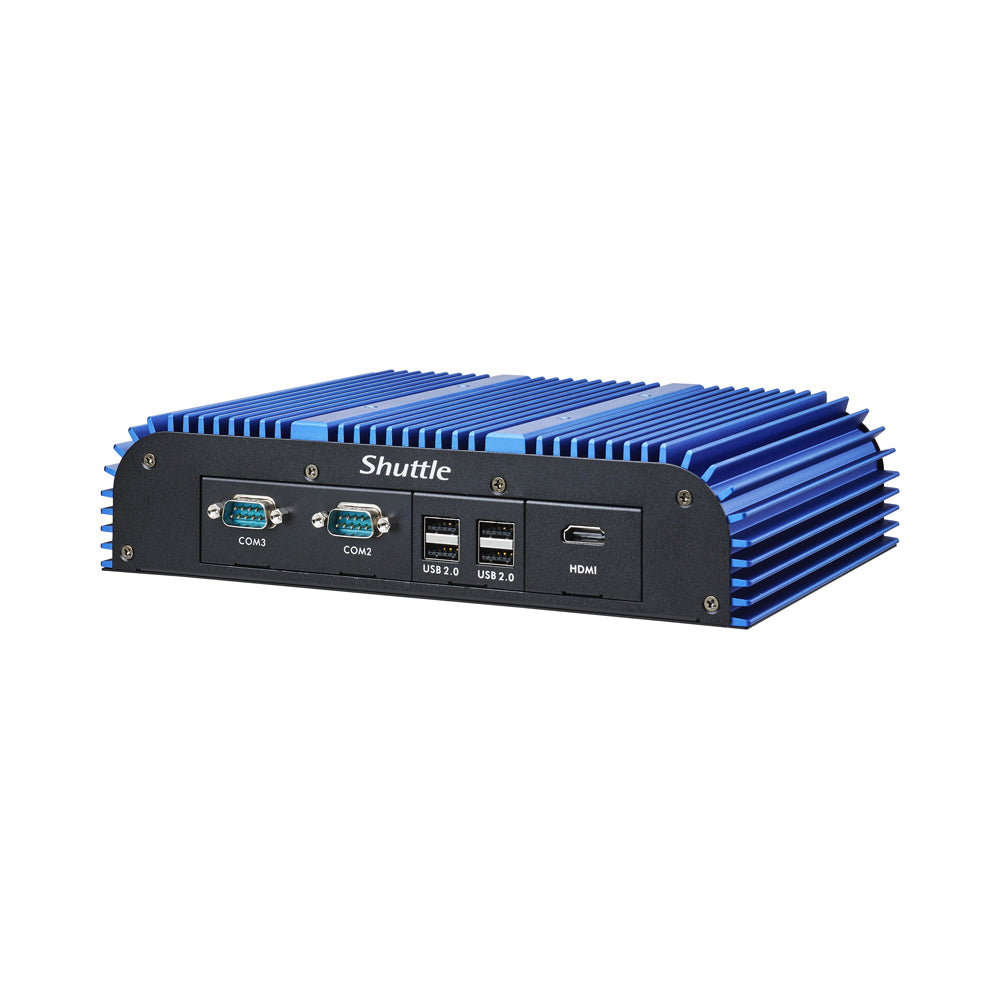

SHUTTLE BPCAL02 I5 CPU, 2.5G LAN, DDR5 - BAREBONE

FEATURES • Dual 2.5 Gigabit Ethernet • Mounting Options: VESA, Ear mount and DIN rail • Fanless cooling system • 24/7 Operation • Robust aluminium/steel chassis • Up to 64GB RAM SPECIFICATIONS SYSTEM • Processor: 12th Gen. Intel Alder Lake Core • Optional: i5-1235U, i5-1245UE, i7-1255U, i7-1265UE, Celeron 7305E • Memory: 2x 262-Pin SODIMM, up to 64GB • Dual Channel DDR5: 4800MHz • BIOS: AMI UEFI 64Mbit GRAPHICS • Display Interface: 2x HDMI 2.0b: 4096 x 2160 @60Hz • Display Output Max: 4x Independent or Clone - Configuration Dependent AUDIO • Audio Codec: Realtek ALC888s-VD 2-Channel NETWORK • Ethernet: 2x Intel 2.5GB LAN • WLAN: Intel Wi-Fi Module (802.11 a/b/g/n/ac) and BT 5.0 (Optional) • Realtek RTL8821CE: 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN Card M.2 2230 E-Key (Optional) • External Antenna: 2x Dipole (Optional) I/O INTERFACE • LAN: 2x RJ45 (10/100/1000Mbps / 2.5GB) • Supports: Wake-on-LAN • Serial Ports: 1x RS232 (DB9) • 2x RS232 / 422 / 485: (DB9) (RS232 with Power Supply: Ring in / 5V (Standard) and 12V (with Specific Optional Board)) • USB: 4x USB3.2 Gen 2 (Type-A) • USB: 4x USB2.0 (Type-A) • Audio: 1x Line-Out • Audio: 1x Mic-In POWER • Type: 19V (without Wide Range Board) • Wide Range Board: Motherboard Support 9~36V DC-in • Adapter: BPCAL02: 19V/4.74A 90W external adapter OPERATING SYSTEM • OS Support: Windows 10 / 11 IoT 64bit • Linux: 64bit MECHANISM • Mounting: VESA Mount 75 x 75 • Ear Mount: 256 x 100mm • Din Rail Mount: 35mm • Dimensions (W x H x D): 245 x 57 x 169mm • Weight: 2.85kg • Operating Temperature: 0~40°C • Storage Temperature: -20~80°C • Relative Humidity: 10~90% RH (Non-Condensing) • EMC: CE, FCC, VCCI, BSMI • Safety: cTUVus, CB, CEC, BSMI
