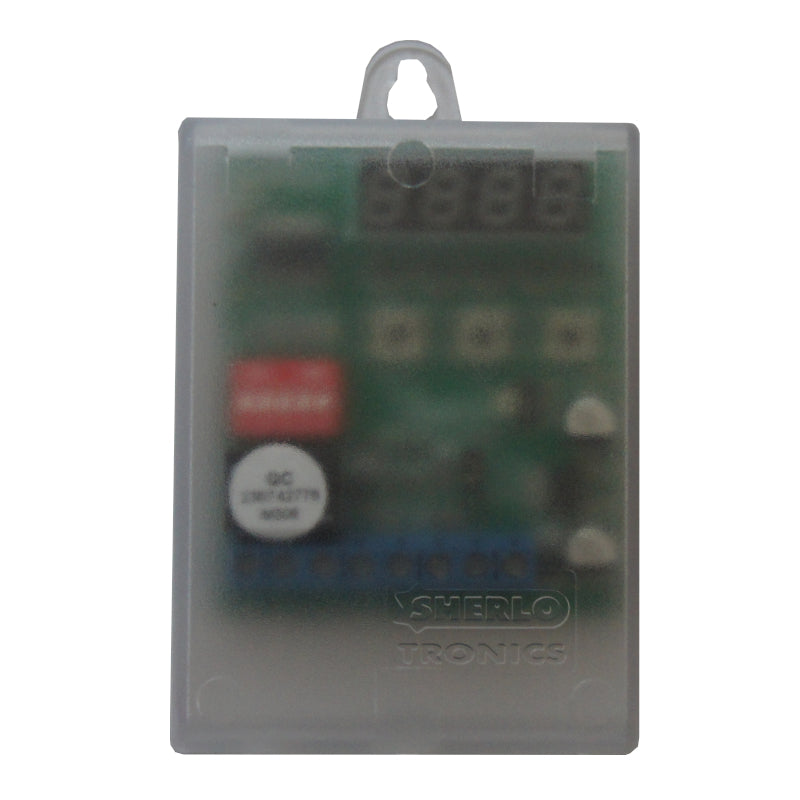

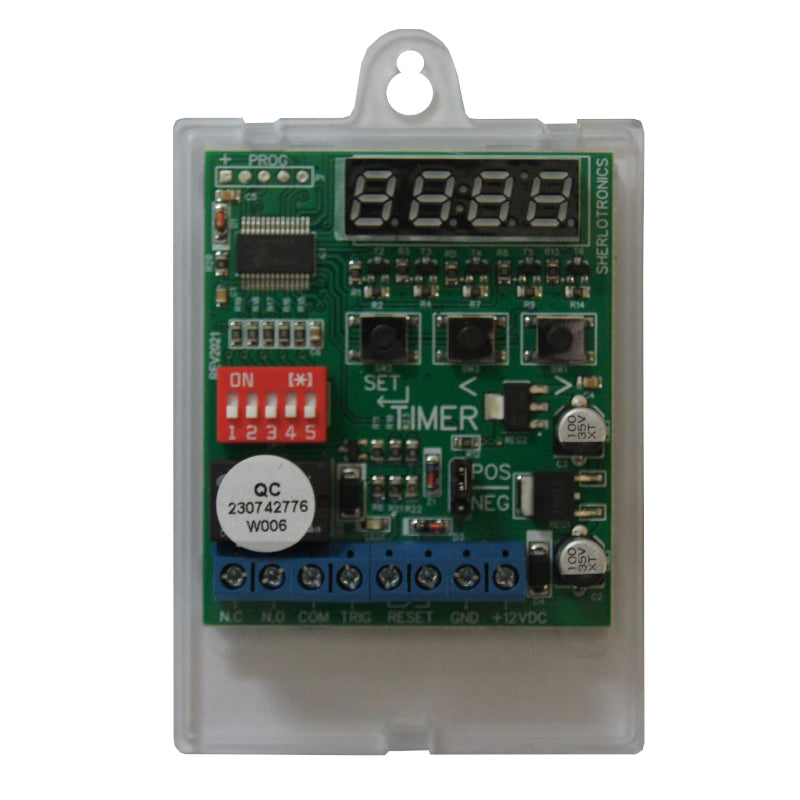

Sherlotronics Sherlo Digital Timer

Sherlo Digital Timer has a variety of applications and functions are visualized for this product and with a bit of imagination the unit will solve various security installation issues.

Applications:
The Timer can be programmed with 10 different functions.
Module can be used for customizing siren output times, beam bypass, guard awake and auto gate & garage door closure applications.

Features:
Timed Relay output from 1 second to 59 minutes & 59 seconds
Timed Relay output from 1 Minute to 23 hours
Auto garage door closure
Guard awake timer
Pulse stretcher
Counter
Count down trigger output
False alarm prevention
Momentary to Latching

Specifications:
Power input range: 10V ~ 14V DC
Functions: 1 second to 59 minute timer output
1 minute to 24 hours timer output
Auto door closure
Guard awake timer
Pulse stretcher
Counter
Count down trigger output
False alarm prevention
Momentary to latching
1 second to 59 minute timer re-triggable
Trigger Input: Positive / Negative
Reset Input: Normally Open potentially free
Relay output Load @ 12V DC: 1AMP
Dimensions: 52 X 65mm (PCB)
