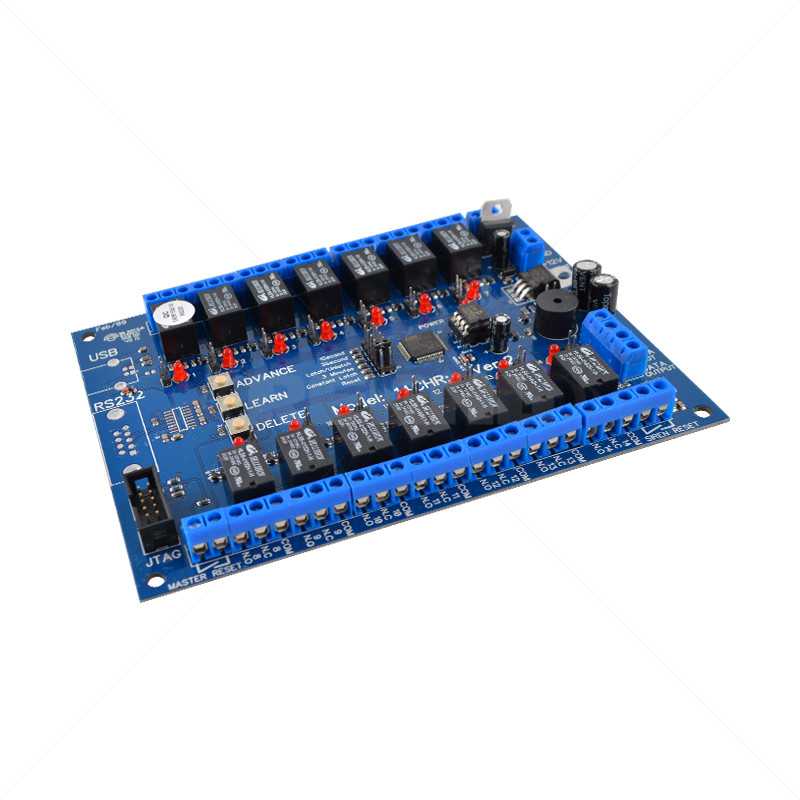

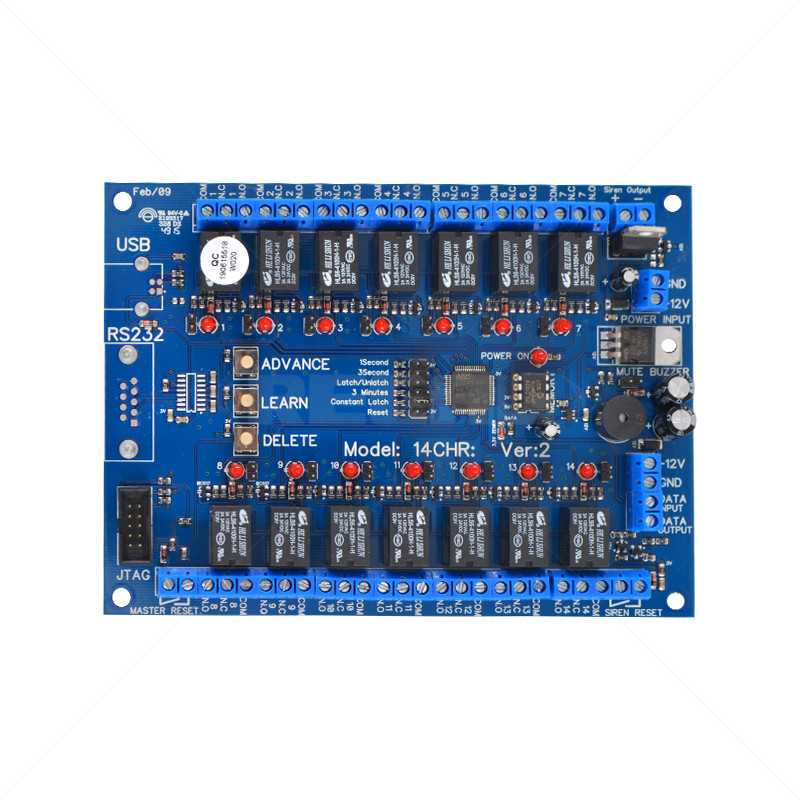

Sherlotronics Sherlo 14 Channel Module 64 User

Sherlotronics Sherlo 14 Channel Module 64 User

Key Features

• 14 Channel receiver relay expander module code-hopping
• Needs to be wired to a data receiver
• 14 x 1A Relay outputs
• 64 x Remotes per Channel
• 1 sec, 3 sec Latching
• 3 min Constant Latch programmable relays
• Hardwired Reset
• Siren output
• LED Outputs with 1k Resistors on-board
• Encryption : Code-Hopping
• Operating Temp : -3°C to 65°C
• Input Voltage Range : 12 – 24V
• Relay Contact Rating : 1A
• Memory Capacity: 64 Remotes per Channel
• Outpu

Product Specifications

• Brand: Sherlotronics
• Part Number: SW88-1
• Manufacturer Code: 14CHR-V2
• Category: Remotes and Receivers > Accessories > Remote Module
