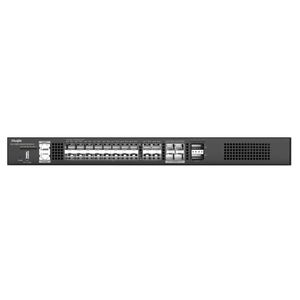

Ruijie RG-CS86-20XS4VS2QXS-D Cloud-Managed Switch

A high-density Layer 3 core and aggregation switch designed for enterprise campus networks, higher education institutions, and small-to-medium business data centers. The Ruijie RG-CS86-20XS4VS2QXS-D provides versatile, high-bandwidth connectivity featuring 20 × 10G SFP+ ports, 4 × 25G SFP28 ports, and 2 × 40G QSFP+ high-speed uplinks.

Engineered for network resilience and zero downtime, it supports Ruijie Virtual Switching Unit (VSU) technology to combine multiple physical switches into a single logical device. Built-in hardware redundancy includes 1+1 hot-swappable power supply slots, pluggable modular fans with front-to-rear airflow, dual Flash boot chips, and advanced CPU Protection Policies (CPP/NFPP) against malicious traffic attacks.

Key Features

• High-Density Uplink Density: Features 20 × 1GE/2.5GE/10GE SFP+ ports, 4 × 10GE/25GE SFP28 ports, and 2 × 40GE QSFP+ uplink interfaces (supporting up to 32 × 10GE ports maximum).

• Enterprise Layer 3 Performance: Delivers a massive 760 Gbps switching capacity and 570 Mpps packet forwarding rate for seamless traffic routing.

• VSU Virtualization Technology: Virtualizes multiple physical devices into one logical unit to simplify network topology, eliminate loops, and optimize failover times.

• Hardware-Level Redundancy: Features dual hot-swappable power supply slots (1+1 redundancy) and dual modular pluggable cooling fans.

• Boot & Optical Fault Protection: Dual Flash chips store system boot programs for instant hardware failover, while isolated optical port chips prevent single-port short circuits from taking down adjacent ports.

• Ruijie Cloud Managed: Remote configuration, real-time monitoring, and automated network deployment available via the cloud-management platform.

Typical Applications Ideal for enterprise network cores, high-density aggregation layers in commercial buildings, campus networks, and high-bandwidth CCTV storage backbones requiring 10G/25G/40G fiber infrastructure.

Specifications

• Fixed Interfaces: 20 × 10G SFP+, 4 × 25G SFP28, 2 × 40G QSFP+

• Switching Capacity: 760 Gbps

• Forwarding Rate: 570 Mpps

• Form Factor: 1U Rackmount

• Management Ports: 1 × RJ45 MGMT, 1 × Console Port, 1 × USB Port

• Power Supply: 2 × Modular Power Slots (Requires at least one RG-PA150I-F module)

• Max Power Consumption: 85 W

• Brand: Ruijie Networks

Note: Power supply modules are sold separately—at least one RG-PA150I-F power supply module is required for operation. All 25G SFP28 ports must run at the same speed (either all 10G or all 25G).
