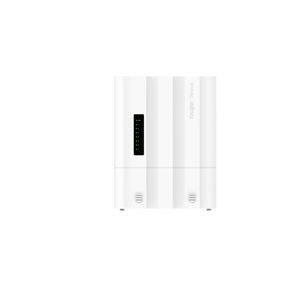

Ruijie Reyee Outdoor 7-Port Gigabit Smart Switch with PoE/DC Input (RG-ES207GS-PI-OD)

An all-in-one outdoor 7-port Gigabit smart switch built for flexible, cabless remote deployments and harsh weather conditions. Unlike standard outdoor units, the Ruijie Reyee RG-ES207GS-PI-OD supports versatile power options via 12V DC input terminal or ultra-high-power PoE In (IEEE 802.3af/at/bt up to 90W) on Port 5, enabling complete switch and connected IP camera operation directly powered from solar systems or upstream PoE switches without dedicated AC power lines.

Equipped with 5 Gigabit RJ45 ports (4 featuring PoE/PoE+ output) and 2 SFP optical ports for long-distance fiber uplinks or ERPS ring topologies, it integrates an IP65 weatherproof casing, internal junction wiring, and high-level surge protection into a single compact housing.

Key Features

• Flexible Dual-Power Options: Operates via 12V DC terminal input or PoE/PoE+/PoE++ In on Port 5, ideal for solar-powered or remote relay setups.

• High-Power PoE Pass-Through Output: 4 × 802.3af/at PoE+ ports deliver up to 60W total budget (when powered via 90W 802.3bt PoE In or 12V DC) to connected IP cameras.

• IP65 Weatherproof Housing: Fully dustproof and water-jet resistant with an operational temperature range spanning from –30°C to +65°C.

• Fiber Uplink & ERPS Ring Support: 2 × 1GE SFP optical ports support ERPS (Ethernet Ring Protection Switching) for resilient, redundant fiber loops.

• Advanced Lightning & Surge Protection: Built-in ±8 kV surge protection on PoE ports guards hardware against voltage spikes.

• Smart CCTV Healing (PoE Watchdog): Automatically detects non-responsive IP cameras and reboots individual PoE ports to restore uptime.

• Ruijie Cloud Managed: Remote status monitoring, topology visualization, and remote port rebooting via the free Ruijie Cloud app or web console.

Typical Applications Ideal for remote outdoor IP surveillance, pole-mounted solar security stations, perimeter fence line monitoring, and commercial park CCTV extensions where external AC mains power is unavailable.

Specifications

• Total Ports: 7 Ports (5 × 10/100/1000Base-T, 2 × 1GE SFP)

• PoE In Port: 1 × Port 5 (IEEE 802.3af/at/bt up to 90W)

• PoE Out Ports: 4 × 802.3af/at (PoE/PoE+)

• PoE Out Budget: Up to 60 W (with 90W PoE++ or 12V DC input)

• Alternative Power Input: 12V DC Terminal Block

• Switching Capacity: 14 Gbps

• Forwarding Rate: 10.42 Mpps

• Ingress Protection Rating: IP65 Weatherproof

• Surge Protection: ±8 kV

• Brand: Ruijie Reyee
